Engine Controls (Diagnostics) (H4DOTC): Electrical Component Location: Location: Engine

Control module

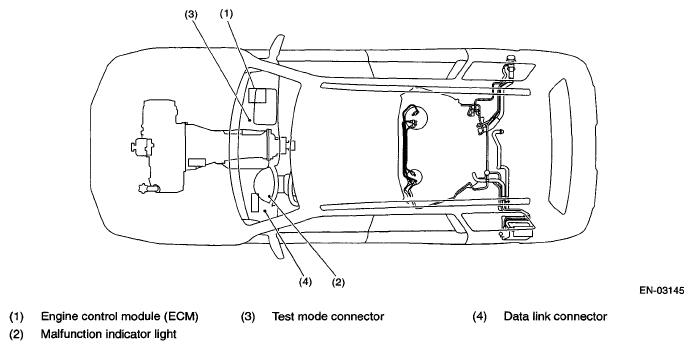

Fig 1: Identifying Engine Electrical (Control Module) Component Location (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Engine Electrical (Control Module) Component Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Sensor

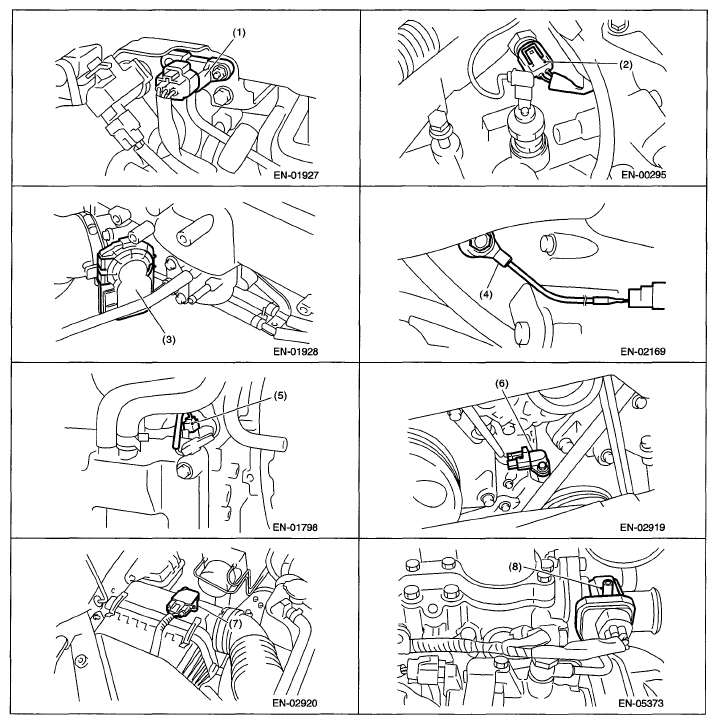

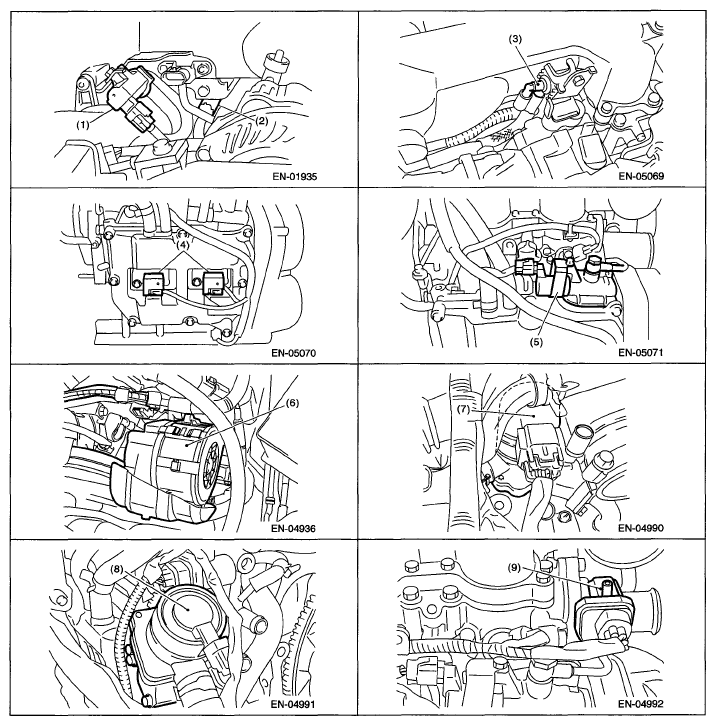

Fig 3: Identifying Engine Electrical Sensor Component Location (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

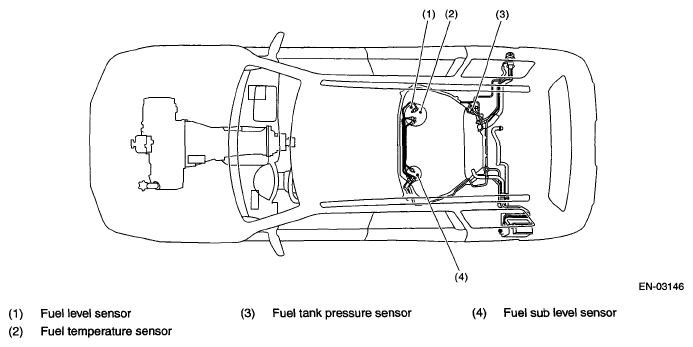

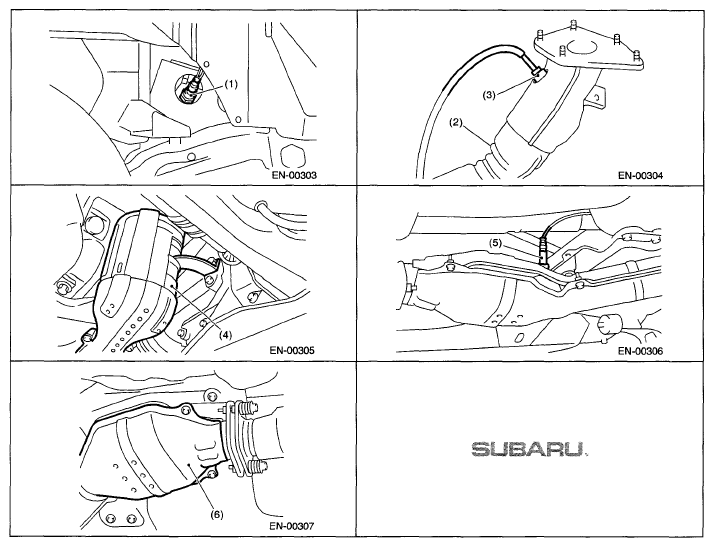

Fig 4: Identifying Engine Electrical Sensor Component Location (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

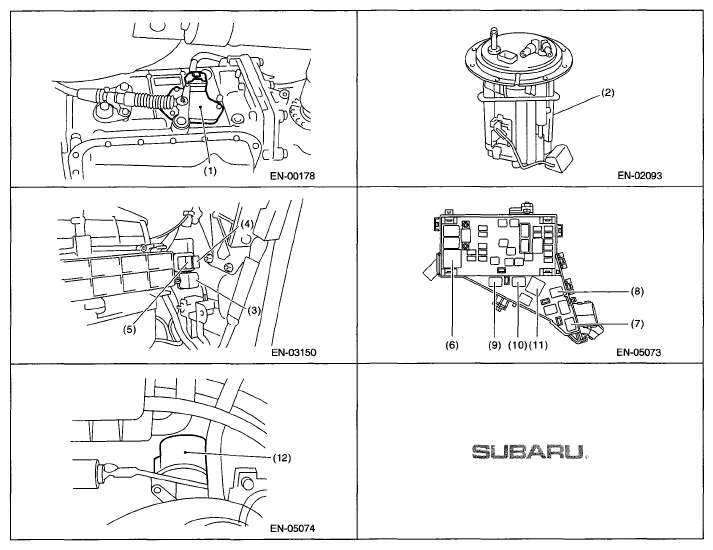

Fig 5: Identifying Engine Electrical Sensor Component Location (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

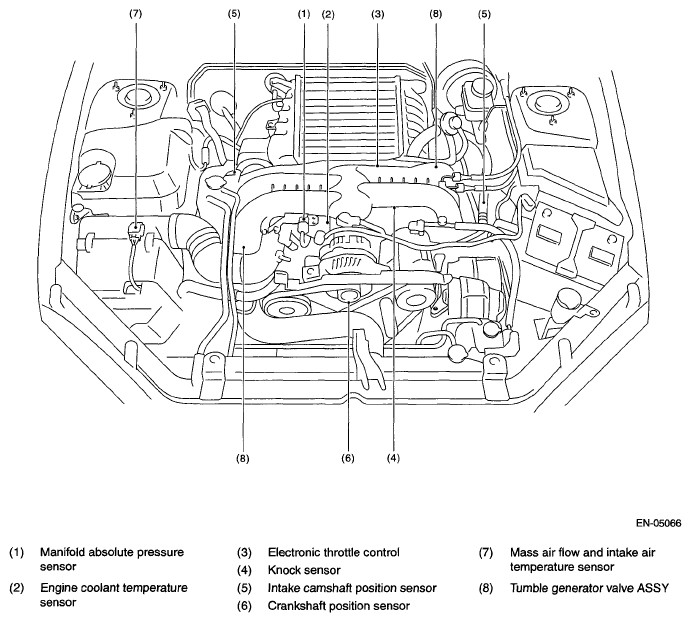

Fig 6: Identifying Engine Electrical Sensor Component Location (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Engine Electrical Sensor Component Location (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Engine Electrical Sensor Component Location (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
Solenoid valve, actuator, emission control system parts and ignition system parts

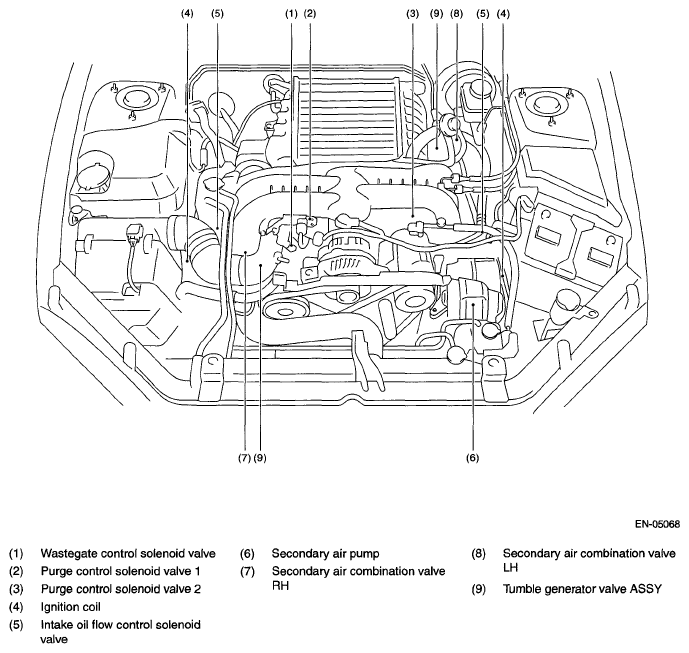

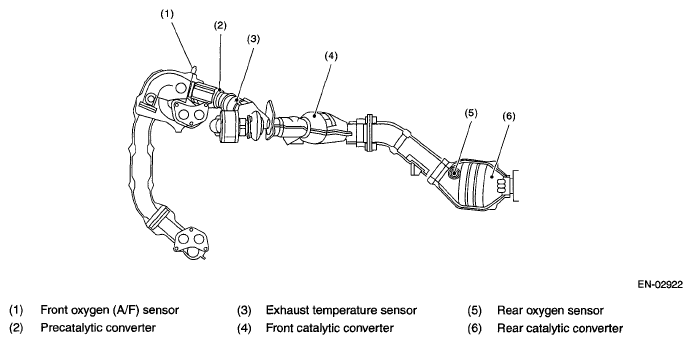

Fig 9: Identifying Engine Solenoid Valve, Emission Control System Parts And Ignition System Parts Location (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

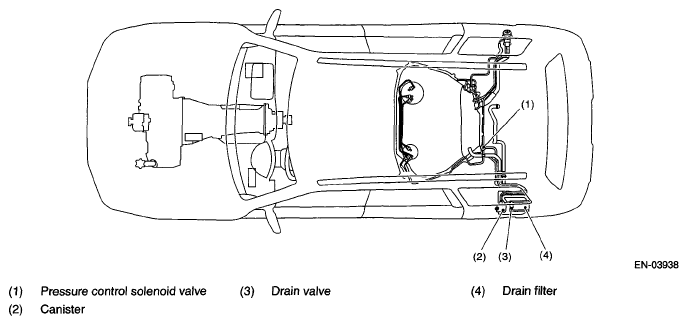

Fig 10: Identifying Engine Solenoid Valve, Emission Control System Parts And Ignition System Parts Location (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

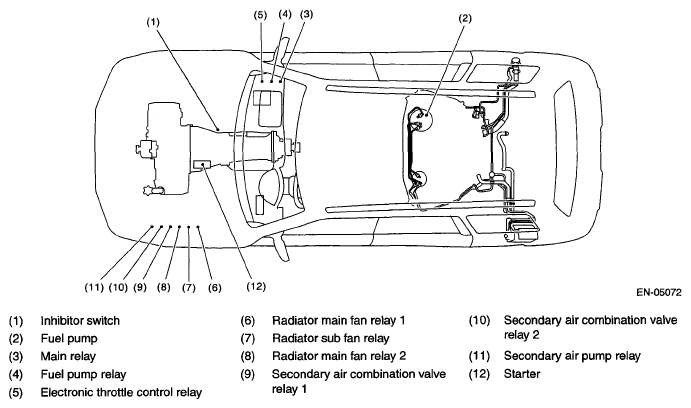

Fig 11: Identifying Engine Solenoid Valve, Emission Control System Parts And Ignition System Parts Location (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Engine Solenoid Valve, Emission Control System Parts And Ignition System Parts Location (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Engine Solenoid Valve, Emission Control System Parts And Ignition System Parts Location (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Engine Solenoid Valve, Emission Control System Parts And Ignition System Parts Location (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
