Judgment Value
MALFUNCTION CRITERIA AND THRESHOLD VALUE REFERENCE
| Malfunction Criteria |
Threshold Value |

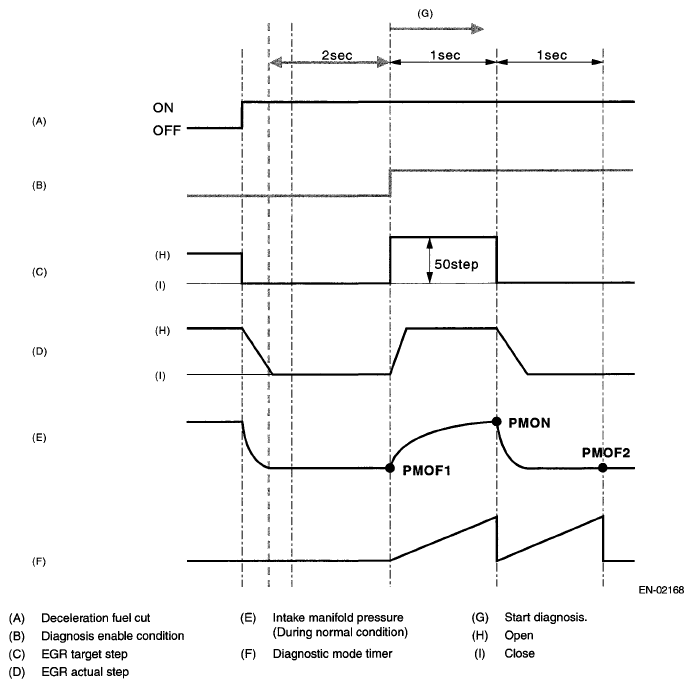

| PMON - (PMOF1 + PMOF2)/2 |
< 2.48 kPa (18.63 mmHg, 0.733 inHg) |
Time Needed for Diagnosis:
1 time
Malfunction Indicator Light Illumination:
Illuminates when malfunction occurs in 2 continuous driving cycles.
Courtesy of SUBARU OF AMERICA, INC.
