Clutch Assembly

5MT non-turbo model

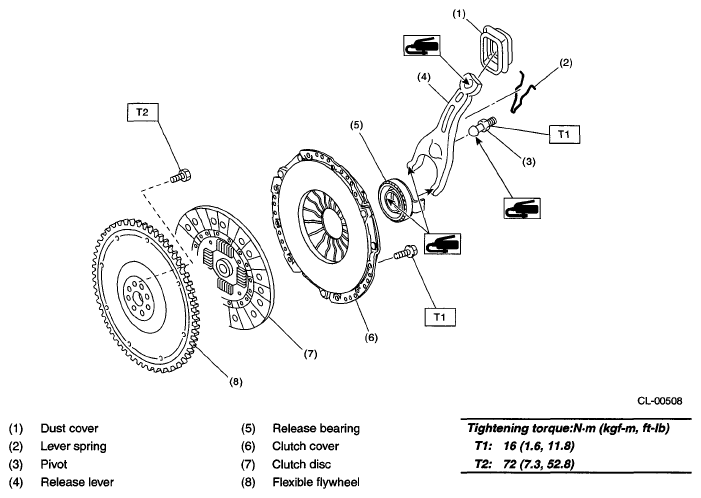

Fig 1: Clutch Assembly Replacement Components With Torque Specifications (5MT Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
5MT turbo model

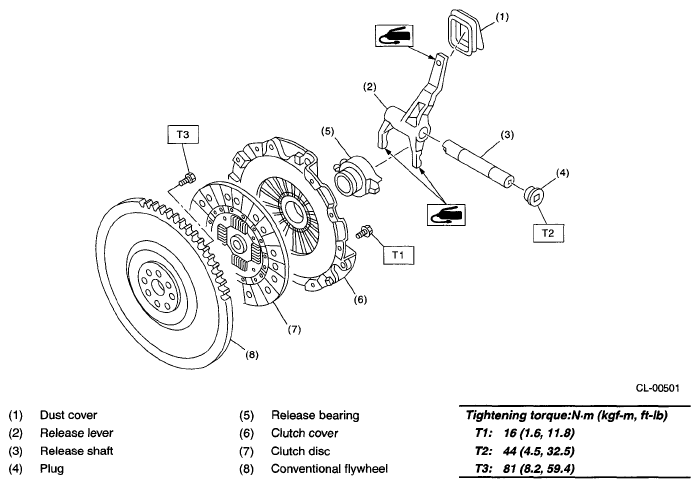

Fig 2: Clutch Assembly Replacement Components With Torque Specifications (5MT Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
6MT model

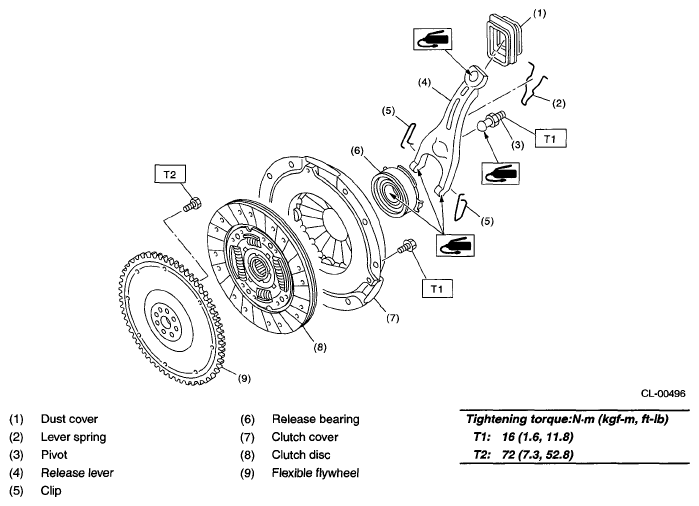

Fig 3: Clutch Assembly Replacement Components With Torque Specifications (6MT Model)
Courtesy of SUBARU OF AMERICA, INC.
