Engine Control Module: Testing and Inspection

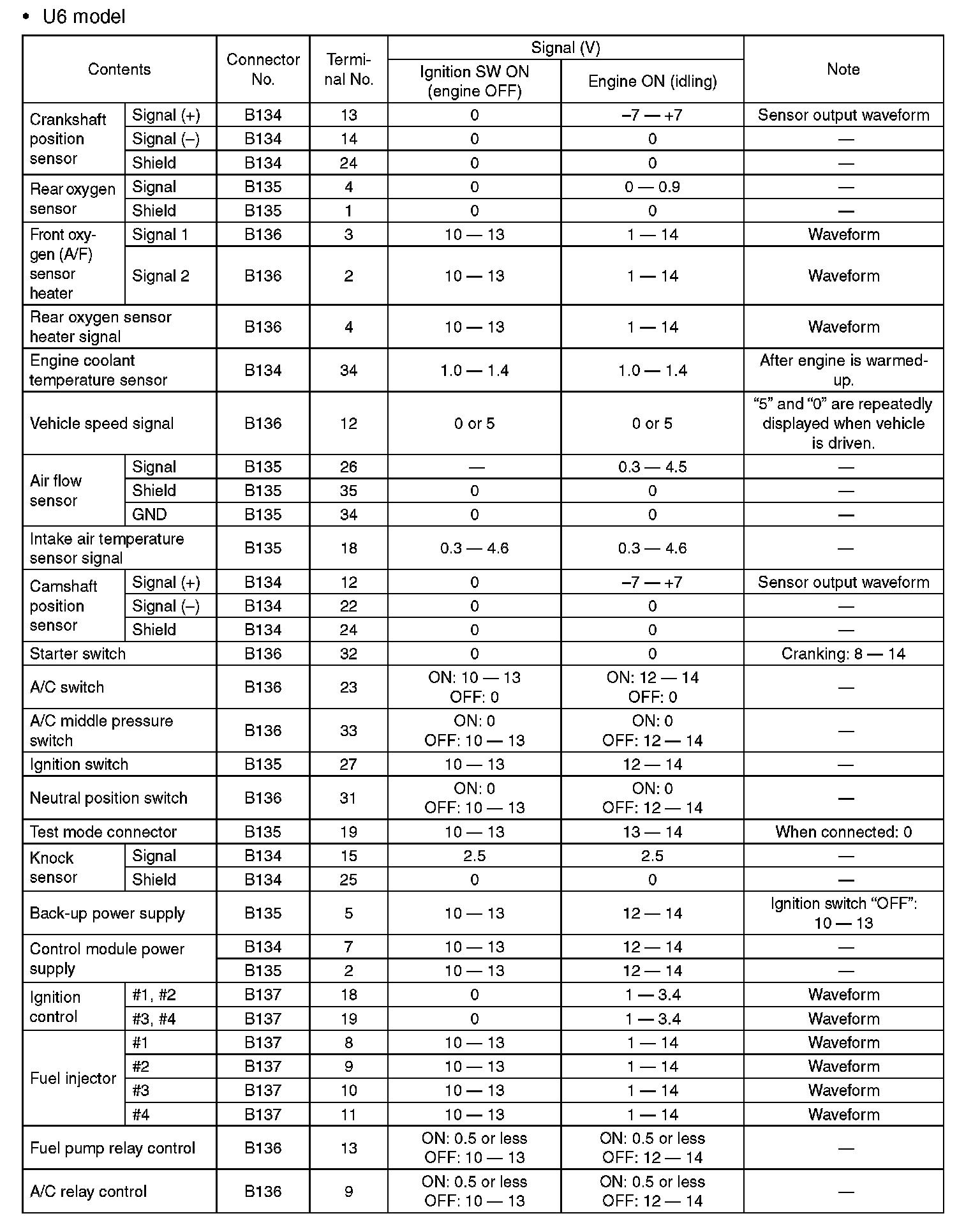

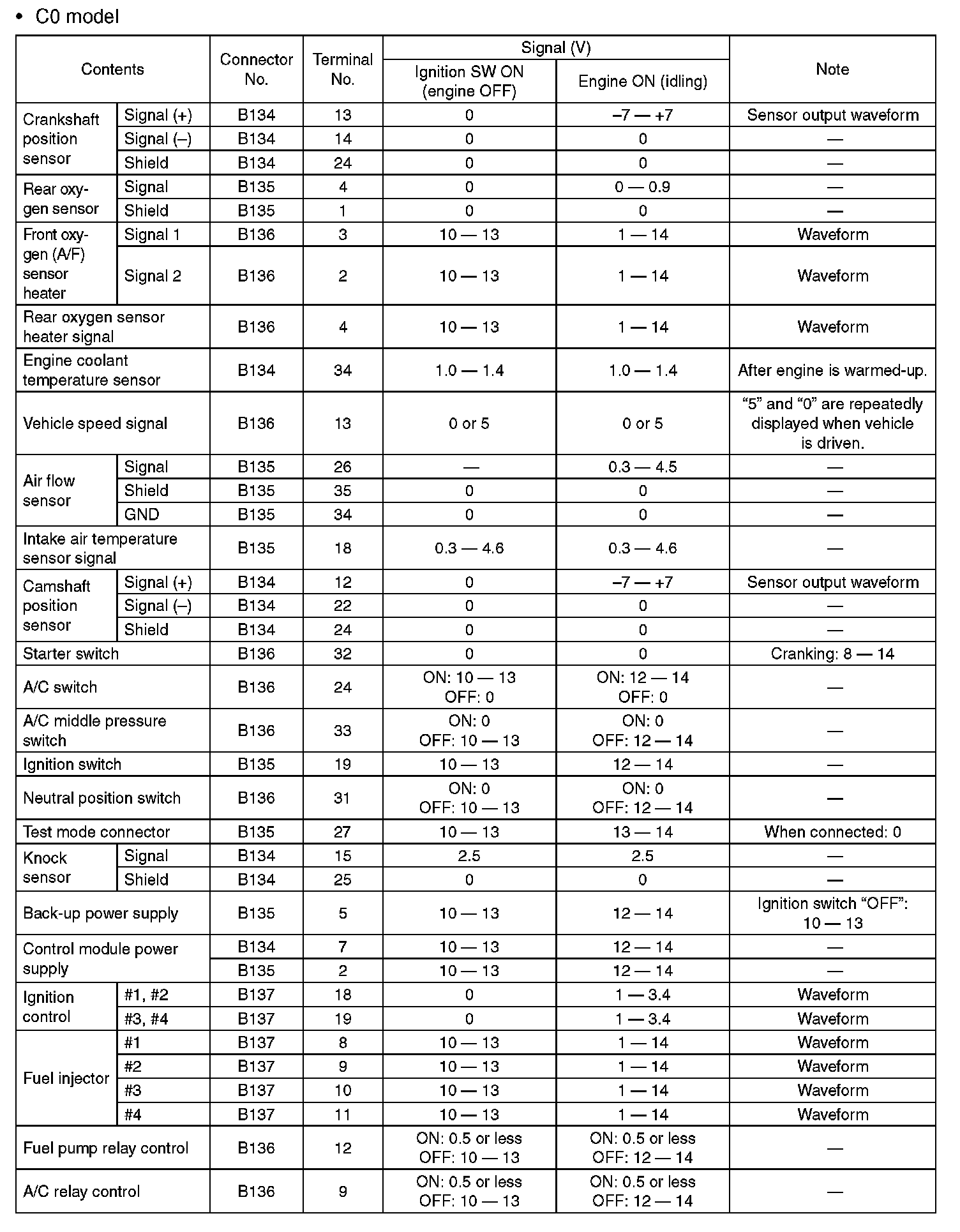

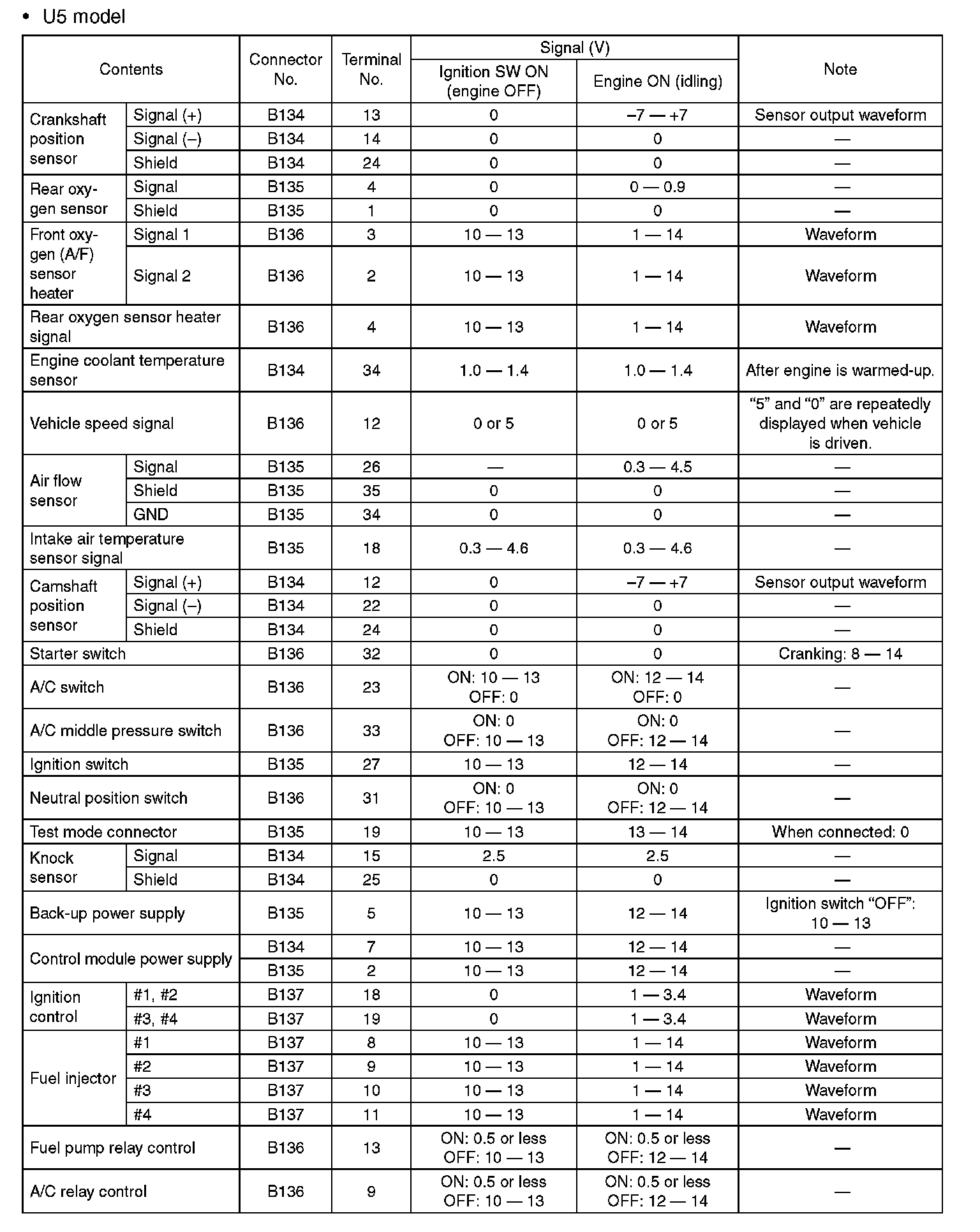

Engine Control Module (ECM) I/O Signal-Electrical Specification:

Part 1:

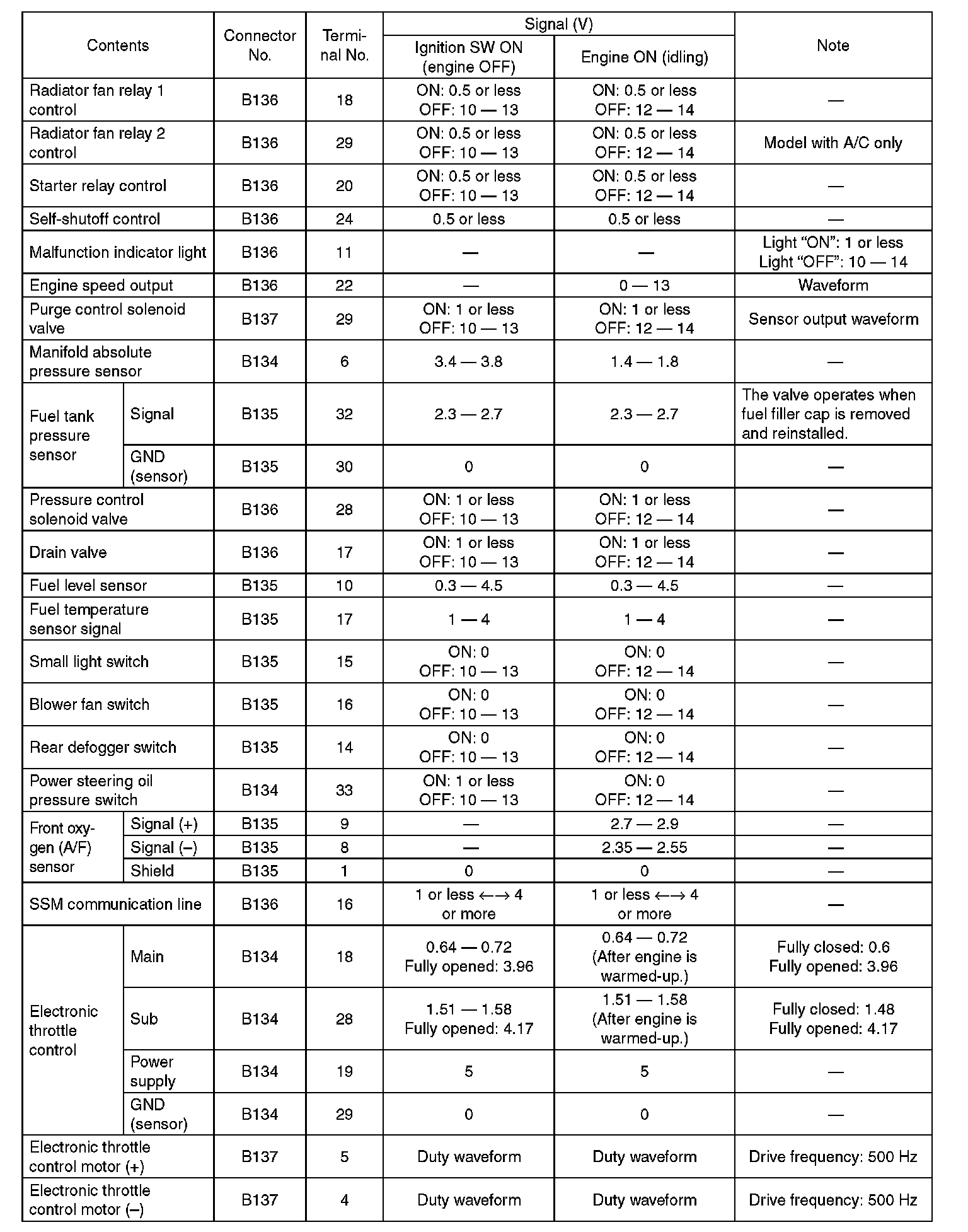

Part 2:

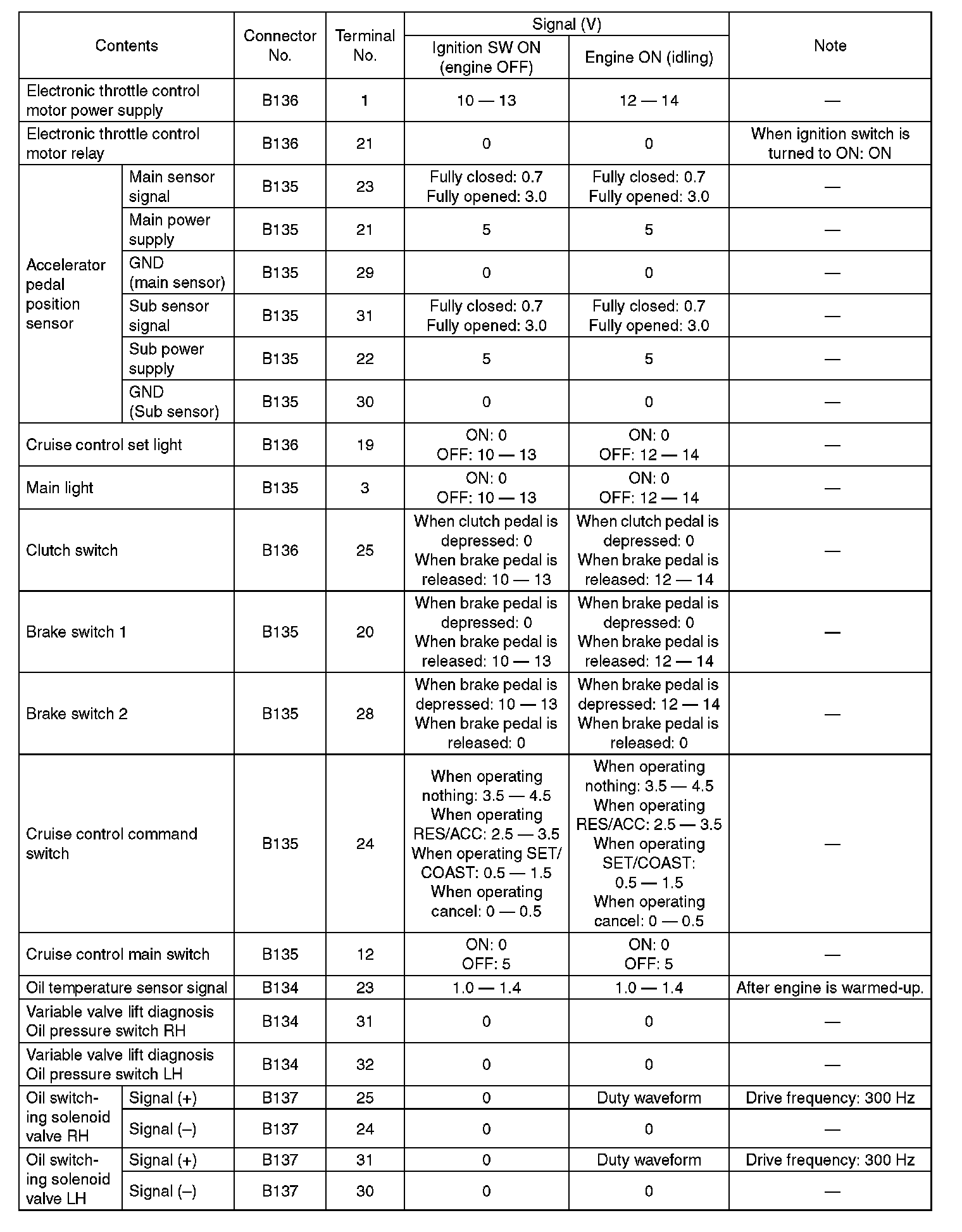

Part 3:

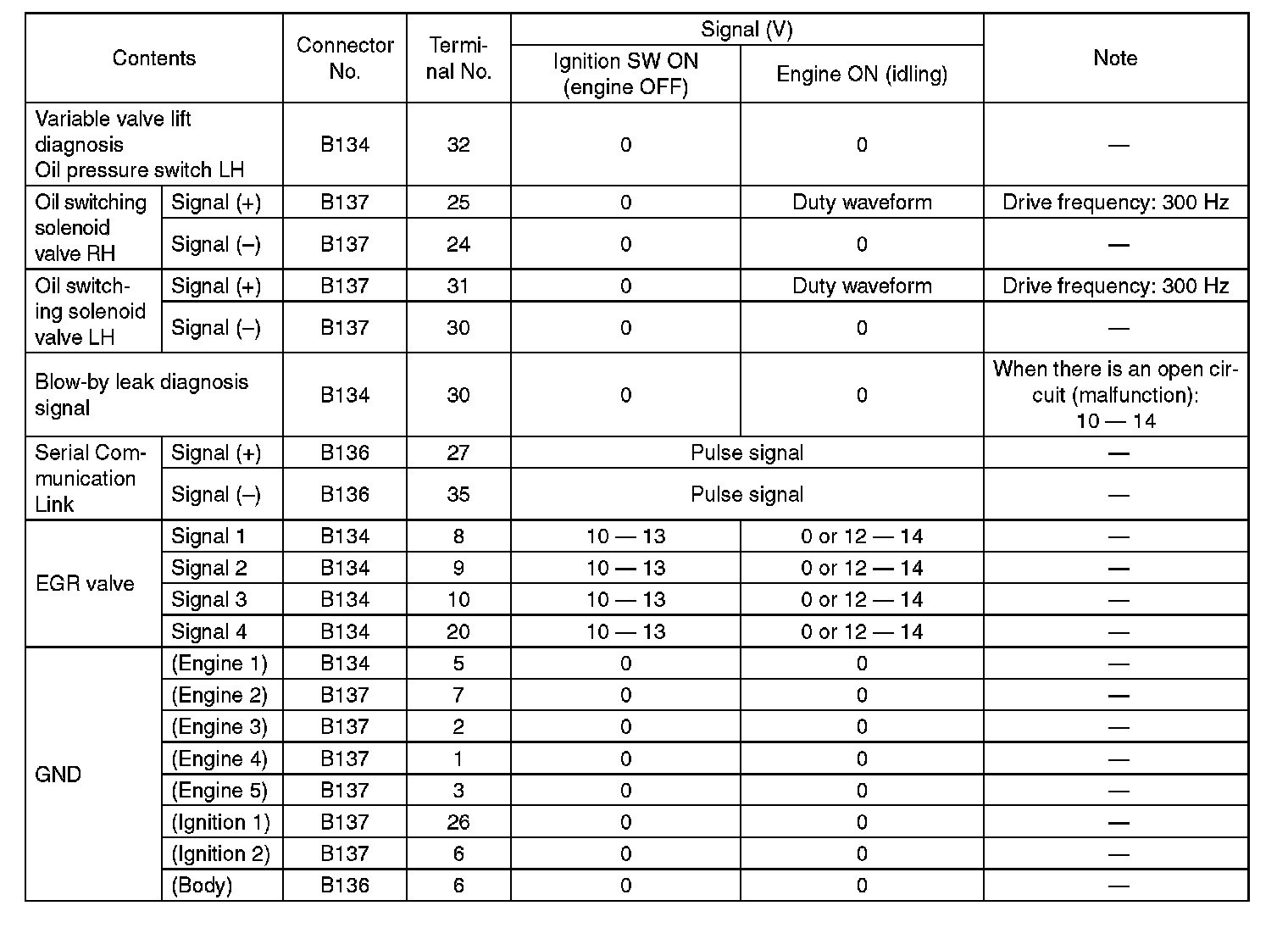

Part 4:

Part 1:

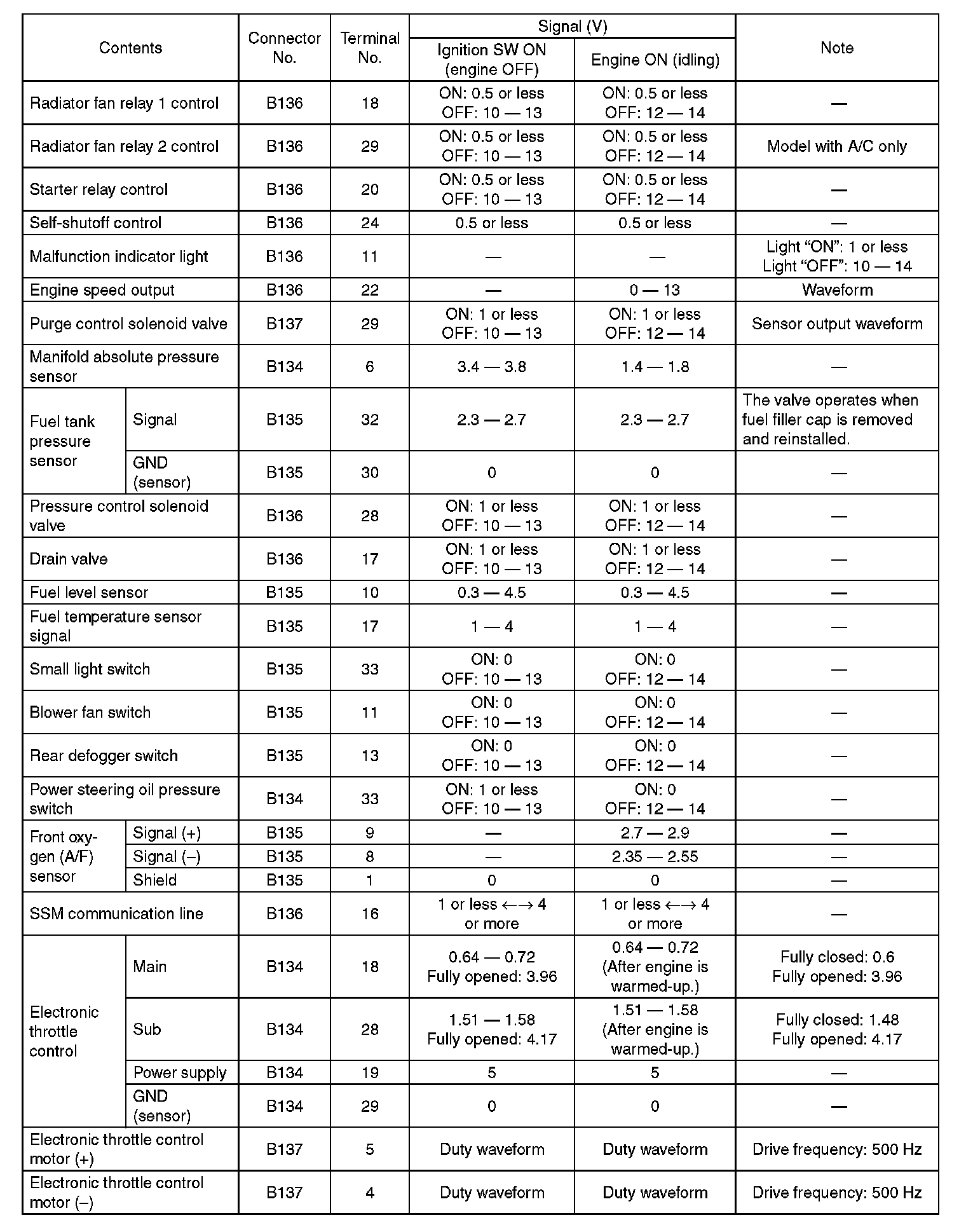

Part 2:

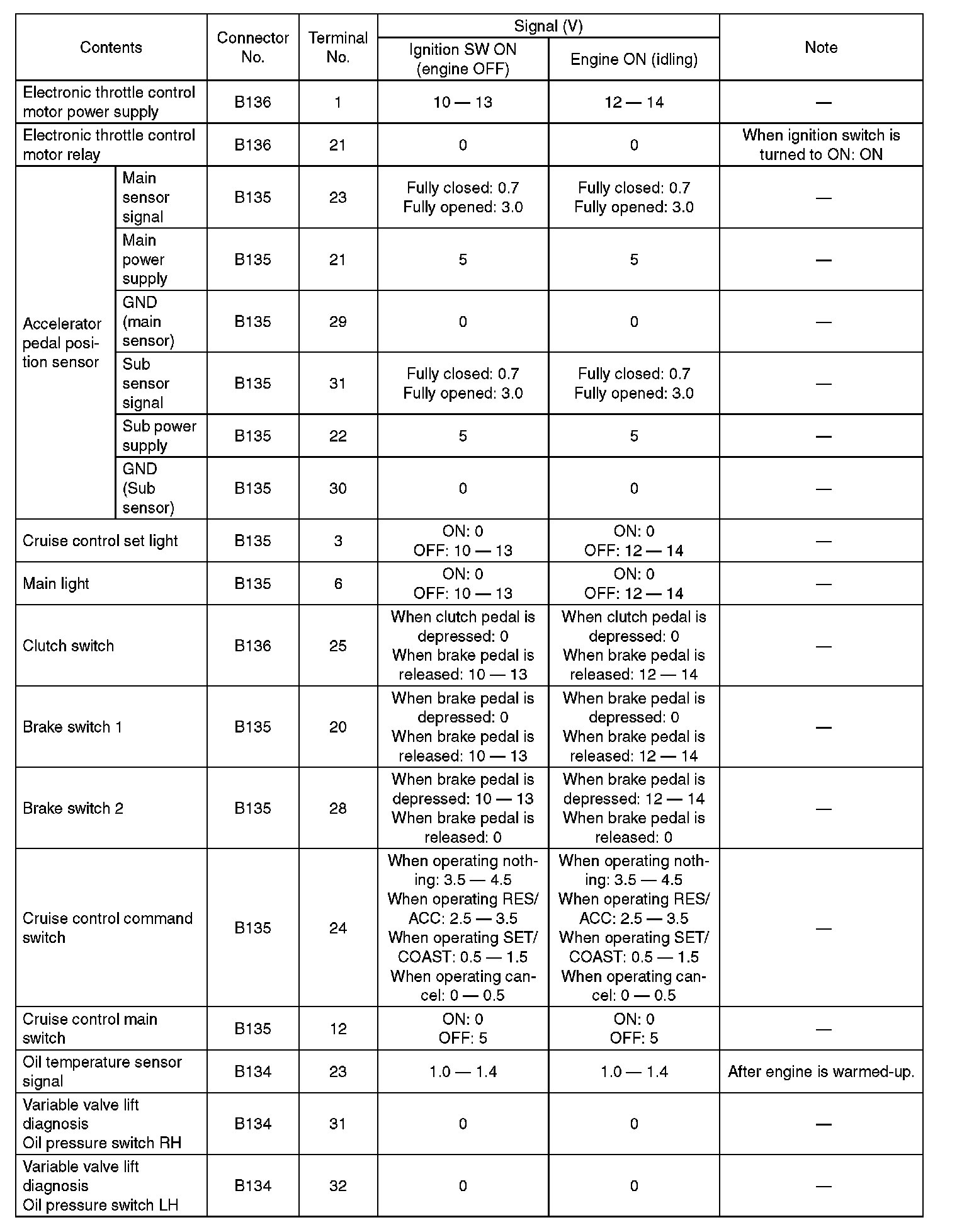

Part 3:

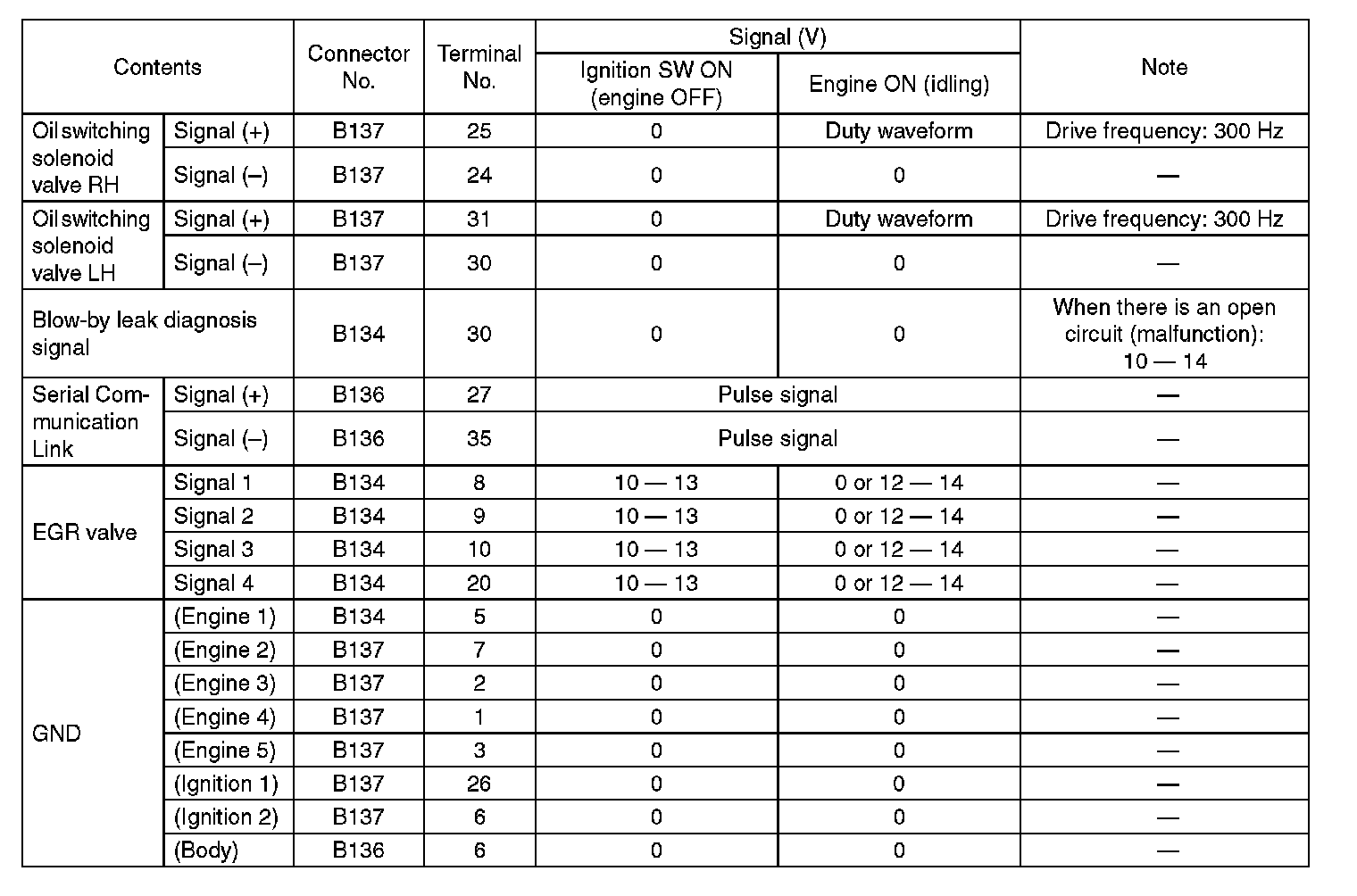

Part 4:

Part 1:

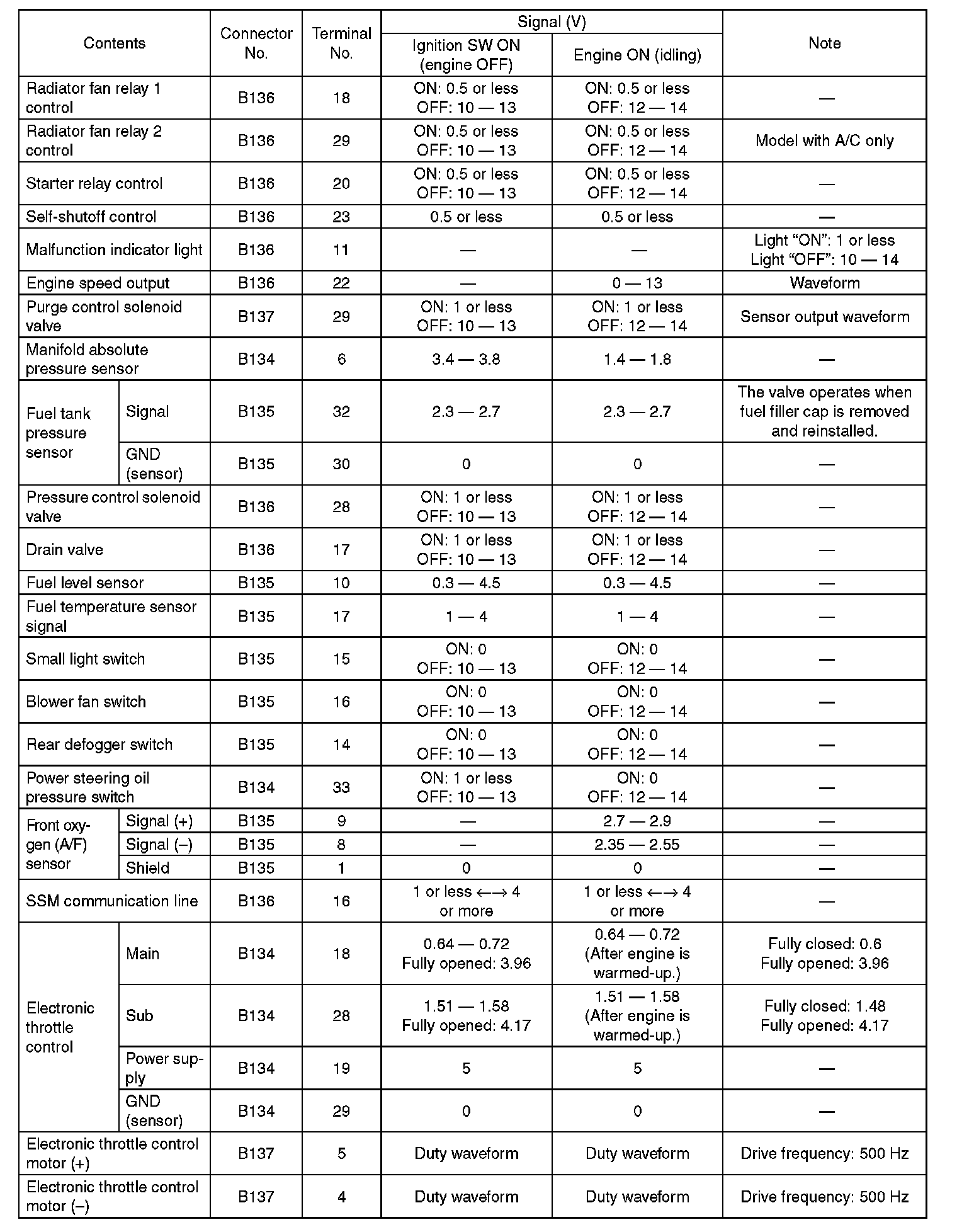

Part 2:

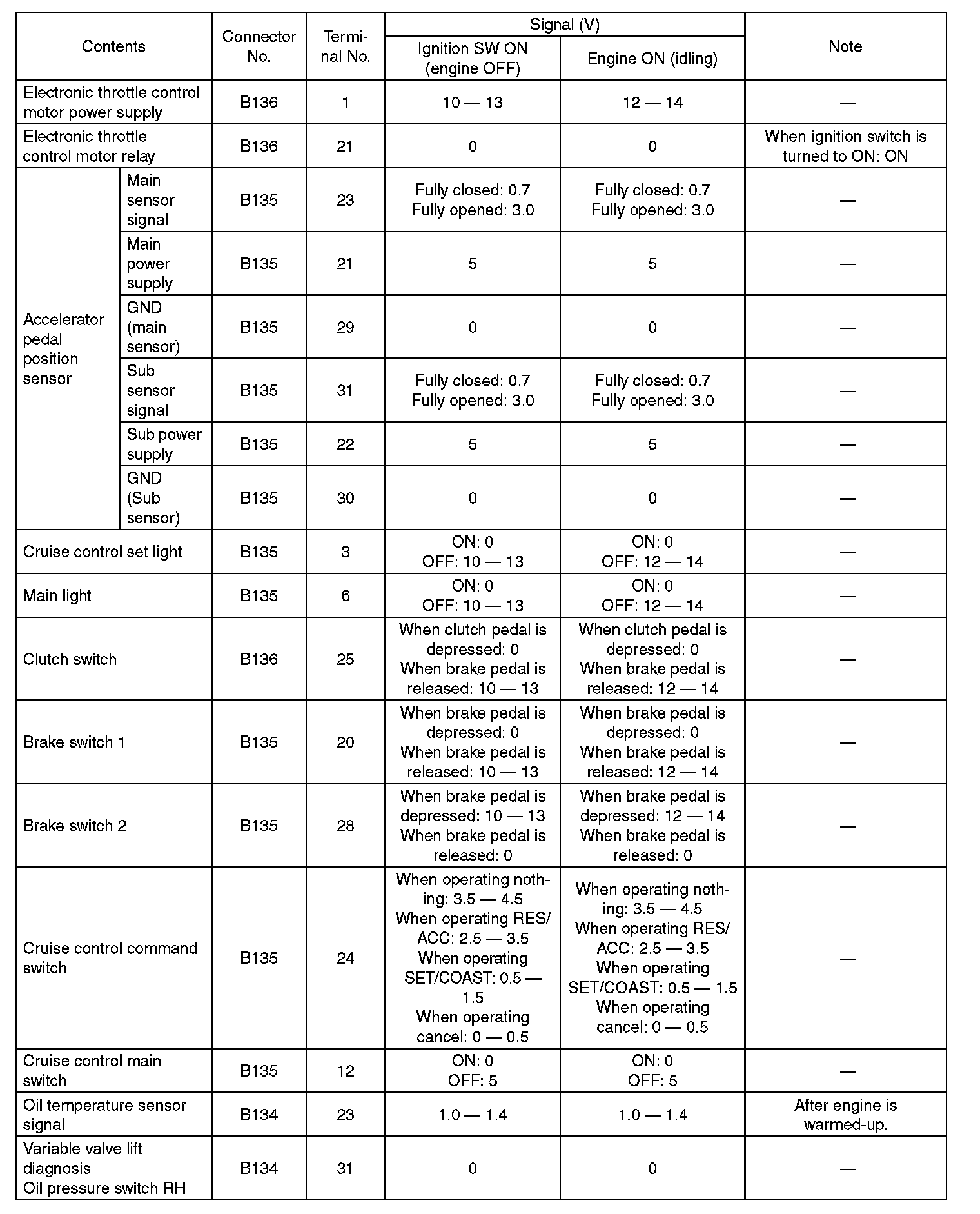

Part 3:

Part 4:
