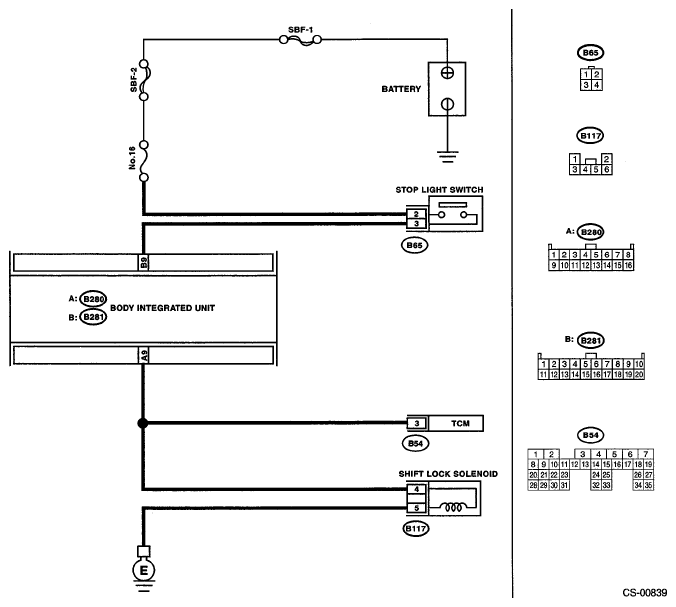

Select Lever Cannot Be Shifted: Wiring Diagram
STOP LIGHT SPECIFICATION
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK STOP LIGHT SWITCH
. Depress the brake pedal. |
Does the stop light illuminate? | Go to step 2 . | Check the stop light system. |
2 CHECK HARNESS BETWEEN STOP LIGHT SWITCH AND BODY INTEGRATED UNIT.
|
Is the resistance 1 MΩ or more? | Repair the open circuit of harness between the body integrated unit and stop light switch. | Go to step 3 . |
| 3 CHECK HARNESS BETWEEN STOP LIGHT SWITCH AND BODY INTEGRATED UNIT
. Measure the resistance of harness between stop light switch and chassis ground. Connector & terminal (B65) No. 3 - Chassis ground: |
Is the resistance less than 1 Ω? | Repair the short circuit of harness between the body integrated unit and stop light switch. | Go to step 4 . |
4 CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND SHIFT LOCK SOLENOID
.
|
Is the resistance 1 MΩ or more? | Repair the open circuit of harness between body integrated unit and shift lock solenoid. | Go to step 5 . |
| 5 CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND SHIFT LOCK SOLENOID. Measure the resistance of harness between shift lock solenoid and chassis ground. Connector & terminal (B117) No. 4 - Chassis ground: |
Is the resistance less than 1 Ω? | Repair the short circuit of harness between the body integrated unit and shift lock solenoid. | Go to step 6 . |
6 CHECK HARNESS CONNECTOR BETWEEN TCM AND SHIFT LOCK SOLENOID.
|
Is the resistance 1 MΩ or more? | Repair open circuit of harness between TCM and shift lock solenoid. | Go to step 7 . |
| 7 CHECK HARNESS CONNECTOR BETWEEN TCM AND SHIFT LOCK SOLENOID
. Measure the resistance of harness between shift lock solenoid and chassis ground. Connector & terminal (B117) No. 4 - Chassis ground: |
Is resistance less than 1 Ω? | Repair short circuit of harness between TCM and shift lock solenoid. | Go to step 8 . |
| 8 CHECK HARNESS BETWEEN SHIFT LOCK SOLENOID AND CHASSIS GROUND. Measure the resistance of harness between shift lock solenoid and chassis ground. Connector & terminal (B117) No. 5 - Chassis ground: |
Is the resistance 1 MΩ or more? | Repair open circuit of harness between shift lock solenoid and chassis ground. | Go to step 9 . |
| 9 CHECK SHIFT LOCK SOLENOID. Measure the resistance of the shift lock solenoid connector terminals. Terminals No. 4 - No. 5: |
Is the resistance 20 - 40 Ω? | Go to step 10 . | Replace the shift lock solenoid. |
| 10 CHECK SHIFT LOCK SOLENOID. Connect the battery to connector terminal of shift lock solenoid, and operate the solenoid. Terminals No.4 (+) - No.5 (-): |
Is the shift lock solenoid operating properly? | Go to step 11 . | Replace the shift lock solenoid. |
| 11 CHECK POOR CONTACT. | Is there poor contact in the connector? | Repair the poor contact. | Replace the body integrated unit. |
