Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

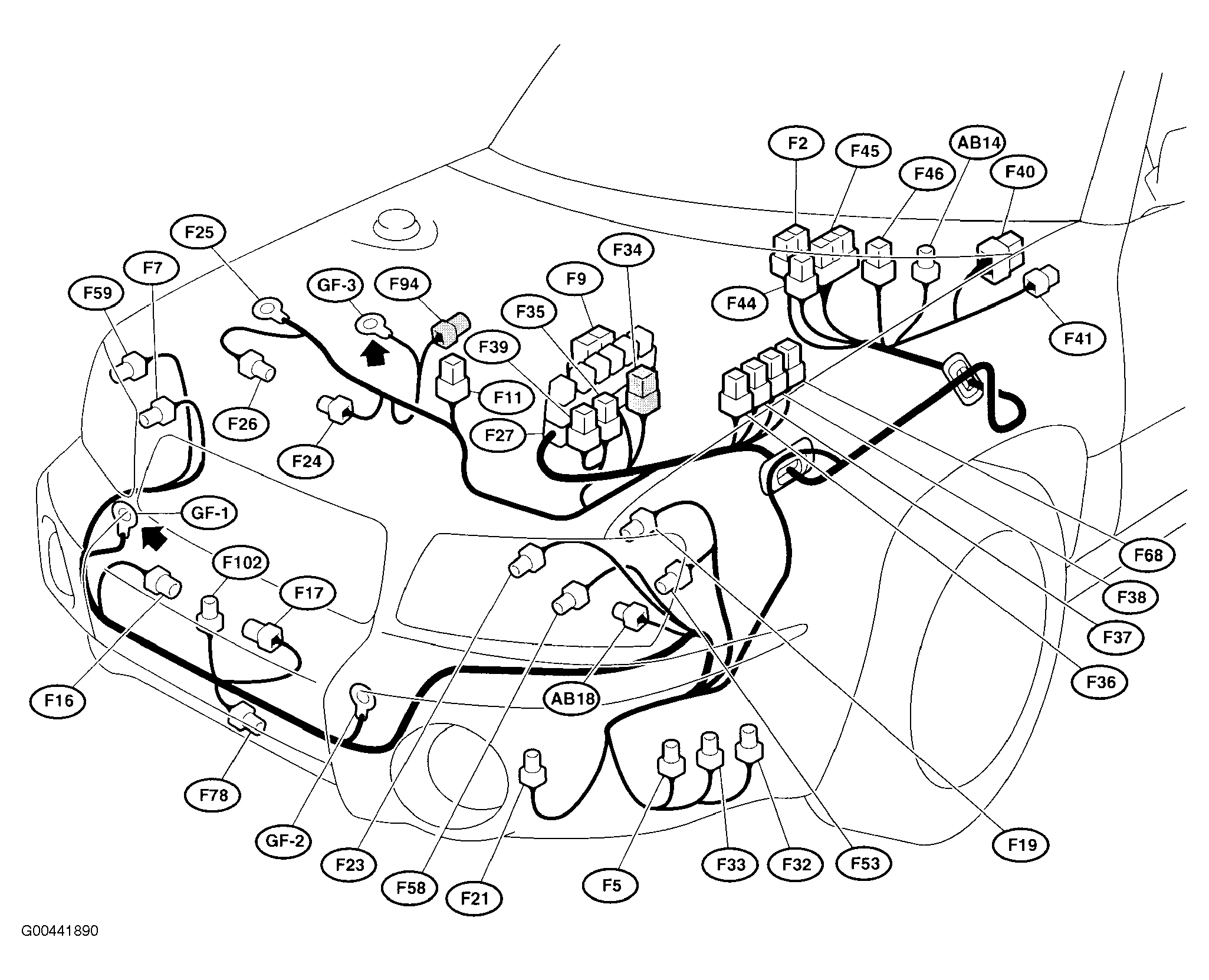

A/C Relay Holder (F27) On left side of engine compartment. See Figure.
Fuse & Relay Box (F/B) (B271) Behind left side of dash. See Figure.
Main Fuse Box (M/B) (F68) At left side of engine compartment. See Figure.
Power Window Circuit Breaker (B41) Behind left side of dash. See Figure.
Relay Block (B225) Behind right side of dash. See Figure.
SBF Holder (F34) On left side of engine compartment. See Figure.
