Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

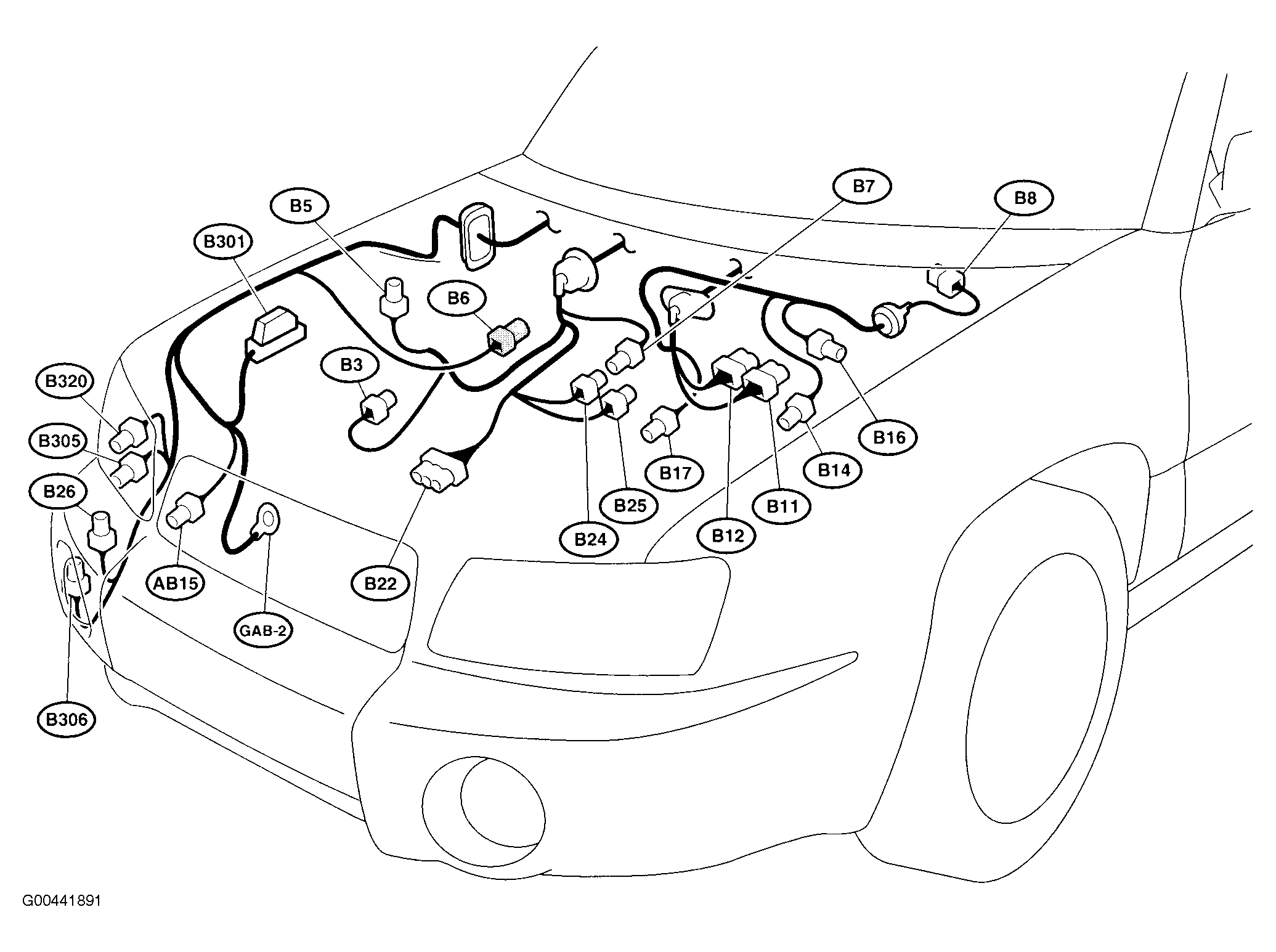

| ABS Control Module (Non-Turbo) (B301) | On right front side of engine compartment. See Figure. |

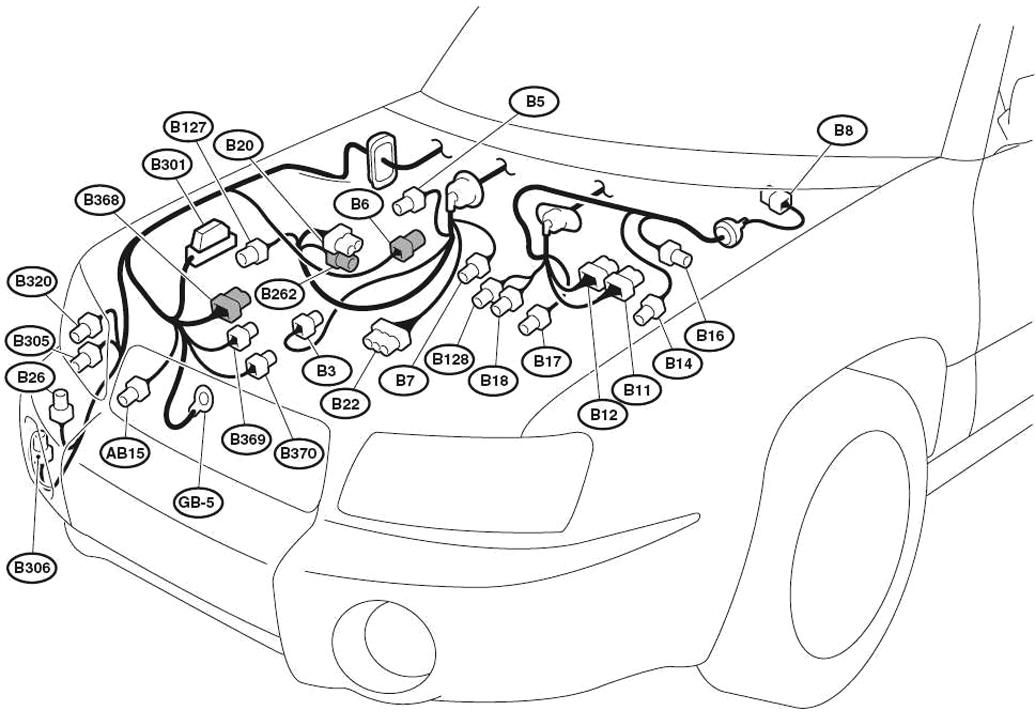

| ABS Control Module (Turbo) (B301) | On right front side of engine compartment. See Figure. |

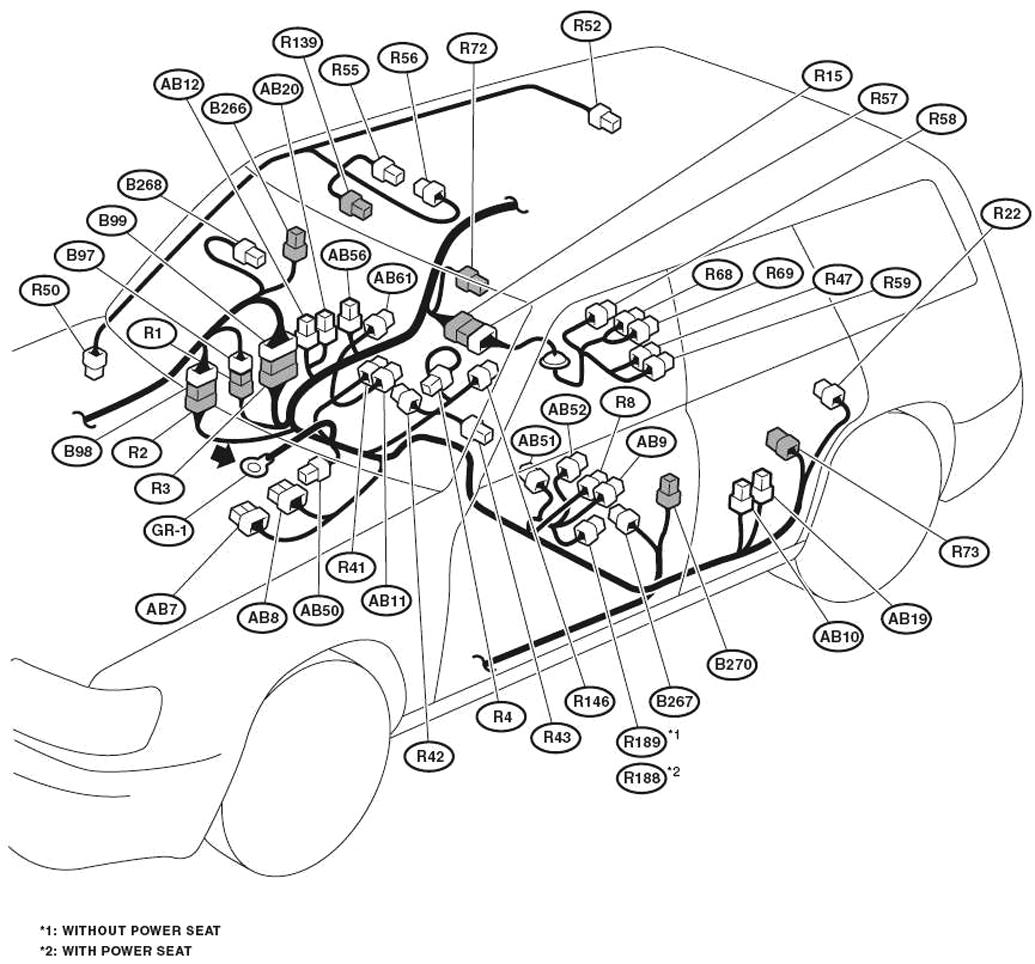

| Airbag Control Module (AB3) | Under right front of center console. See Figure. |
| Air Bag Module (Driver) (AB2) | In steering column. See Figure. |
| Air Bag Module (Passenger) (AB4) | Behind right side of dash. See Figure. |

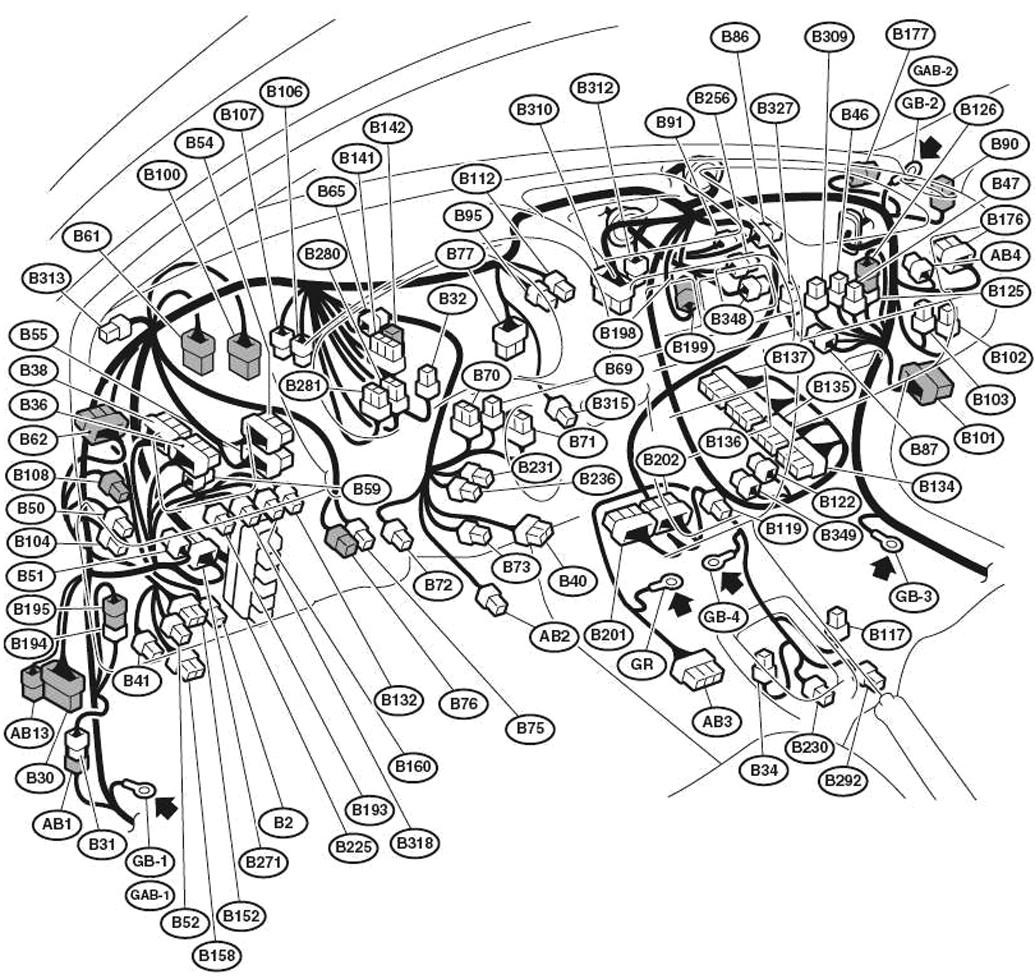

| Body Integrated Unit (B280) | Behind left side of dash. See Figure. |
| Engine Control Module (B134) | In passenger side front footwell below carpet and protective panel. See Figure. |
| Fuel Pump Control Module (Turbo) (R122) | Behind right rear quarterpanel. See Figure. |
| Immobilizer Control Module (B141) | Behind left side of dash. See Figure. |
| Keyless Entry Control Module (B176) | Behind right end of dash. See Figure. |

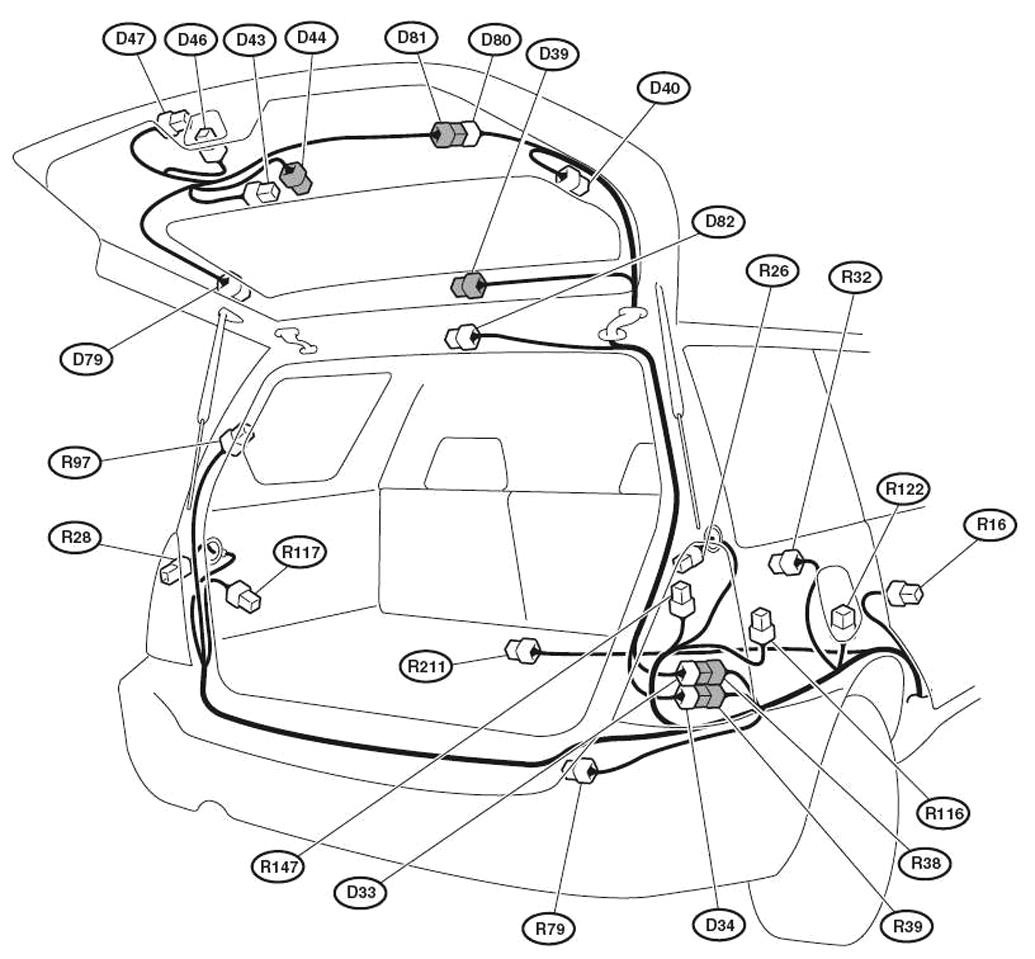

| Rear Wiper Intermittent Module (R116) | At right rear corner of cargo compartment. See Figure. |
| Seat Airbag Module LH (AB9) | Under left front seat. See Figure. |
| Seat Airbag Module RH (AB11) | Under right front seat. See Figure. |
| TPM Control Module (R211) | Behind center of rear seats. See Figure. |
| Transmission Control Module (B54) | Behind left side of dash. See Figure. |
| Turn & Hazard Module (B32) | Behind left side of dash. See Figure. |
