DTC P0111 Intake Air Temperature Sensor 1 Circuit Range / Performance: Wiring Diagram

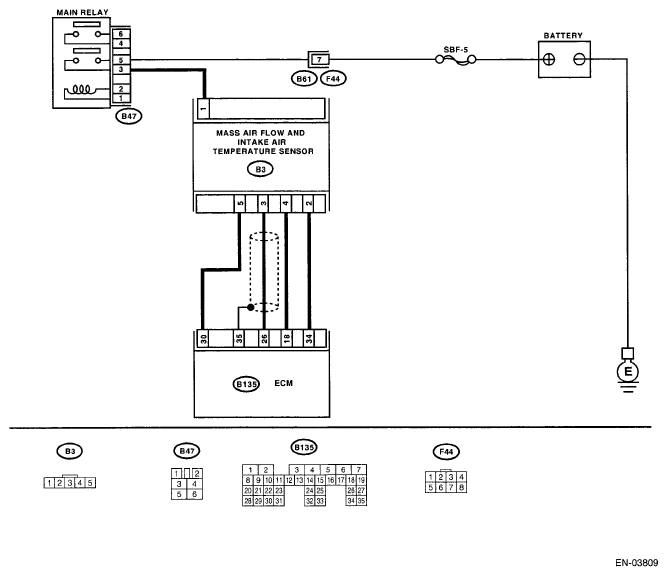

Fig 1: Mass Air Flow And Intake Air Temperature Sensor - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE CHART

Step	Check	Yes	No
1 CHECK ENGINE COOLANT TEMPERATURE. Start the engine and warm-up completely. Measure the engine coolant temperature using the Subaru Select Monitor or general scan tool. NOTE: Subaru Select Monitor For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE" in SUBARU SELECT MONITOR . General scan tool For detailed operation procedures, refer to the "General Scan Tool Instruction Manual".	Is the engine coolant temperature 75°C (167°F) or higher?	Replace the mass air flow and intake air temperature sensor. < Ref. to MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR .>	Check DTC P0125 using "List of Diagnostic Trouble Code (DTC)". < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .>
