Sub-Compartment Fuel Level Sensor

This sensor detects the level of the fuel in the sub side (the side without a fuel pump) of the fuel tank. Also, when the jet pump is operating, fuel in the sub side is drawn up and transferred to the fuel pump.

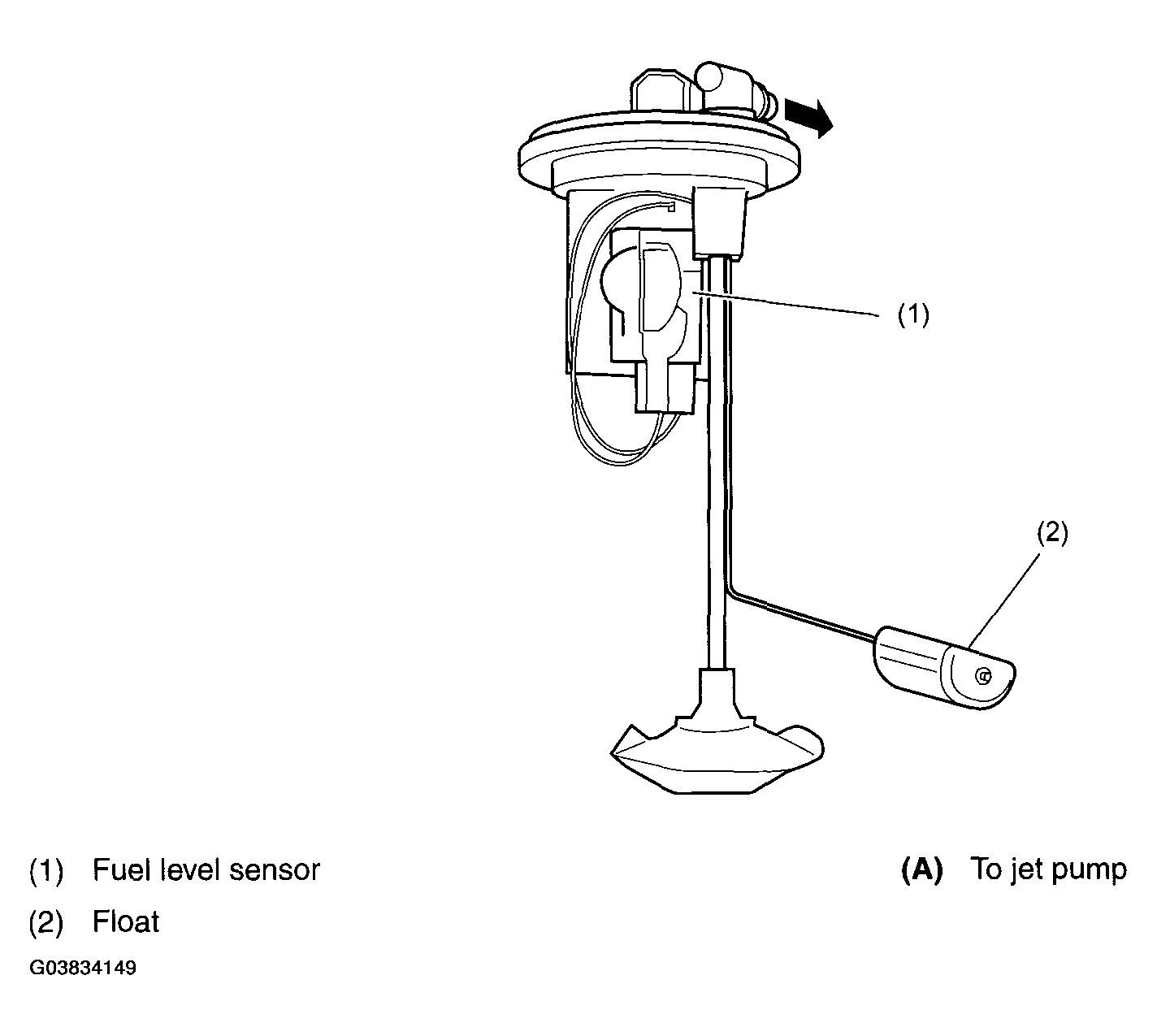

Fig 1: Identifying Sub-Compartment Fuel Level Sensor

Courtesy of SUBARU OF AMERICA, INC.
