Components With Torque Specifications

WARNING: This page is about a different variant/trim than selected.

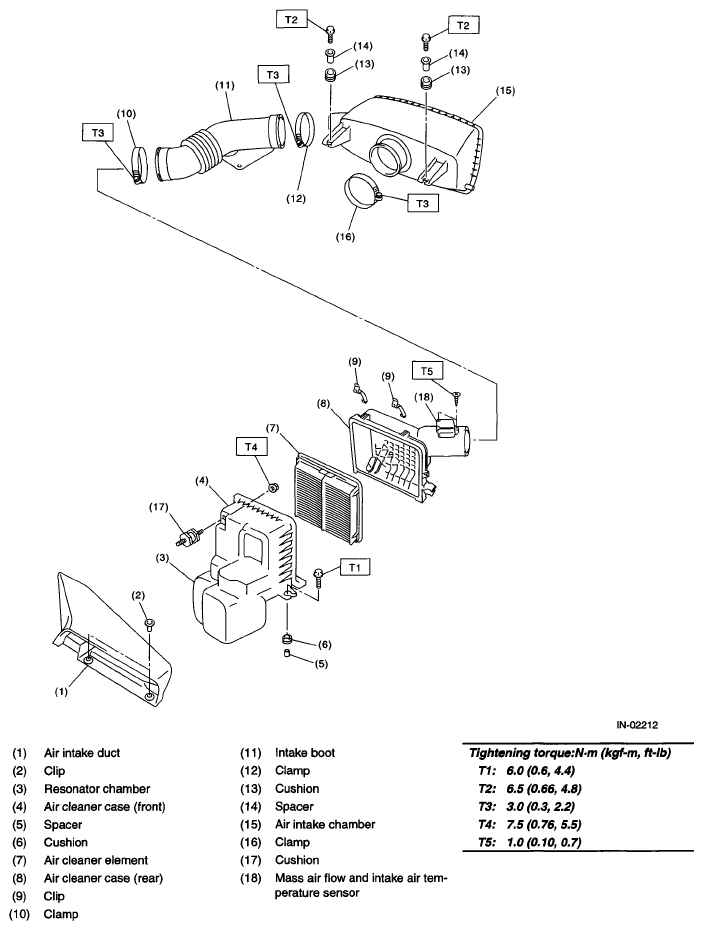

Fig 1: Identifying Intake Components
G05665462Courtesy of SUBARU OF AMERICA, INC.
