Air Bag Systems

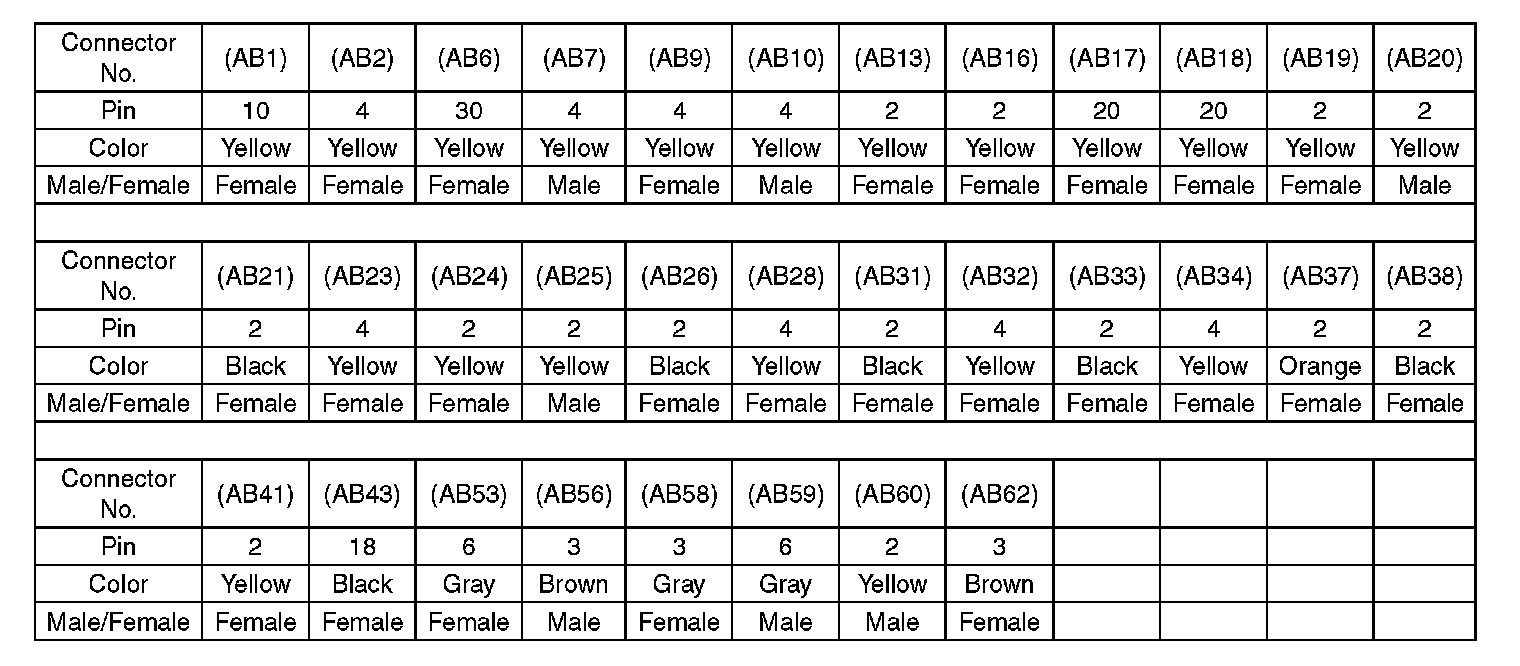

Electrical Component Location (Part 1):

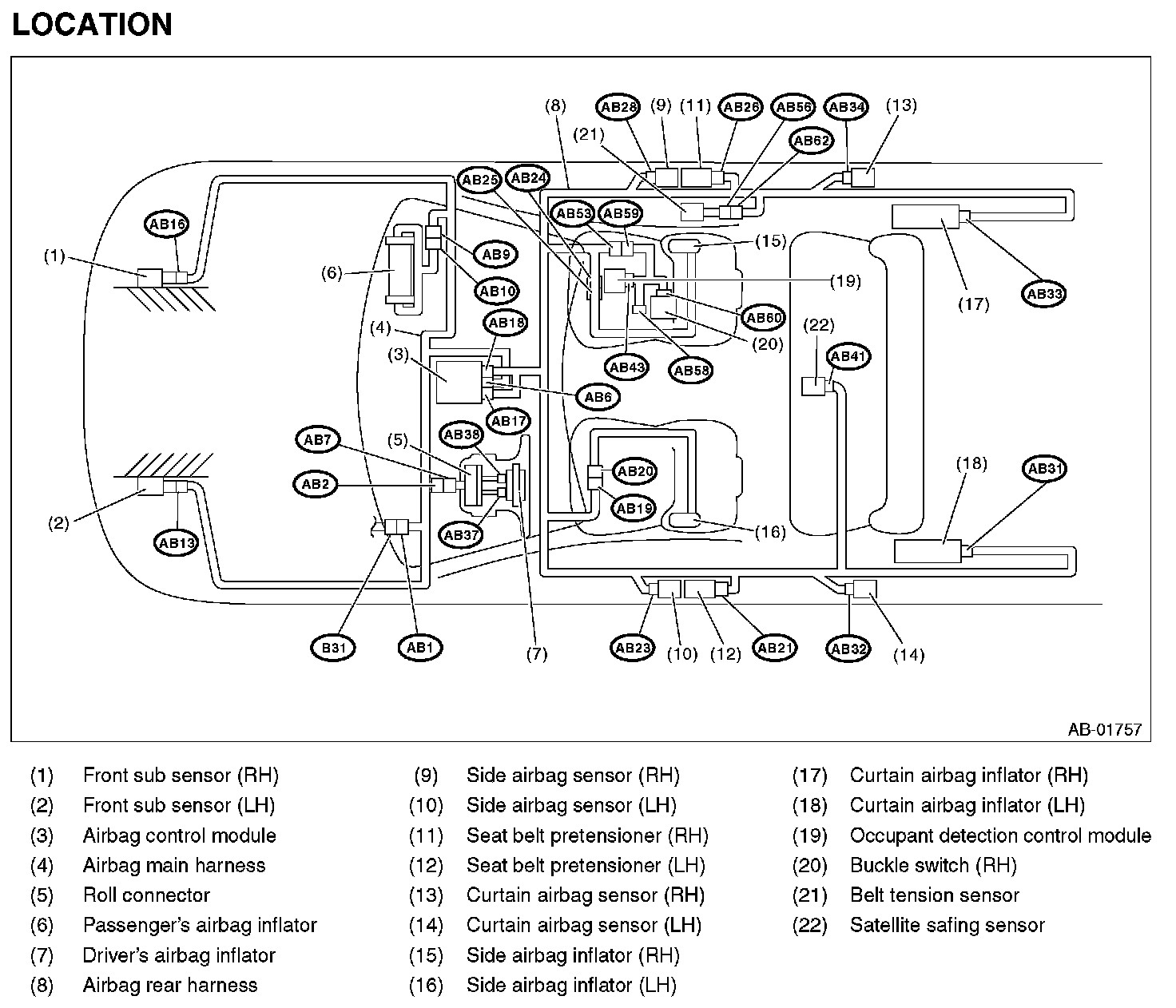

Electrical Component Location (Part 2):

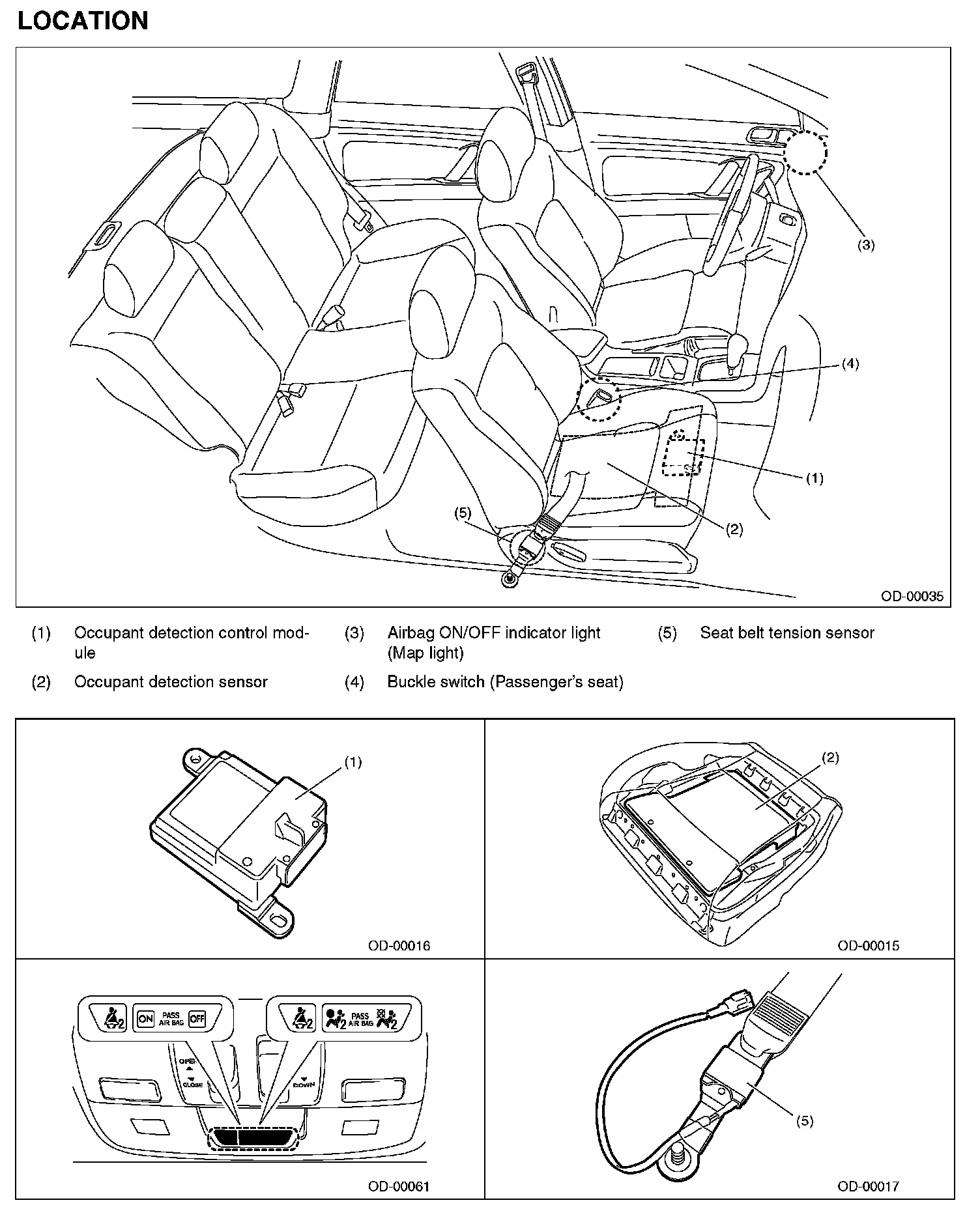

Electrical Component Location:



Front Seat Belt:
