Fuel Injector Circuit

FUEL INJECTOR CIRCUIT

CAUTION:
- Check or repair only faulty parts.
- After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode

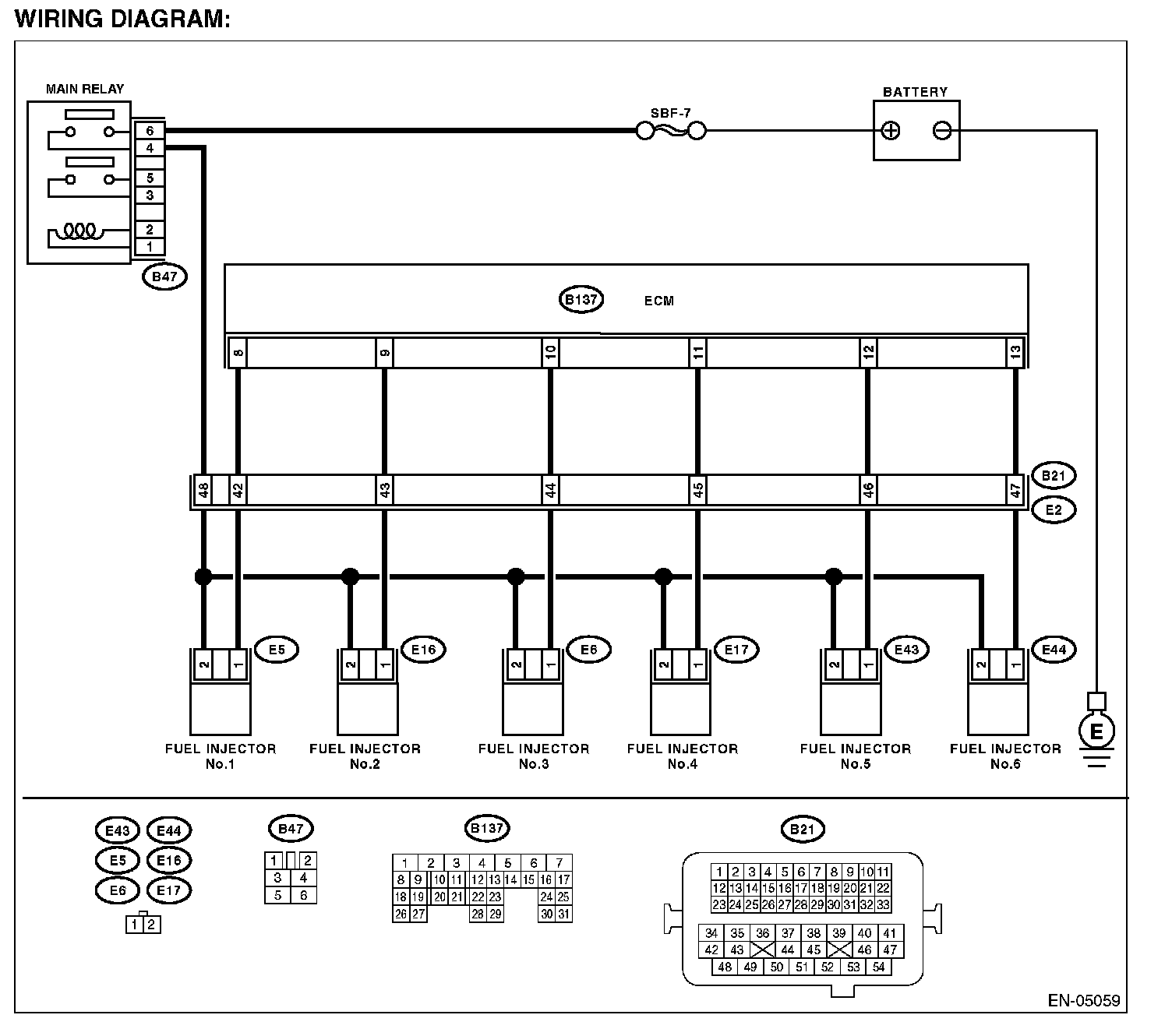

Wiring Diagram:

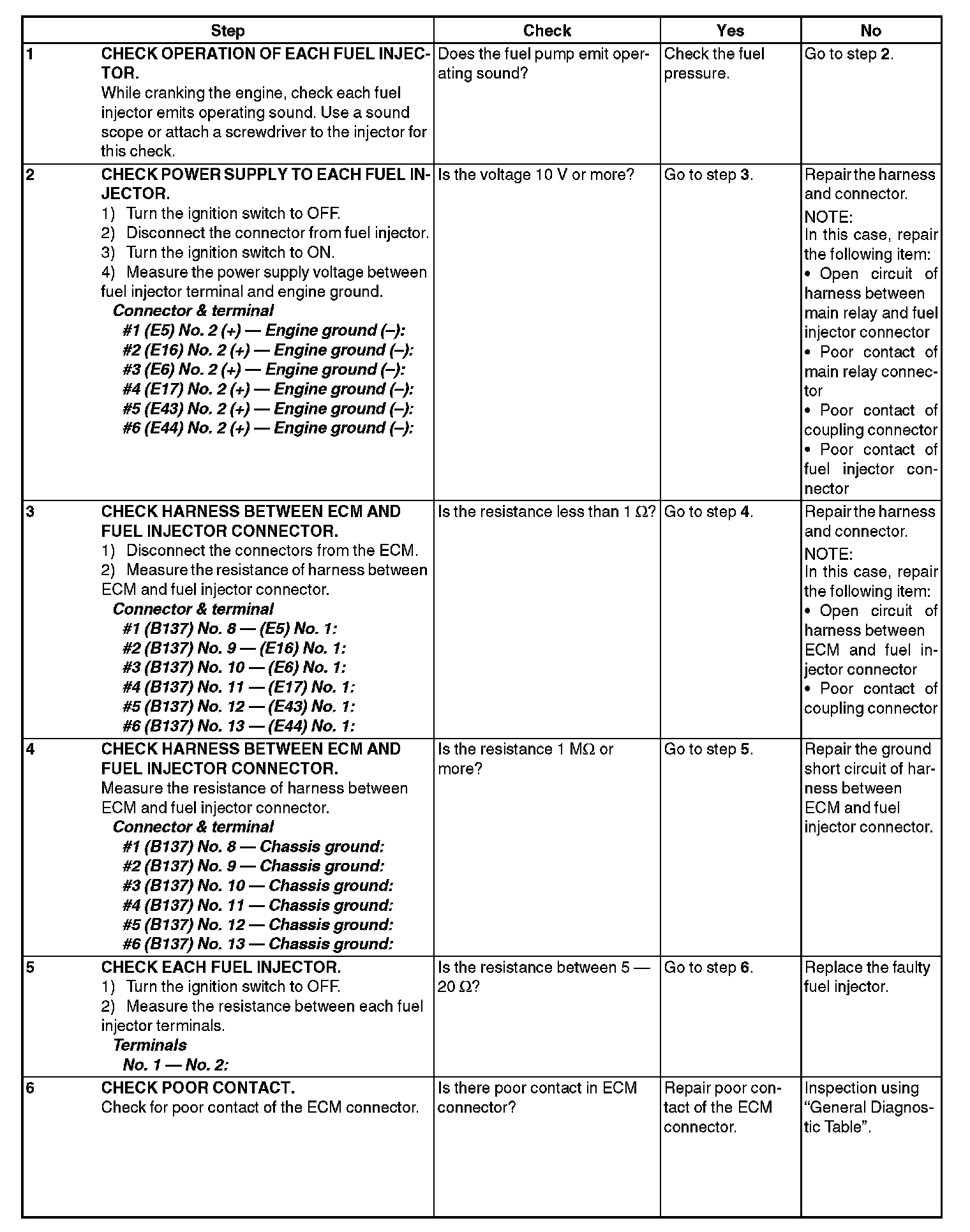

Step 1-6:
