Tighten Torques

Cylinder Head Specifications

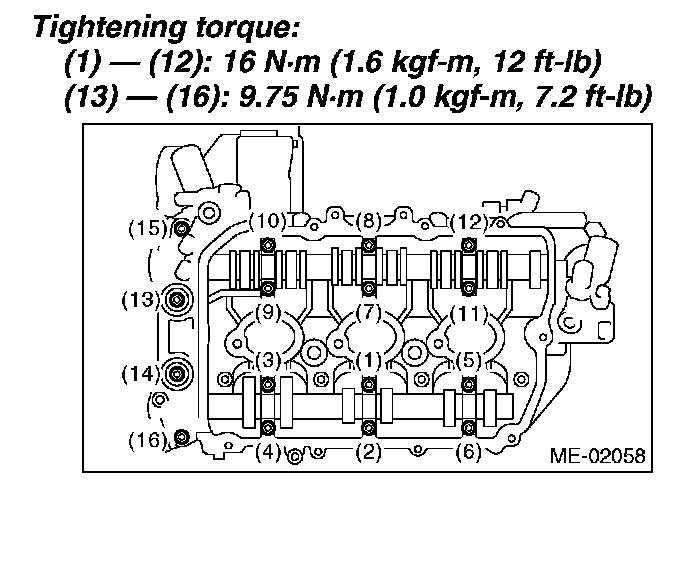

Camshaft Bearing Caps





Cylinder Block Bolts Specifications

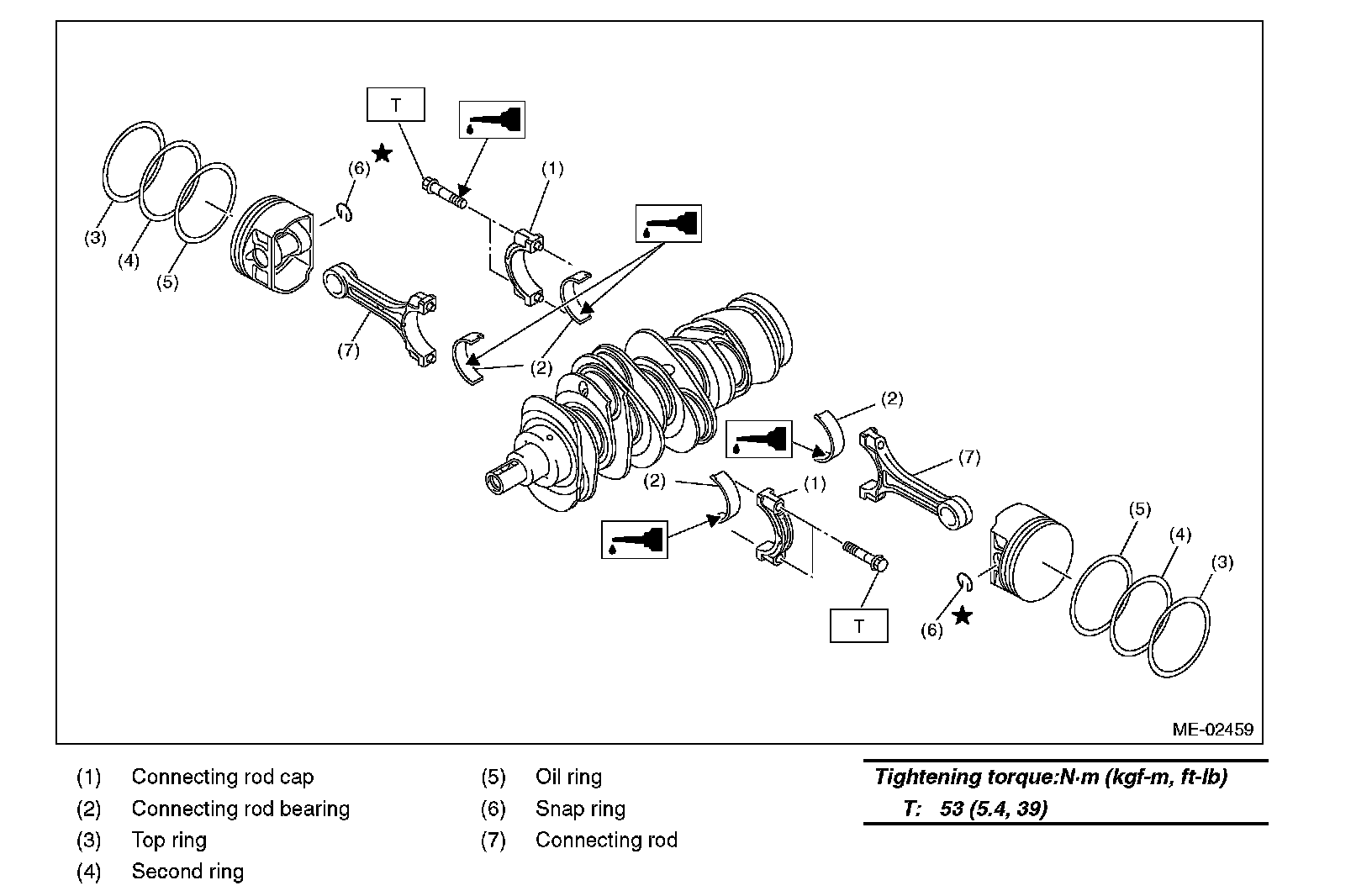

Connecting Rod Caps





Crank Pulley

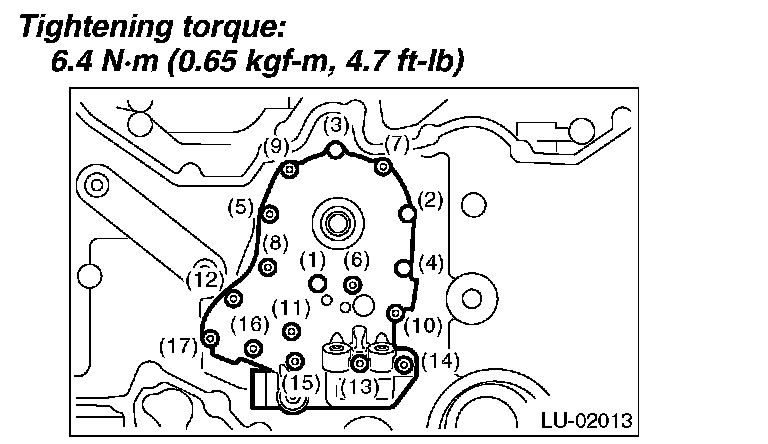

Oil Pump








Water Pump
