System Specifications

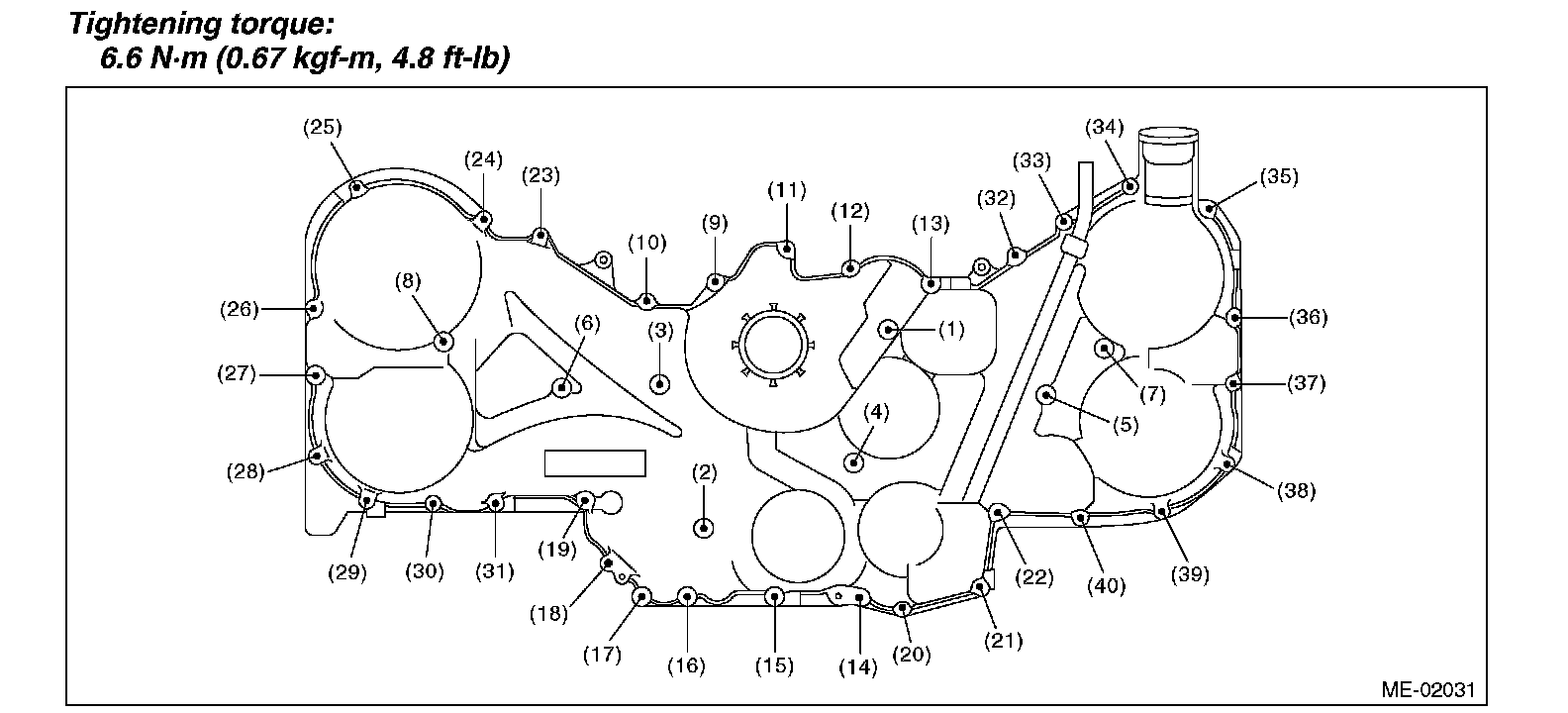

Rear Chain Cover

Rear Chain Cover:

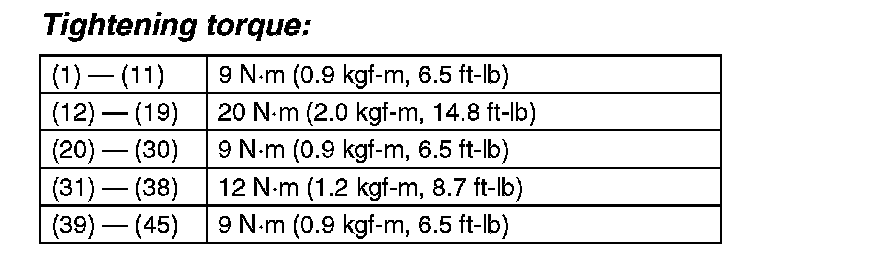

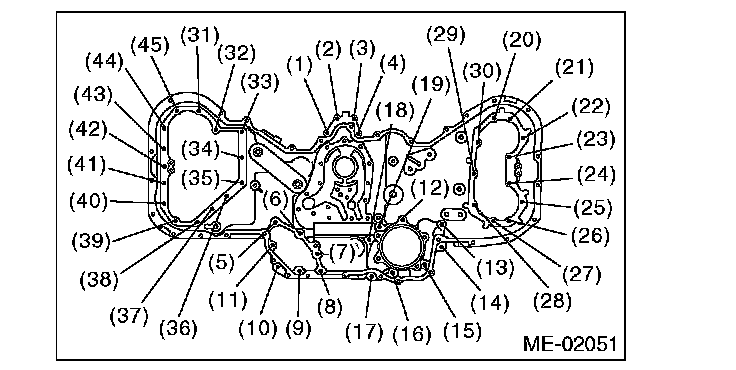

Front Chain Cover

Front Chain Cover:

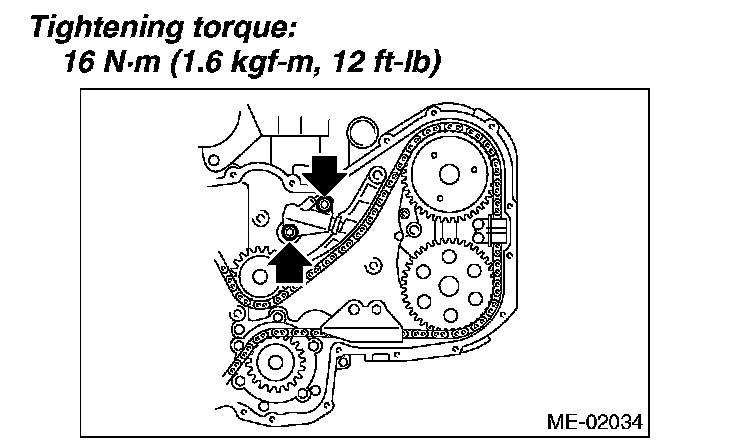

Chain tensioner (LH)

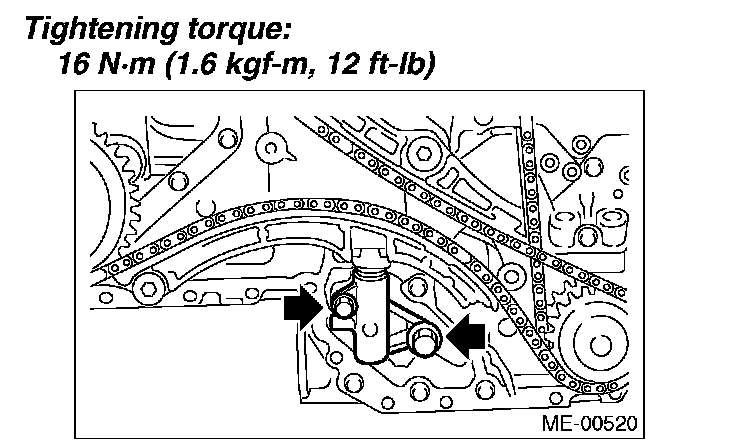

Chain tensioner (RH)

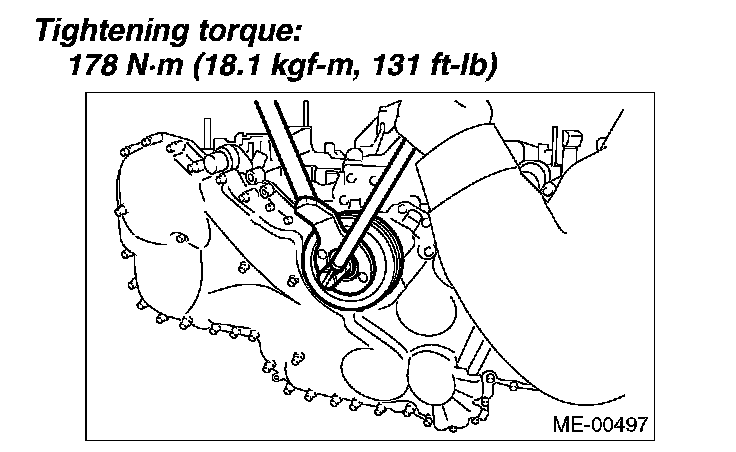

Crank Pulley
