DTC P0134 O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1): Wiring Diagram

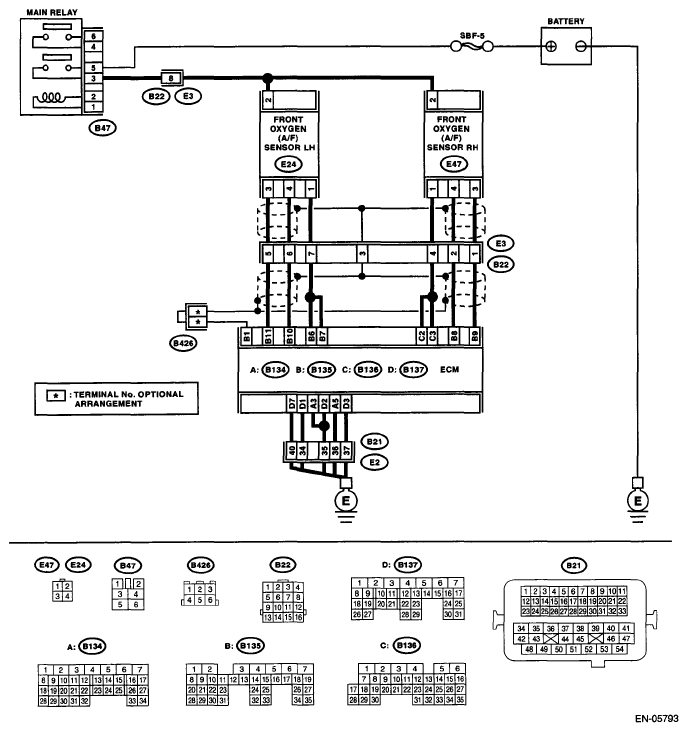

Fig 1: Identifying DTC P0134 O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE FOR SYMPTOM

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR.  Turn the ignition switch to OFF. Disconnect the connectors from the ECM and front oxygen (A/F) sensor. Measure the resistance of harness between ECM and front oxygen (A/F) sensor connector. Connector & terminal  (B135) No. 9 - (E47) No. 3:  (B135) No. 8 - (E47) No. 4:	Is the resistance less than 1 Ω?	Go to step 2  .	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between ECM and front oxygen (A/F) sensor connector Poor contact of coupling connector
