Select Lever: Disassembly

Shift the select lever to "N" range.
Lower the grip cover.

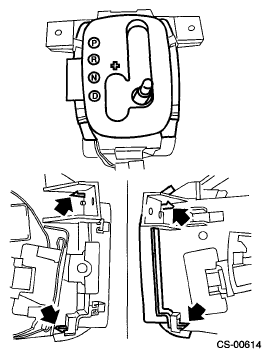

Fig 1: Locating Select Lever Position
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip pin.

Fig 2: Removing Grip Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Fig 3: Identifying Grip Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip cover.

Fig 4: Identifying Grip Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator light and then remove the 9) Remove the bulb case bulb.

Fig 5: Removing Bulb Case Bulb
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift lock solenoid assembly.

Fig 6: Locating Shift Lock Solenoid Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator assembly.

Fig 7: Locating Indicator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the bulb case.

Fig 8: Identifying Bulb Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate light guide.

Fig 9: Identifying Plate Light Guide
Courtesy of SUBARU OF AMERICA, INC.
Remove the position plate.

Fig 10: Identifying Position Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind assembly.

Fig 11: Identifying Blind Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove blind A and B.

Fig 12: Identifying Blind A And B
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip while being careful not to break the pin, and remove all switches.

Fig 13: Identifying Switches
Courtesy of SUBARU OF AMERICA, INC.
Remove the connector from the base assembly using a flat-tip screwdriver.

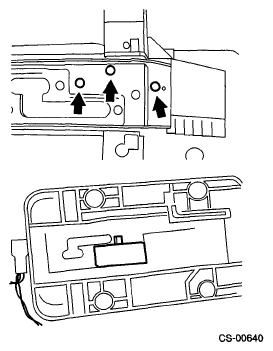

Fig 14: Removing Connector From Base Assembly Using Flat-Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Remove all terminals from the connectors using a flat-tip screwdriver.

Fig 15: Removing Terminals From Connectors Using Flat-Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift lock solenoid from the lock lever bracket.

Fig 16: Removing Shift Lock Solenoid From Lock Lever Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing.

Fig 17: Identifying Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the lock lever bushing.

Fig 18: Removing Lock Lever Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the lock lever.

Fig 19: Identifying Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the release rod and spring.

Fig 20: Removing Release Rod And Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable bracket.

Fig 21: Removing Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the spacer.

Fig 22: Removing Spacer
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover and dust cover bracket.

Fig 23: Removing Dust Cover And Dust Cover Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the spacer.

Fig 24: Removing Spacer
Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the shift position pin.

Fig 25: Removing Shift Position Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips, then remove the shaft.

Fig 26: Identifying Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the arm assembly.
Remove the bushing.

Fig 27: Removing Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the selector arm assembly.

Fig 28: Removing Selector Arm Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip while being careful not to break the pin, then remove the shift button switch.

Fig 29: Removing Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the select shaft.

Fig 30: Removing Select Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the tube cross plate.

Fig 31: Removing Tube Cross Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the mode change switch.

Fig 32: Removing Mode Change Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent check block.

Fig 33: Removing Detent Check Block
Courtesy of SUBARU OF AMERICA, INC.
