Check Sport Shift Switch

CHECK SPORT SHIFT SWITCH

DIAGNOSIS:

Input signal circuit of SPORT shift switch is open or shorted.

TROUBLE SYMPTOM:

Does not shift on manual mode.

WIRING DIAGRAM:

WIRING DIAGRAM:

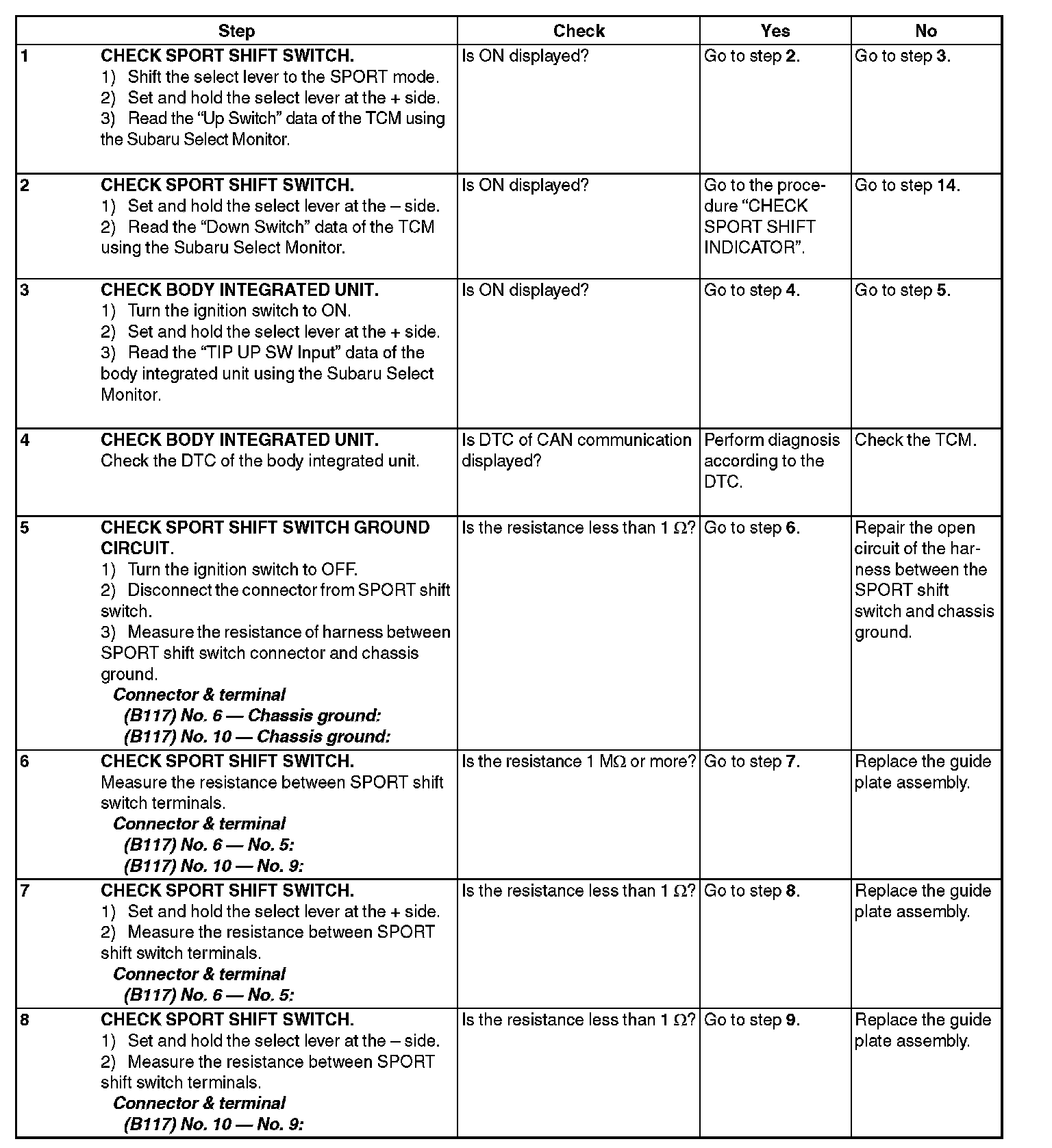

Step 1-Step 8:

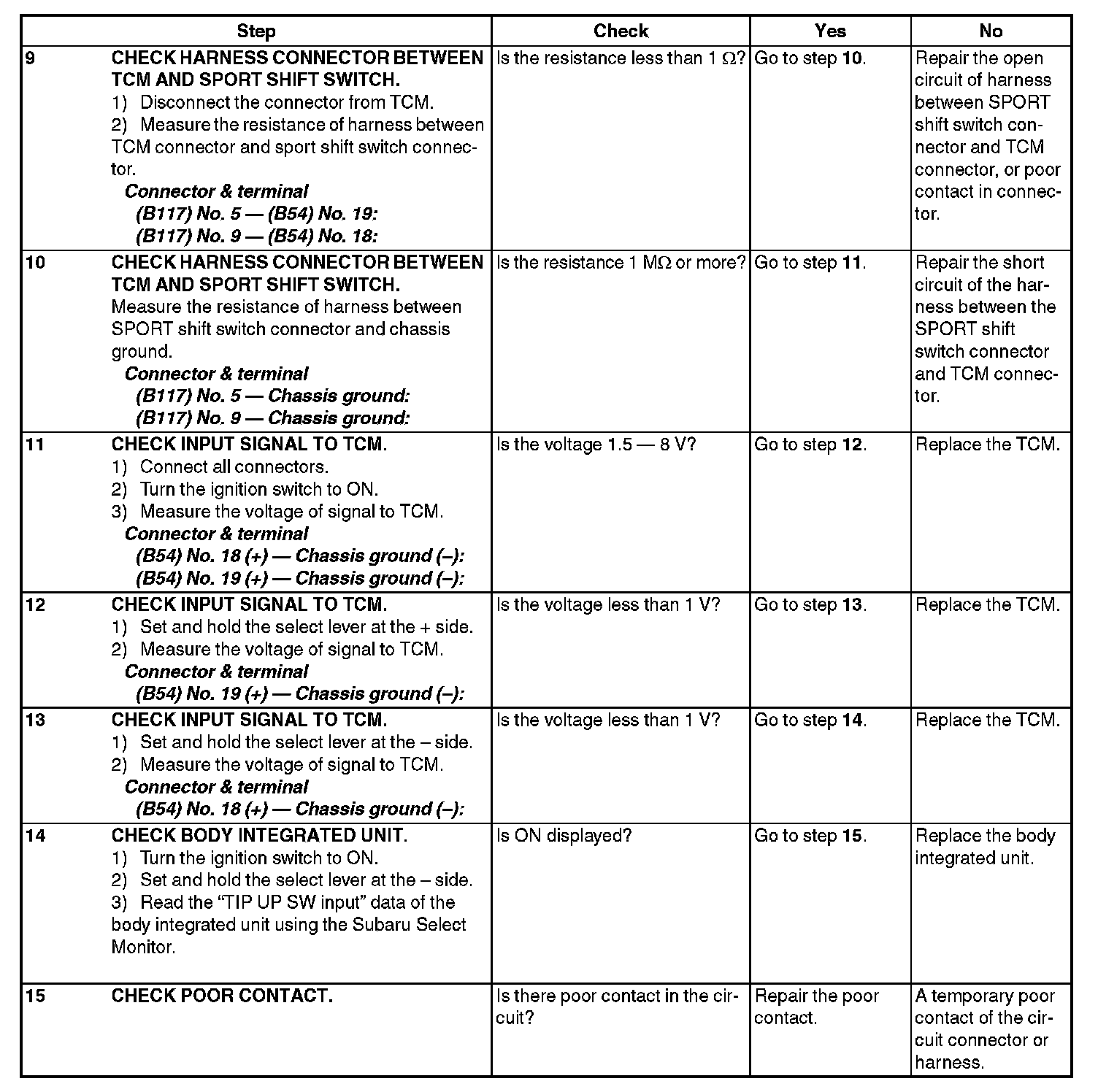

Step 9-Step 15:
