System Specifications
General Description
SPECIFICATION
1.
HEATER SYSTEM

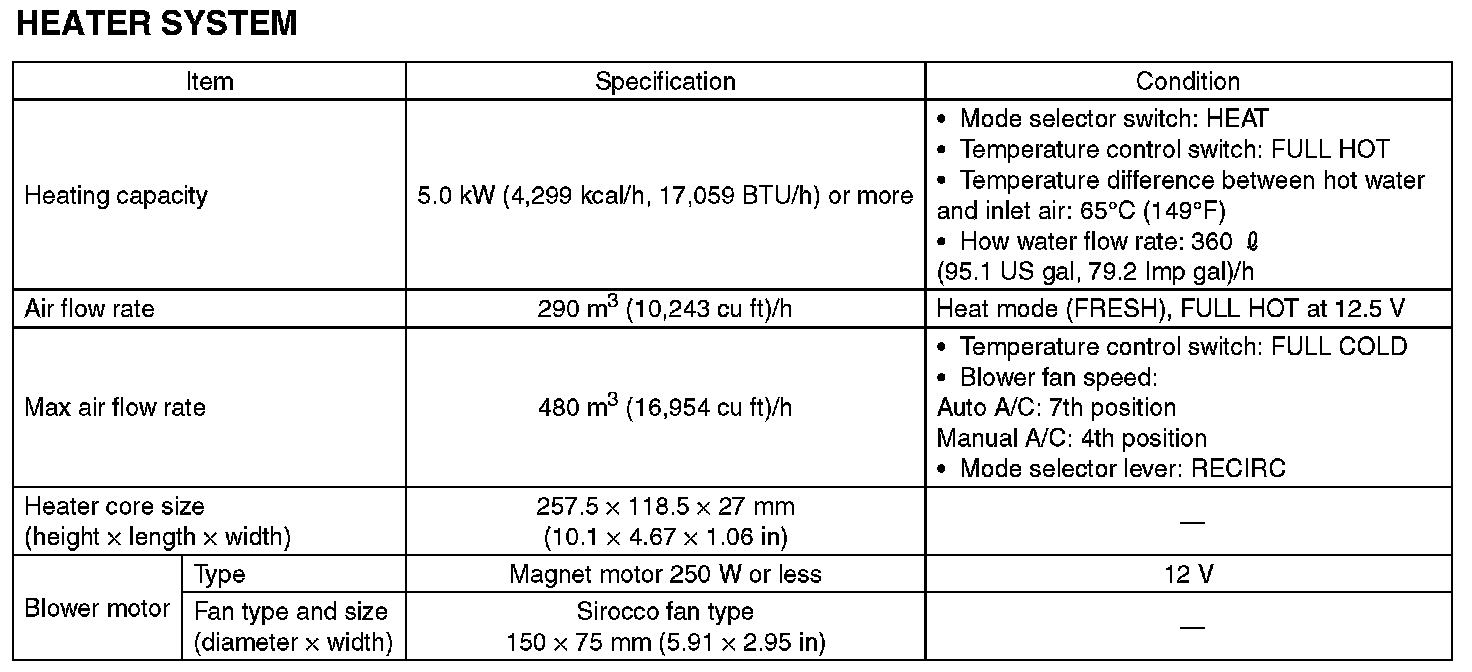

Specification - Heater System:
2.
A/C SYSTEM

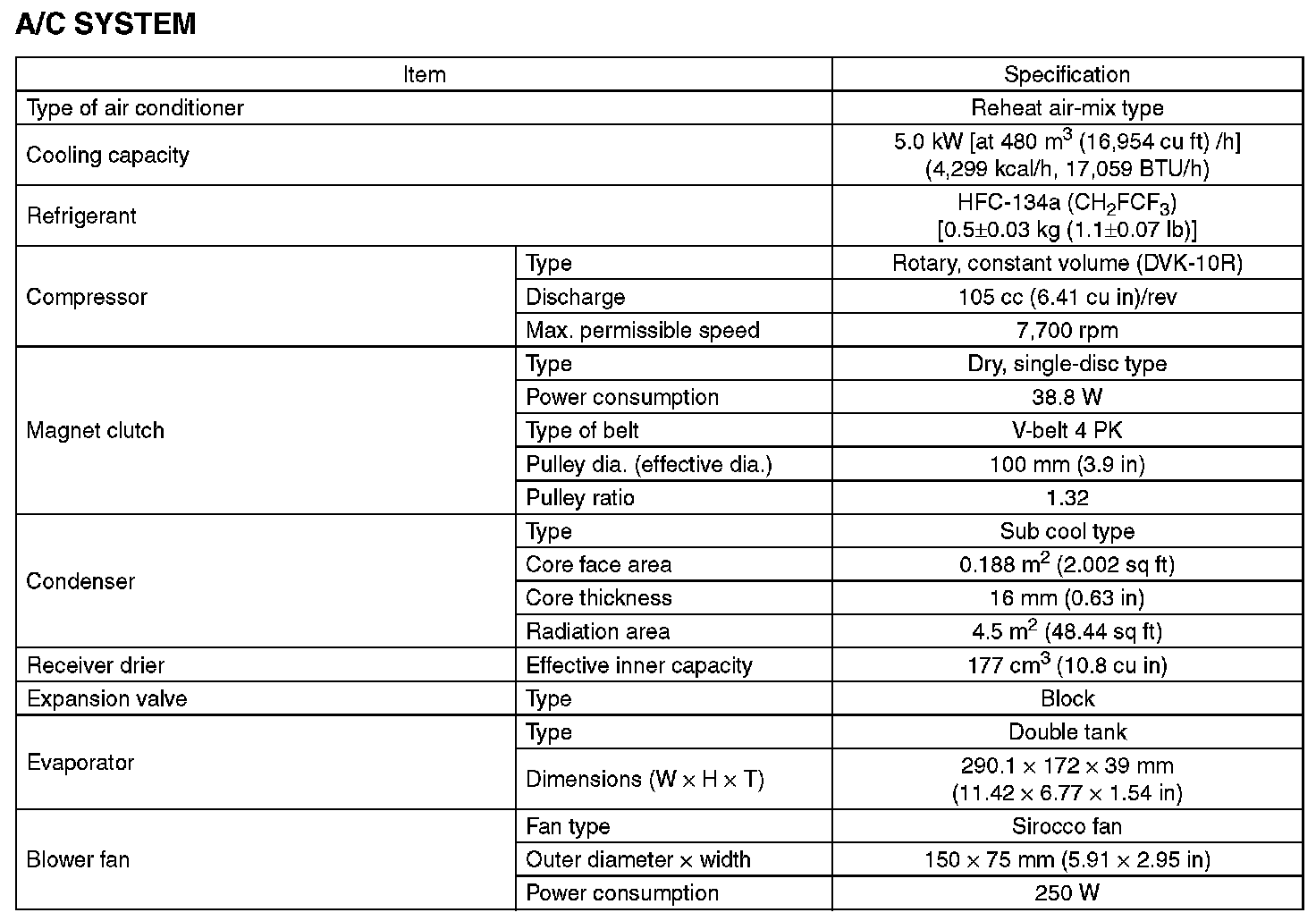

Specification - A/C System (Part 1):
Specification - A/C System (Part 2):
