DTC P1602 Control Module Programming Error: Wiring Diagram

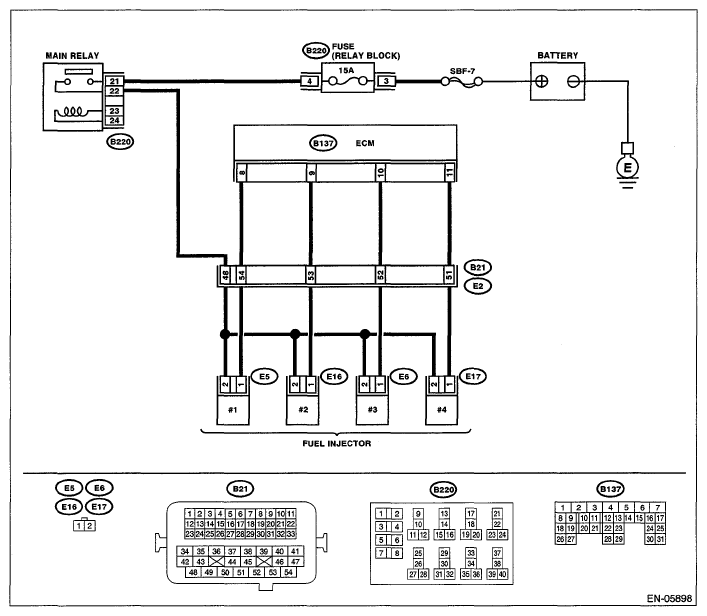

Fig 1: Control Module Programming Error - Wiring Schematics (1 Of 2)
G05955630Courtesy of SUBARU OF AMERICA, INC.

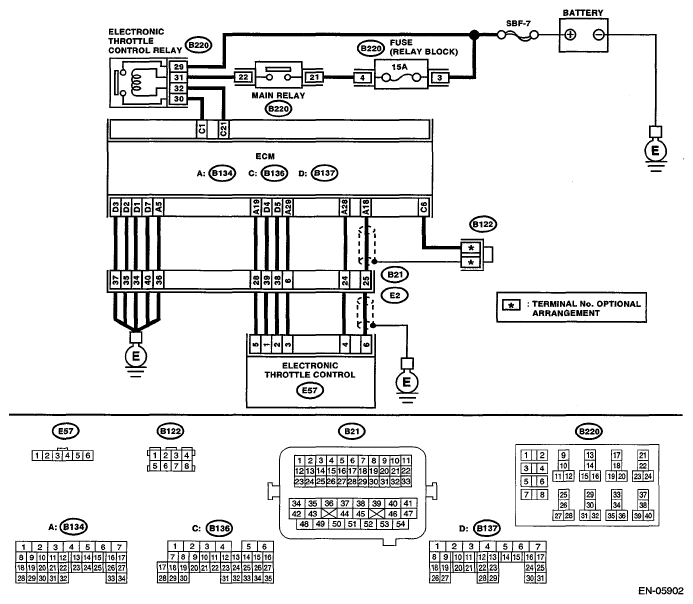

Fig 2: Control Module Programming Error - Wiring Schematics (2 Of 2)
G05661385Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSIS PROCEDURE CHART

Step Check Yes No
1 CHECK FOR ANY OTHER DTC ON DISPLAY  . Is any other DTC displayed? Check the appropriate DTC using the "List of Diagnostic Trouble Code (DTC)". Refer to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . Go to step 2  .
2 CHECK ENGINE OIL  . Is there a proper amount of engine oil? Go to step 3  . Replace engine oil. Refer to REPLACEMENT , Engine Oil.
3 CHECK EXHAUST SYSTEM  . Are there holes or loose bolts on exhaust system? Repair the exhaust system. Go to step 4  .
4 CHECK AIR INTAKE SYSTEM  . Are there holes, loose bolts or disconnection of hose on air intake system? Repair the air intake system. Go to step 5  .
5 CHECK FUEL PRESSURE  .
WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION: Be careful not to spill fuel.

Measure the fuel pressure while disconnecting pressure regulator vacuum hose from intake manifold. Refer to INSPECTION , Fuel Pressure.
CAUTION: Release fuel pressure before removing the fuel pressure gauge.
NOTE: If fuel pressure does not increase, squeeze the fuel return hose 2 to 3 times, then measure fuel pressure again.
 Is the measured value 284 - 314 kPa (2.9 - 3.2 kg/cm2 , 41 - 46 psi)? Go to step 6  . Repair the following item.
Fuel pressure is too high:
  • Clogged fuel return line or bent hose Fuel pressure is too low:
  • Improper fuel pump discharge
  • Clogged fuel supply line
6 CHECK FUEL PRESSURE.
After connecting the pressure regulator vacuum hose, measure fuel pressure. Refer to INSPECTION , Fuel Pressure.
CAUTION: Release fuel pressure before removing the fuel pressure gauge.
NOTE:
  • If fuel pressure does not increase, squeeze fuel return hose 2 to 3 times, then measure fuel pressure again.
  • If the measured value at this step is out of specification, check or replace pressure regulator and pressure regulator vacuum hose.
 Is the measured value 230 - 260 kPa (2.35 - 2.65 kg/cm2 , 33 - 38 psi)? Go to step 7  . Repair the following item.
Fuel pressure is too high:
  • Faulty pressure regulator
  • Clogged fuel return line or bent hose Fuel pressure is too low:
  • Faulty pressure regulator
  • Improper fuel pump discharge
  • Clogged fuel supply line
7 CHECK ENGINE COOLANT TEMPERATURE SENSOR  .
  1. Start the engine and warm up completely.
  2. Read the data of engine coolant temperature sensor signal using Subaru Select Monitor or general scan tool.
NOTE:
  • Subaru Select Monitor

    For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE". Refer to SUBARU SELECT MONITOR .

  • General scan tool

    For detailed operation procedures, refer to the general scan tool operation manual.

 Is the engine coolant temperature 75°C (167°F) or higher? Go to step 8  . Replace the engine coolant temperature sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR .
8 CHECK MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR  .
  1. Start the engine and warm up engine until coolant temperature is higher than 75°C (167°F).
  2. Place the select lever in "P" range or "N" range.
  3. Turn the A/C switch to OFF.
  4. Turn all the accessory switches to OFF.
  5. Read the data of mass airflow and intake air temperature sensor signal using Subaru Select Monitor or general scan tool.
NOTE:
  • Subaru Select Monitor

    For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE". Refer to SUBARU SELECT MONITOR .

  • General scan tool

    For detailed operation procedures, refer to the general scan tool operation manual.

 Is the measured value 2.0 - 5.0 g/s (0.26 - 0.66 lb/m)? Go to step 9  . Replace the mass air flow and intake air temperature sensor. Refer to MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR .
9 CHECK MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR  .
  1. Start the engine and warm up engine until coolant temperature is higher than 75°C (167°F).
  2. Place the select lever in "F" range or "N" range.
  3. Turn the A/C switch to OFF.
  4. Turn all the accessory switches to OFF.
  5. Open the front hood.
  6. Measure the ambient temperature.
  7. Read the data of mass airflow and intake air temperature sensor signal using Subaru Select Monitor or general scan tool.
NOTE:
  • Subaru Select Monitor

    For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE". Refer to SUBARU SELECT MONITOR .

  • General scan tool
  • For detailed operation procedures, refer to the general scan tool operation manual.
 Subtract ambient temperature from intake air temperature. Is the obtained value -10 - 50°C (-18 -90°F)? Go to step 10  . Check the mass air flow and intake air temperature sensor. Refer to MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR .
10 CHECK OUTPUT SIGNAL OF ECM  .
  1. Turn the ignition switch to ON.
  2. Measure the voltage between the ECM and chassis ground for faulty cylinders.

    Connector & terminal

    #1 (B137) No. 8 (+) - Chassis ground (-):

    #2 (B137) No. 9 (+) - Chassis ground (-):

    #3 (B137) No. 10 (+) - Chassis ground (-):

    #4 (B137) No. 11 (+) - Chassis ground (-):

 Is the voltage 10 V or more? Go to step 15  . Go to step 11  .
11 CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR  .
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from fuel injector on faulty cylinders.
  3. Measure the resistance between the fuel injector connector and engine ground on faulty cylinders.

    Connector & terminal

    #1 (E5) No. 1 - Engine ground:

    #2 (E16) No. 1 - Engine ground:

    #3 (E6) No. 1 - Engine ground:

    #4 (E17) No. 1 - Engine ground:

 Is the resistance 1 MΩ or more? Go to step 12  . Repair the short circuit to ground in harness between ECM and fuel injector connector.
12 CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR  .
Measure the resistance of harness between ECM and fuel injector connector on faulty cylinders.
Connector & terminal
#1 (B137) No. 8 - (E5) No. 1:
#2 (B137) No. 9 - (E16) No. 1:
#3(B137) No. 10 - (E6) No. 1:
#4 (B137) No. 11 - (E17) No. 1: 		 Is the resistance less than 1 Ω? Go to step 13  . Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit of harness between ECM and fuel injector connector
  • Poor contact of coupling connector
13 CHECK FUEL INJECTOR  .
Measure the resistance between fuel injector terminals on faulty cylinder.
Terminals
No. 1 - No. 2: 		 Is the resistance between 5 - 20 Ω? Go to step 14  . Replace the faulty fuel injector. Refer to FUEL INJECTOR .
14 CHECK POWER SUPPLY LINE  .
  1. Turn the ignition switch to ON.
  2. Measure the voltage between fuel injector and engine ground on faulty cylinders.

    Connector & terminal

    #1 (E5) No. 2 (+) - Engine ground (-):

    #2 (E16) No. 2 (+) - Engine ground (-):

    #3 (E6) No. 2 (+) - Engine ground (-):

    #4 (E17) No. 2 (+) - Engine ground (-):

 Is the voltage 10 V or more? Repair the poor contact of all connectors in fuel injector circuit. Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit in harness between the main relay connector and fuel injector connector on faulty cylinders
  • Poor contact of coupling connector
  • Poor contact of main relay connector
15 CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR  .
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from fuel injector on faulty cylinders.
  3. Turn the ignition switch to ON.
  4. Measure the voltage between the ECM and chassis ground for faulty cylinders.

    Connector & terminal

    #1 (B137) No. 8 (+) - Chassis ground (-):

    #2 (B137) No. 9 (+) - Chassis ground (-):

    #3 (B137) No. 10 (+) - Chassis ground (-):

    #4 (B137) No. 11 (+) - Chassis ground (-):

 Is the voltage 10 V or more? Repair the short circuit to power in harness between ECM and fuel injector connector. Go to step 16  .
16 CHECK FUEL INJECTOR  .
  1. Turn the ignition switch to OFF.
  2. Measure the resistance between fuel injector terminals on faulty cylinder.

    Terminals

    No. 1 - No. 2:

 Is the resistance less than 1 Ω? Replace the faulty fuel injector. Refer to FUEL INJECTOR . Go to step 17  .
17 CHECK INSTALLATION OF CAMSHAFT POSITION SENSOR/CRANKSHAFT POSITION SENSOR  . Is the camshaft position sensor or crankshaft position sensor loosely installed? Tighten the camshaft position sensor or crankshaft position sensor. Go to step 18  .
18 CHECK CRANK SPROCKET  .
Remove the timing belt cover. Refer to REMOVAL , Timing Belt Cover.		 Is the crank sprocket rusted or does it have damaged teeth? Replace the crank sprocket. Refer to CRANK SPROCKET . Go to step 19  .
19 CHECK INSTALLATION CONDITION OF TIMING BELT  .
Turn the crankshaft, and align alignment mark on crank sprocket with alignment mark on cylinder block.
ST 499987500 CRANKSHAFT SOCKET		 Is the timing belt dislocated from its proper position? Repair the installation condition of timing belt. Refer to TIMING BELT . Go to step 20  .
20 CHECK ELECTRONIC THROTTLE CONTROL RELAY  .
  1. Turn the ignition switch to OFF.
  2. Remove the electronic throttle control relay.
  3. Connect the battery to terminals No. 31 and No. 32 of electronic throttle control relay.
  4. Measure the resistance between electronic throttle control relay terminals.

    Terminals

    No. 29 - No. 30:

 Is the resistance less than 1 Ω? Go to step 21  . Replace the electronic throttle control relay. Refer to ELECTRONIC THROTTLE CONTROL RELAY .
21 CHECK POWER SUPPLY OF ELECTRONIC THROTTLE CONTROL RELAY  .
Measure the voltage between electronic throttle control relay connector and chassis ground.
Connector & terminal
(B220) No. 29 (+) - Chassis ground (-): 		 Is the voltage 10 V or more? Go to step 22  . Repair the open or ground short circuit of power supply circuit.
22 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY  .
  1. Disconnect the connectors from the ECM.
  2. Turn the ignition switch to ON.
  3. Measure the voltage between electronic throttle control relay connector and chassis ground.

    Connector & terminal

    (B220) No. 32 (+) - Chassis ground (-):

 Is the voltage 10 V or more? Repair the short circuit to power in the harness between ECM and electronic throttle control relay connector. Go to step 23  .
23 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY  .
  1. Turn the ignition switch to OFF.
  2. Measure the resistance between electronic throttle control relay connector and chassis ground.

    Connector & terminal

    (B220) No. 32 - Chassis ground:

    (B220) No. 30 - Chassis ground:

 Is the resistance 1 MΩ or more? Go to step 24  . Repair the short circuit in harness to ground between ECM and electronic throttle control relay connector.
24 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY  .
Measure the resistance between the ECM and electronic throttle control relay connector.
Connector & terminal
(B136) No. 21 - (B220) No. 32:
(B136) No. 1 - (B220) No. 30: 		 Is the resistance less than 1 Ω? Go to step 25  . Repair the open circuit in harness between ECM and electronic throttle control relay connector.
25 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL  .
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from ECM and electronic throttle control.
  3. Measure the resistance between ECM and chassis ground.

    Connector & terminal

    (B134) No. 19 - Chassis ground:

    (B134) No. 18 - Chassis ground:

    (B134) No. 18 - (B136) No. 6:

    (B134) No. 28 - Chassis ground:

 Is the resistance 1 MΩ or more? Go to step 26  . Repair the ground short circuit of harness between ECM and electronic throttle control connector.
26 CHECK SHORT CIRCUIT INSIDE THE ECM  .
  1. Connect the connector to ECM.
  2. Measure the resistance between electronic throttle control connector and engine ground.

    Connector & terminal

    (E57) No. 6 - Engine ground:

    (E57) No. 4 - Engine ground:

 Is the resistance 1 MΩ or more? Go to step 27  . Repair the ground short circuit of harness between ECM and electronic throttle control connector. Replace the ECM if defective. Refer to ENGINE CONTROL MODULE (ECM) .
27 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL  .
  1. Disconnect the connectors from the ECM.
  2. Measure the resistance of harness between ECM and electronic throttle control connector.

    Connector & terminal

    (B134) No. 18 - (E57) No. 6:

    (B134) No. 28 - (E57) No. 4:

    (B134) No. 29 - (E57) No. 3:

 Is the resistance less than 1 Ω? Go to step 28  . Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit in harness between ECM and electronic throttle control connector
  • Poor contact of coupling connector
28 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL  .
  1. Connect the ECM.
  2. Measure the resistance between electronic throttle control connector and engine ground.

    Connector & terminal

    (E57) No. 3 - Engine ground:

 Is the resistance less than 5 Ω? Go to step 29  . Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit of harness between ECM and engine ground
  • Poor contact in ECM connector
  • Poor contact of coupling connector
29 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL  .
  1. Turn the ignition switch to ON.
  2. Measure the voltage between electronic throttle control connector and engine ground.

    Connector & terminal

    (E57) No. 6 (+) - Engine ground (-):

    (E57) No. 4 (+) - Engine ground (-):

 Is the voltage 4.85 V or more? Repair the short circuit to power in the harness between ECM and electronic throttle control connector. Go to step 30  .
30 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL  .
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from the ECM.
  3. Measure the resistance between ECM connectors.

    Connector & terminal

    (B134) No. 19 - (B134) No. 18:

    (B134) No. 19 - (B134) No. 28:

 Is the resistance 1 MΩ or more? Go to step 31  . Repair the short circuit to power in the harness between ECM and electronic throttle control connector.
31 CHECK SENSOR OUTPUT  .
  1. Connect all connectors.
  2. Turn the ignition switch to ON.
  3. Read the data of main throttle sensor signal using Subaru Select Monitor.
NOTE: For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE". Refer to SUBARU SELECT MONITOR .
 Is the voltage 0.81 - 0.87 V? Go to step 32  . Repair poor contact of the electronic throttle control connector. Replace the electronic throttle control if defective. Refer to THROTTLE BODY .
32 CHECK SENSOR OUTPUT  .
Read the data of sub throttle sensor signal using Subaru Select Monitor.
NOTE: Subaru Select Monitor For detailed operation procedures, refer to "READ CURRENT DATA FOR ENGINE". Refer to SUBARU SELECT MONITOR .
 Is the voltage 1.64 - 1.70 V? Go to step 33  . Repair poor contact of the electronic throttle control connector. Replace the electronic throttle control if defective. Refer to THROTTLE BODY .
33 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL MOTOR  .
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from ECM and electronic throttle control.
  3. Measure the resistance between ECM and electronic throttle control connector.

    Connector & terminal

    (B137) No. 5 - (E57) No. 2:

    (B137) No. 4 - (E57) No. 1:

 Is the resistance less than 1 Ω? Go to step 34  . Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit in harness between ECM and electronic throttle control connector
  • Poor contact of coupling connector
34 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL MOTOR  .
  1. Connect the connector to ECM.
  2. Turn the ignition switch to ON.
  3. Measure the voltage between electronic throttle control connector and engine ground.

    Connector & terminal

    (E57) No. 2 (+) - Engine ground (-):

    (E57) No. 1 (+) - Engine ground (-):

 Is the voltage 5 V or more? Repair the short circuit to power in the harness between ECM and electronic throttle control connector. Go to step 35  .
35 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL MOTOR  .
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from the ECM.
  3. Measure the resistance between electronic throttle control connector and engine ground.

    Connector & terminal

    (E57) No. 2 - Engine ground:

    (E57) No. 1 - Engine ground:

 Is the resistance 1 MΩ or more? Go to step 36  . Repair the short circuit to ground in harness between ECM and electronic throttle control connector.
36 CHECK ELECTRONIC THROTTLE CONTROL MOTOR HARNESS  .
Measure the resistance between the electronic throttle control connector terminals.
Connector & terminal
(E57) No. 2 - (E57) No. 1: 		 Is the resistance 1 MΩ or more? Go to step 37  . Repair the short circuit of harness between ECM and electronic throttle control connector.
37 CHECK ELECTRONIC THROTTLE CONTROL GROUND CIRCUIT  .
Measure the resistance between ECM and chassis ground.
Connector & terminal
(B134) No. 5 - Chassis ground:
(B137) No. 1 - Chassis ground:
(B137) No. 2 - Chassis ground:
(B137) No. 3 - Chassis ground:
(B137) No. 7 - Chassis ground: 		 Is the resistance less than 5 Ω? Go to step 38  . Repair the harness and connector.
NOTE: In this case, repair the following item:
  • Open circuit of harness between ECM and engine ground
  • Poor contact of coupling connector
38 CHECK ELECTRONIC THROTTLE CONTROL  .
Measure the resistance between electronic throttle control terminals.
Terminals
No. I - No. 2: 		 Is the resistance 50 Ω or less? Go to step 39  . Replace the electronic throttle control. Refer to THROTTLE BODY .
39 CHECK ELECTRONIC THROTTLE CONTROL  .
Move the throttle valve to the fully open and fully closed positions with fingers.
Check that the valve returns to the specified position when releasing fingers.		 Does the valve return to the specified position? Standard value: 3 mm (0.12 in) from fully closed position Repair the poor contact of the ECM connector. Replace the electronic throttle control. Refer to THROTTLE BODY .
scientia non olet · About LEMON Manuals
