Reduction Gear

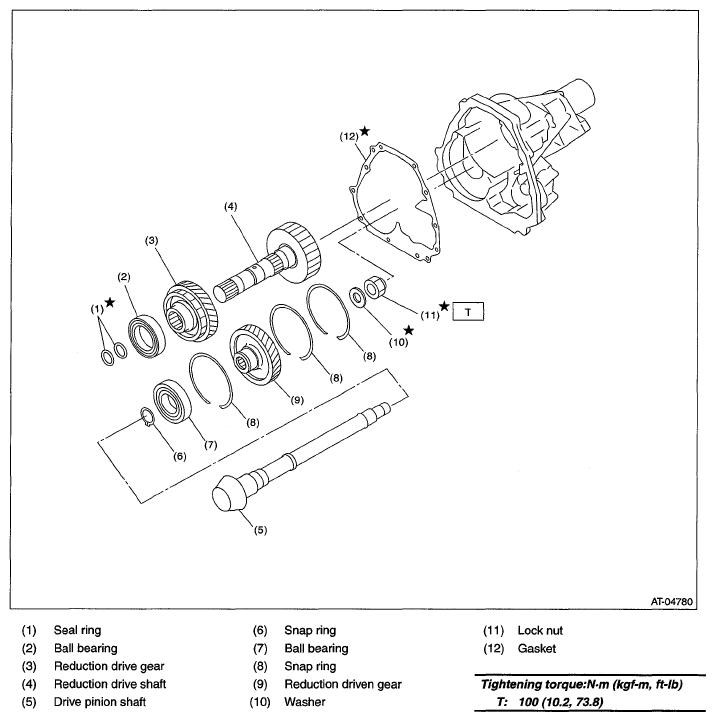

Fig 1: Exploded View Of Reduction Gear With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
