Torque Converter And Case

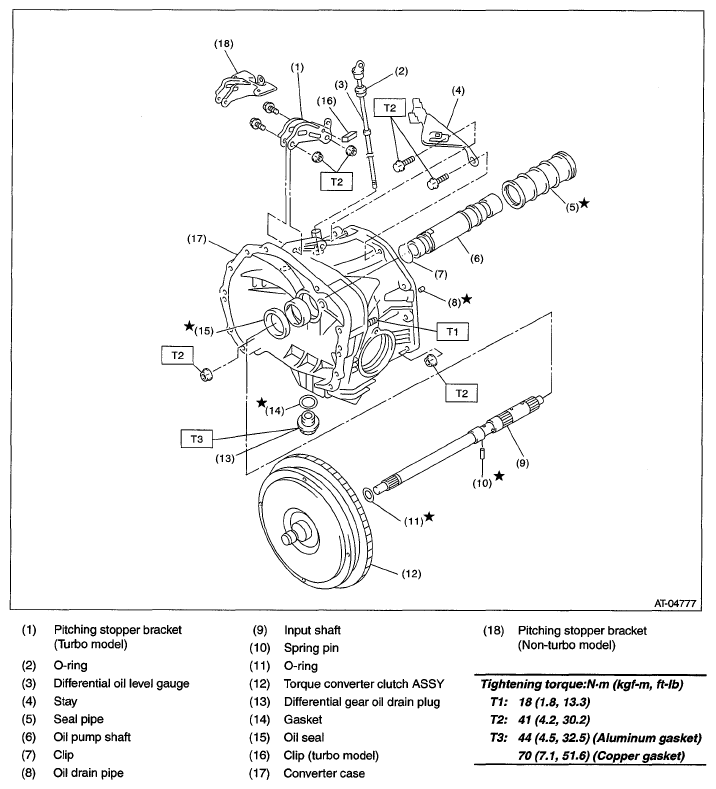

Fig 1: Exploded View Of Torque Converter And Case With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
