Timing Cover: Service and Repair
Timing Belt CoverREMOVAL
NOTE: When replacing the single part, perform the work with the engine installed to body.
1. Remove the secondary air pump.
2. Remove the V-belts.
3. Remove the crank pulley.

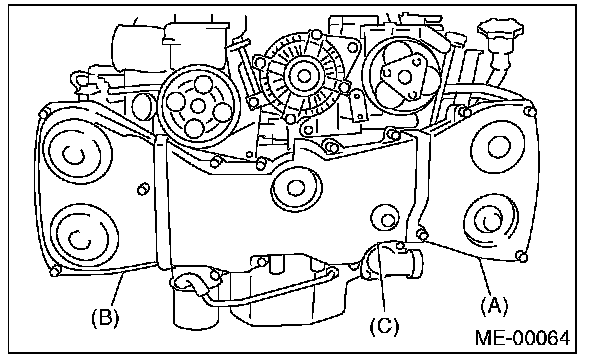

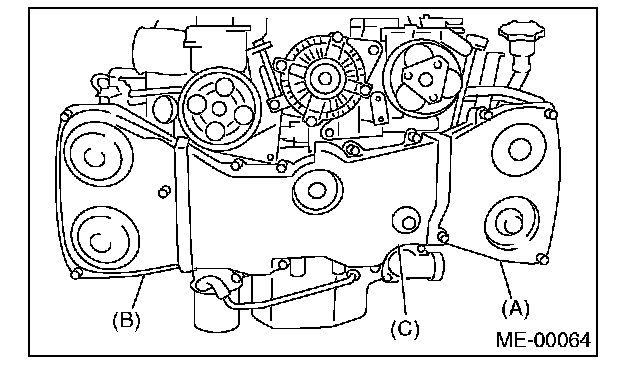

4. Remove the timing belt cover LH (A).
5. Remove the timing belt cover RH (B).
6. Remove the front timing belt cover (C).
INSTALLATION
1. Install the front timing belt cover (C).
Tightening torque: 5 N-m (0.5 kgf-m, 3.7 ft-lb)
2. Install the timing belt cover RH (B).
Tightening torque: 5 N-m (0.5 kgf-m, 3.7 ft-lb)
3. Install the timing belt cover LH (A).
Tightening torque: 5 N-m (0.5 kgf-m, 3.7 ft-lb)
4. Install the crank pulley.
5. Install the V-belts.
6. Install the secondary air pump.
INSPECTION
Check the timing belt cover for damage.
