Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL

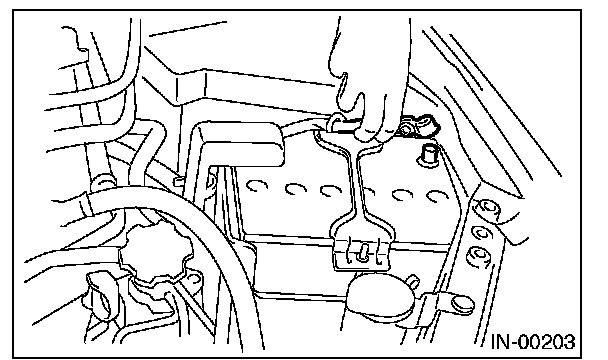

1. Disconnect the ground cable from battery.

2. Remove the glove box.

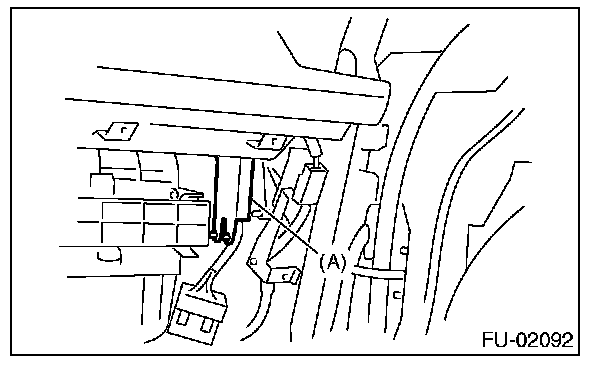

3. Remove the harness cover (A).

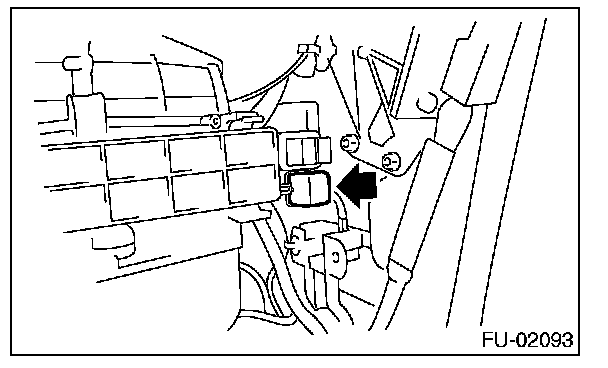

4. Disconnect the connectors from main relay.

INSTALLATION

Install in the reverse order of removal.
