Transmission Control Module (TCM) I/O Signal

Transmission Control Module (TCM) I/O Signal

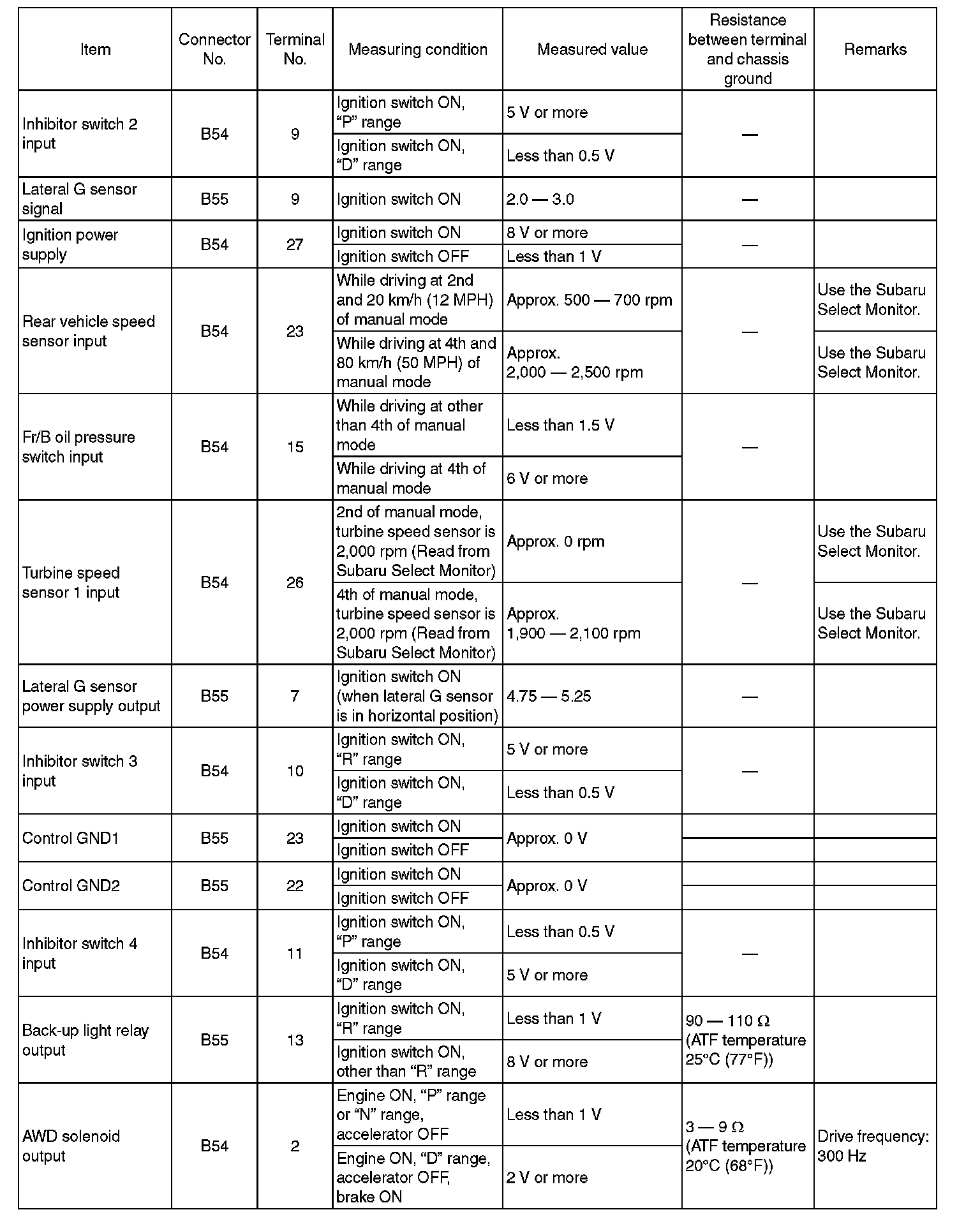

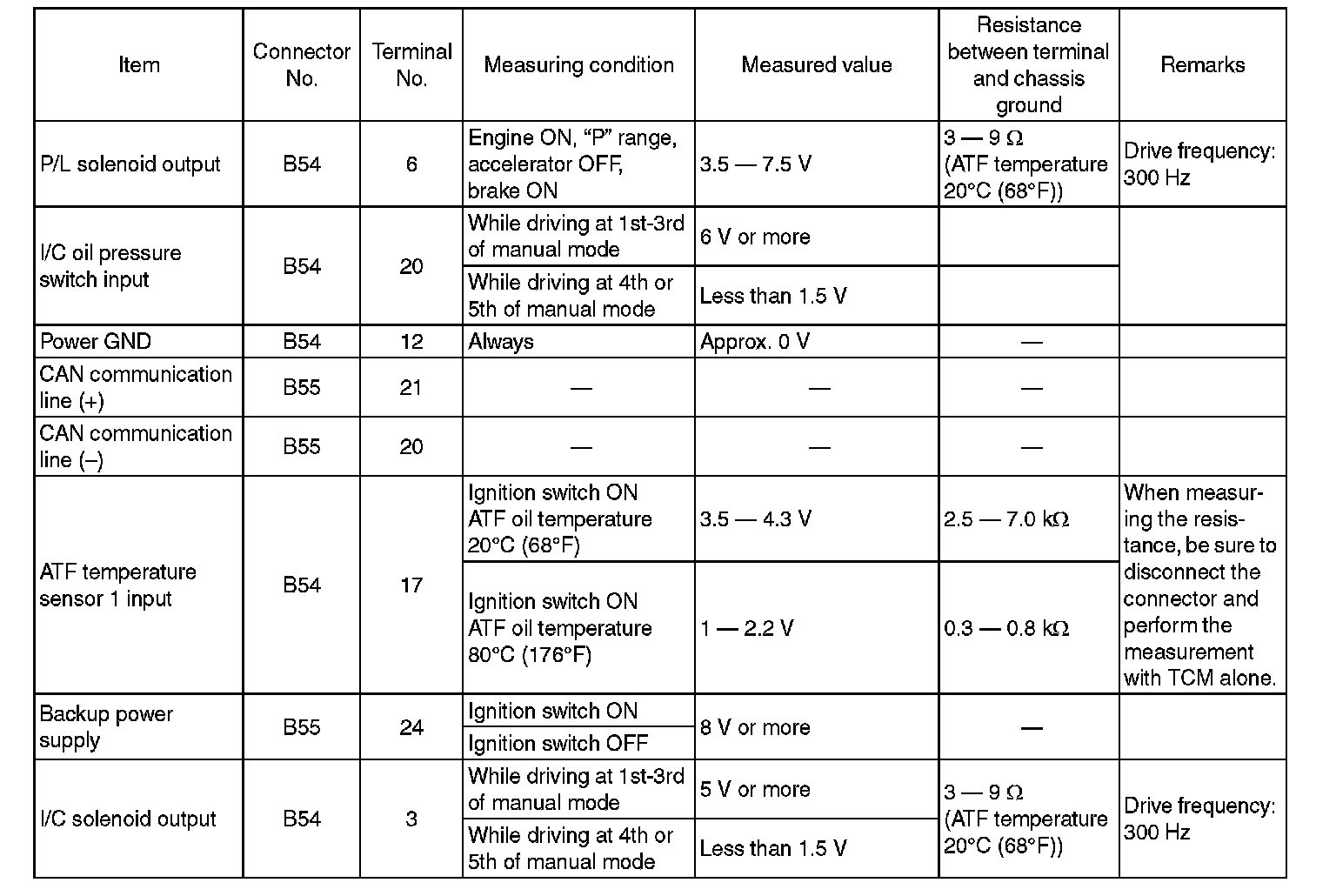

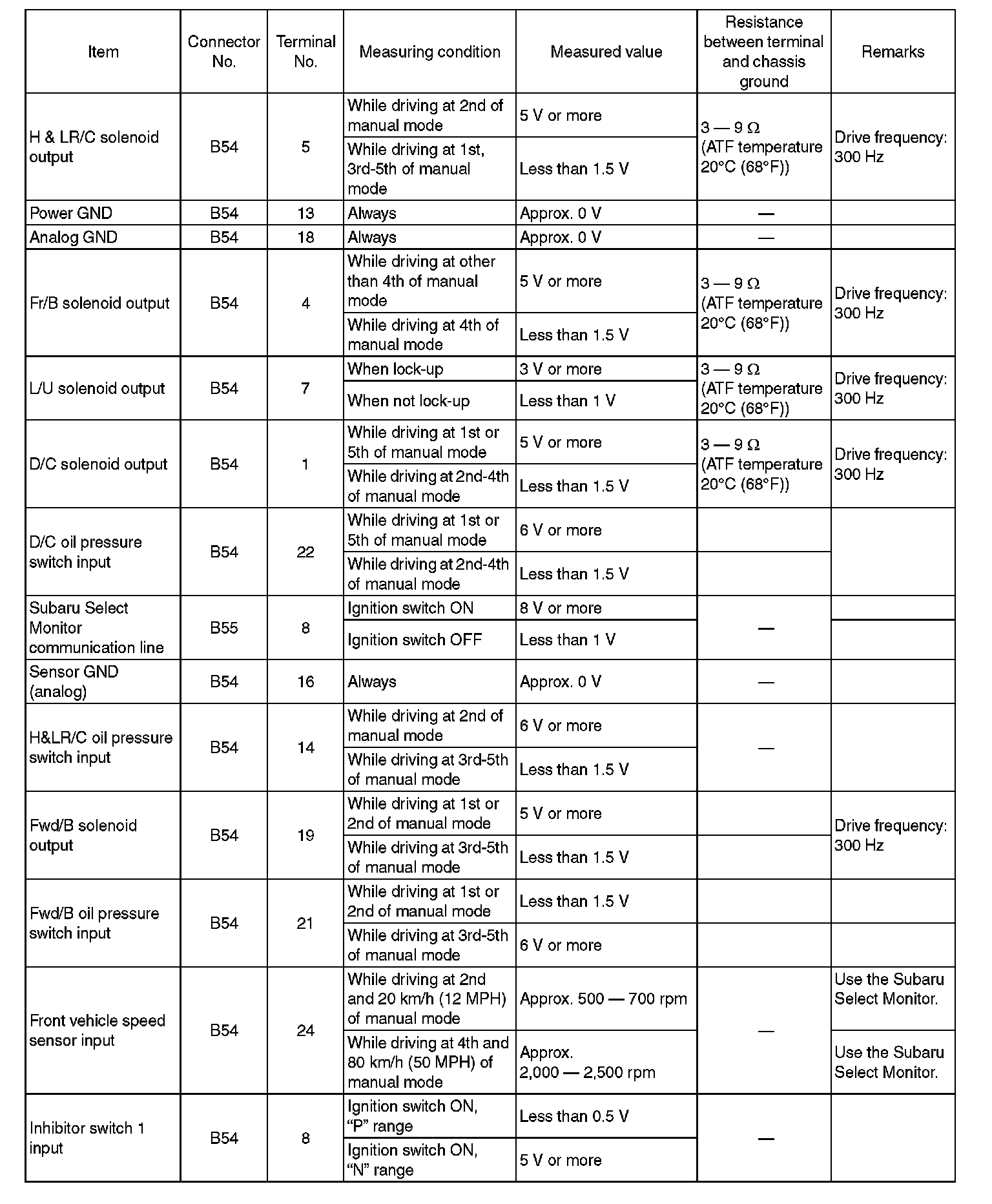

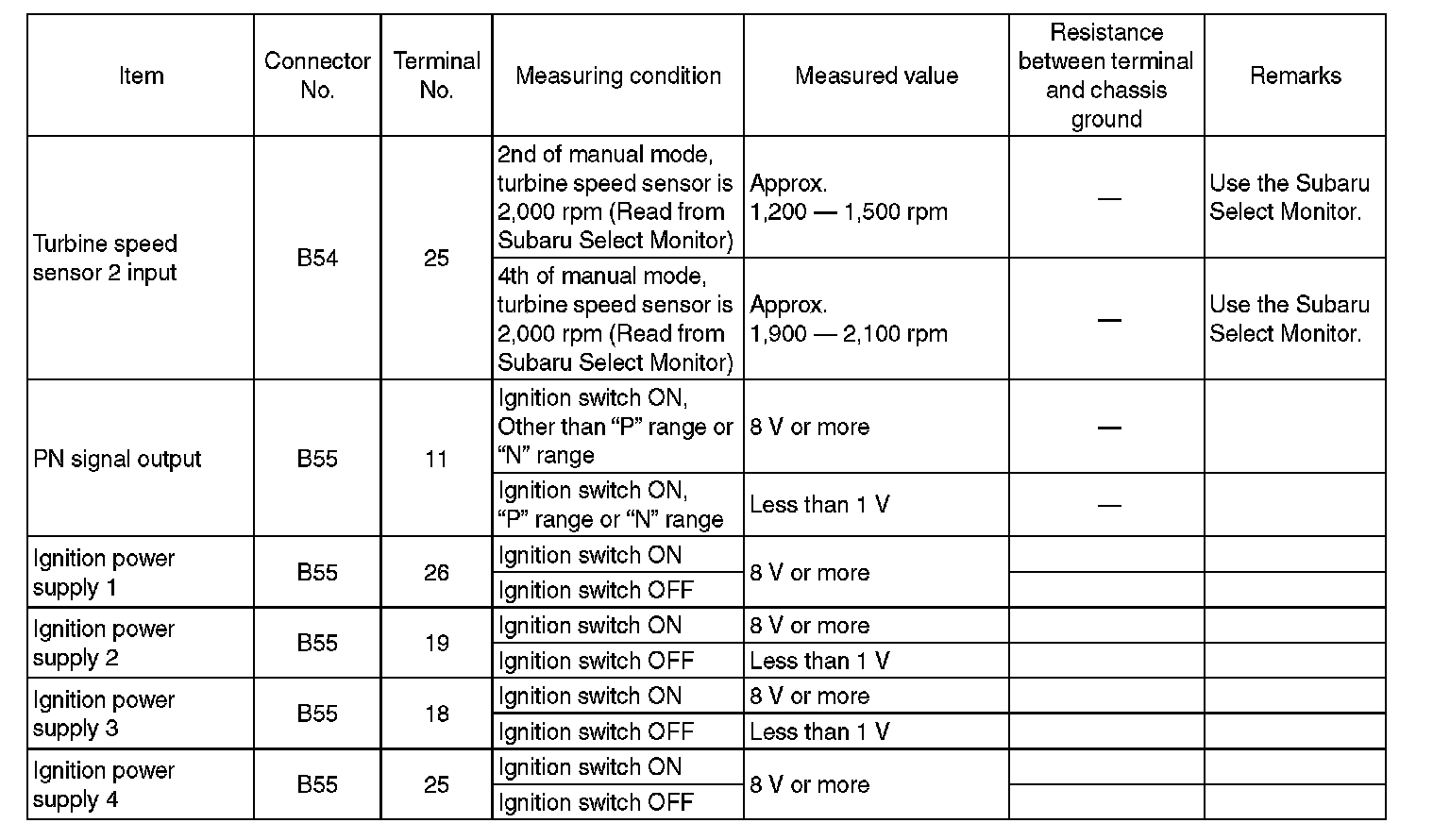

ELECTRICAL SPECIFICATION





NOTE: The measurement should be performed after warming up.
