Control Module

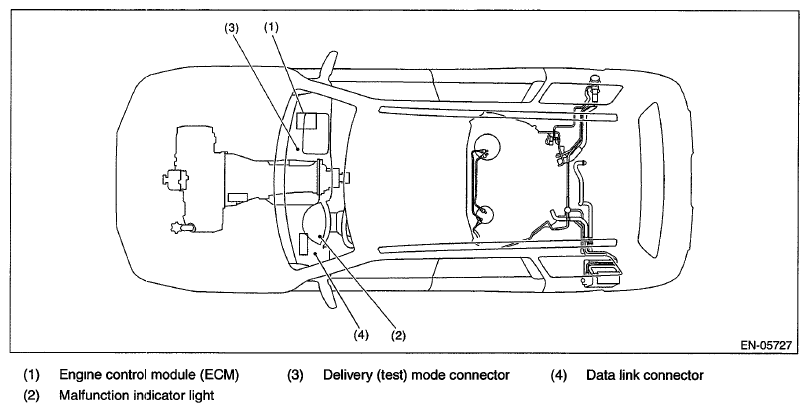

Fig 1: Identifying Control Module Components (1 Of 2)
G06334727Courtesy of SUBARU OF AMERICA, INC.

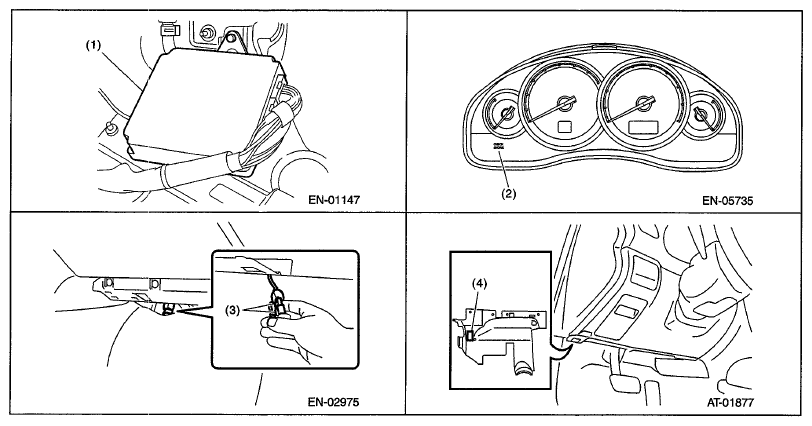

Fig 2: Identifying Control Module Components (2 Of 2)
G06334728Courtesy of SUBARU OF AMERICA, INC.
