Front Door Glass

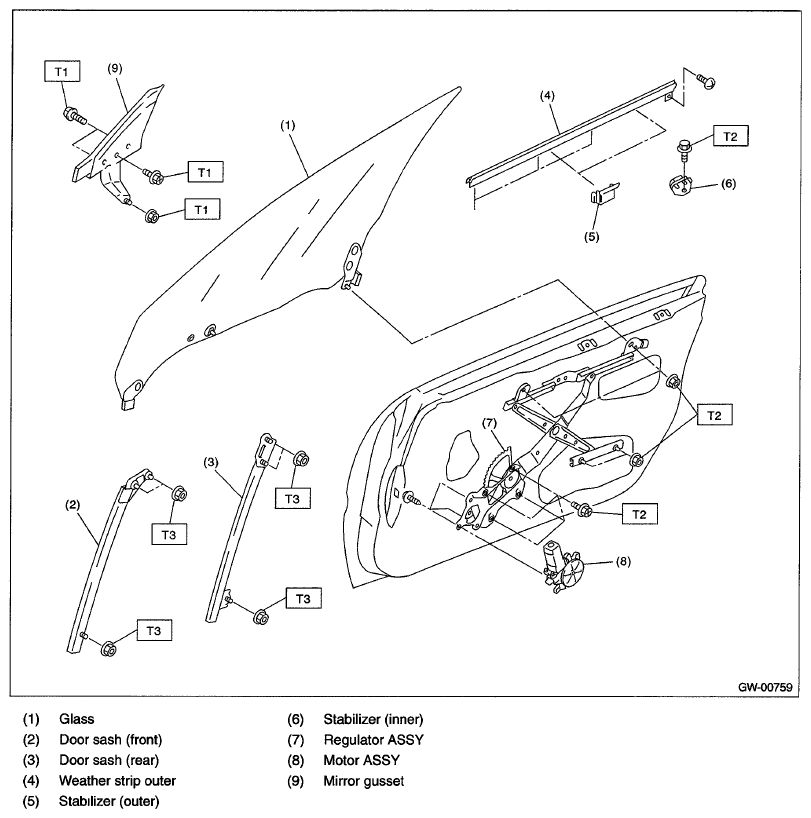

Fig 1: Identifying Front Door Glass Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.3)

T2: 7.5 (0.76, 5.5)

T3: 14 (1.43, 10.1)
