Components With Torque Specifications: Mirror

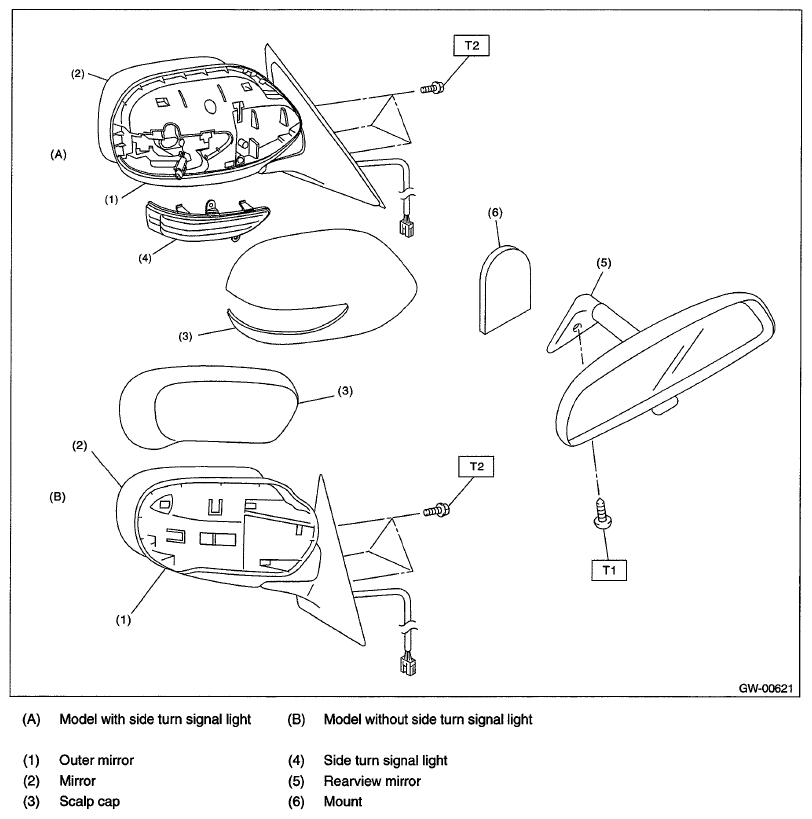

Fig 1: Identifying Mirror Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.9 (0.19, 1.4)

T2: 4.5 (0.46, 3.3)
