Outer Mirror Assembly: Removal

  1. Remove the mirror gusset cover.

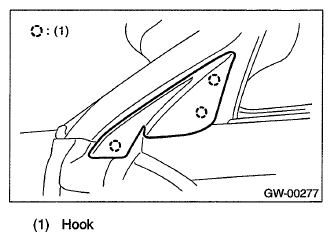

    Fig 1: Identifying Hook
    G06340156Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the door trim. Ref. to REMOVAL , Door Trim.
  3. Disconnect the outer mirror connector.
  4. Remove the screws to remove outer mirror assembly.
    Fig 2: Locating Outer Mirror Assembly Screws
    G05022629Courtesy of SUBARU OF AMERICA, INC.
