Engine Oil Flow

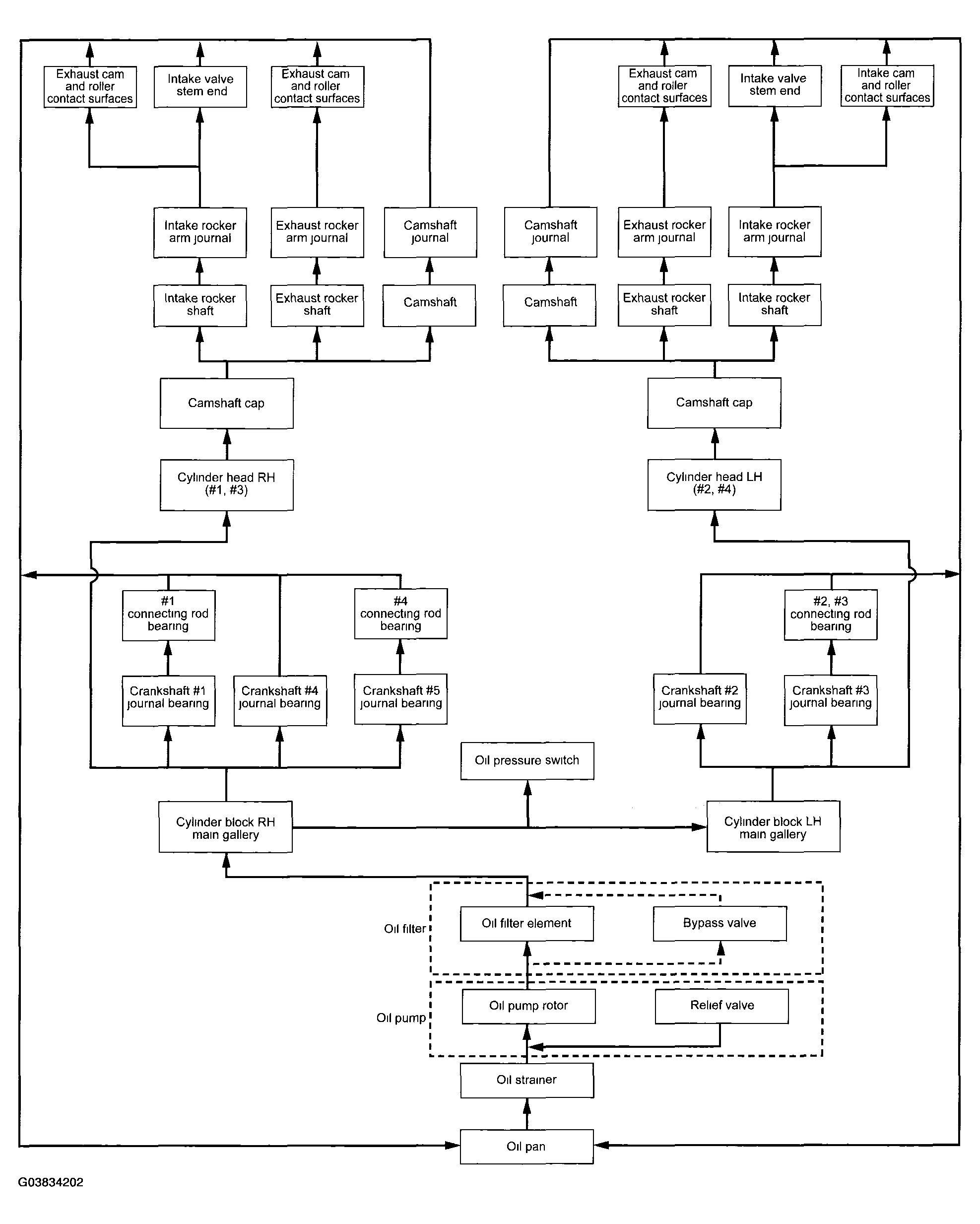

Fig 1: Engine Oil Flow Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
