Diagnostics for Engine Starting Failure: Procedure

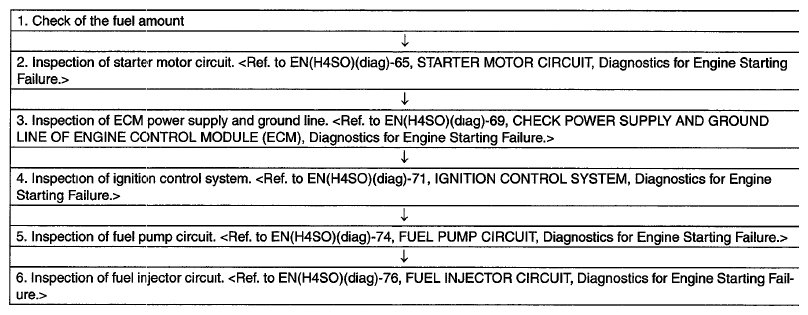

Fig 1: Engine Starting Failure Diagnostic Procedure
G06334773Courtesy of SUBARU OF AMERICA, INC.
