DTC P2016 Intake Manifold Runner Position Sensor/Switch Circuit Low (Bank 1): Wiring Diagram

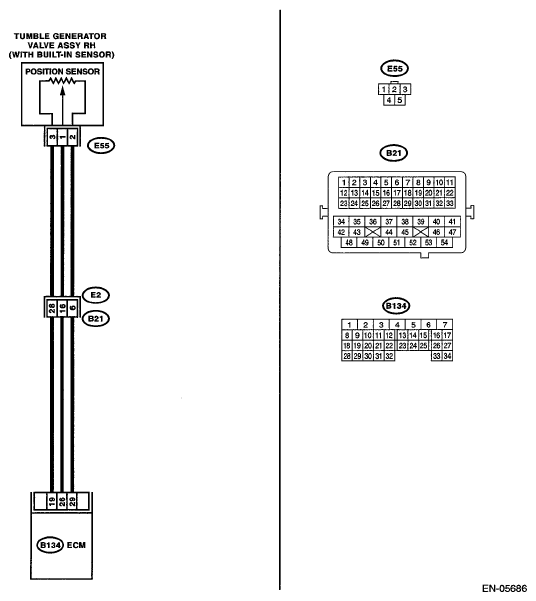

Fig 1: Intake Manifold Runner Position Sensor/Switch Circuit Low - Wiring Diagram (Bank 1)

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK CURRENT DATA. Start the engine. Read the data of tumble generator valve position sensor signal (RH) using Subaru Select Monitor or general scan tool. NOTE: Subaru Select Monitor For detailed operation procedure, refer to SUBARU SELECT MONITOR . General scan tool For detailed operation procedures, refer to the general scan tool operation manual.	Is the voltage less than 0.2 V?	Go to step 2.	Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector may be the cause.
2 CHECK POWER SUPPLY OF TUMBLE GENERATOR VALVE ASSEMBLY RH. Turn the ignition switch to OFF. Disconnect the connector from tumble generator valve assembly RH. Turn the ignition switch to ON. Measure the voltage between tumble generator valve assembly RH connector and engine ground. Connector & terminal (E55) No. 3 (+) - Engine ground (-):	Is the voltage 4.5 V or more?	Go to step 3.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between ECM and tumble generator valve assembly RH connector Poor contact in ECM connector Poor contact of coupling connector
3 CHECK HARNESS BETWEEN ECM AND TUMBLE GENERATOR VALVE ASSEMBLY RH CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM. Measure the resistance of harness between ECM and tumble generator valve assembly RH. Connector & terminal (B134) No. 26 - (E55) No. 1:	Is the resistance less than 1 Ω?	Go to step 4.	Repair the harness and connector. NOTE: In this case, repair the following item: Open circuit in harness between ECM and tumble generator valve assembly RH connector Poor contact of coupling connector
4 CHECK HARNESS BETWEEN ECM AND TUMBLE GENERATOR VALVE ASSEMBLY RH CONNECTOR. Measure the resistance between ECM and chassis ground. Connector & terminal (B134) No. 26 - Chassis ground:	Is the resistance 1 MΩ or more?	Go to step 5.	Repair the short circuit to ground in harness between ECM and tumble generator valve assembly RH connector.
5 CHECK POOR CONTACT. Check for poor contact of tumble generator valve assembly RH connector.	Is there poor contact in ECM or the tumble generator valve assembly RH connector?	Repair the poor contact in ECM or tumble generator valve assembly RH connector.	Replace the tumble generator valve assembly RH. Refer to TUMBLE GENERATOR VALVE ASSEMBLY .
