Even When The Si-Drive Mode Is Changed, The Multi Information Display Does Not Change, And The Mode Does Not Switch: Wiring Diagram

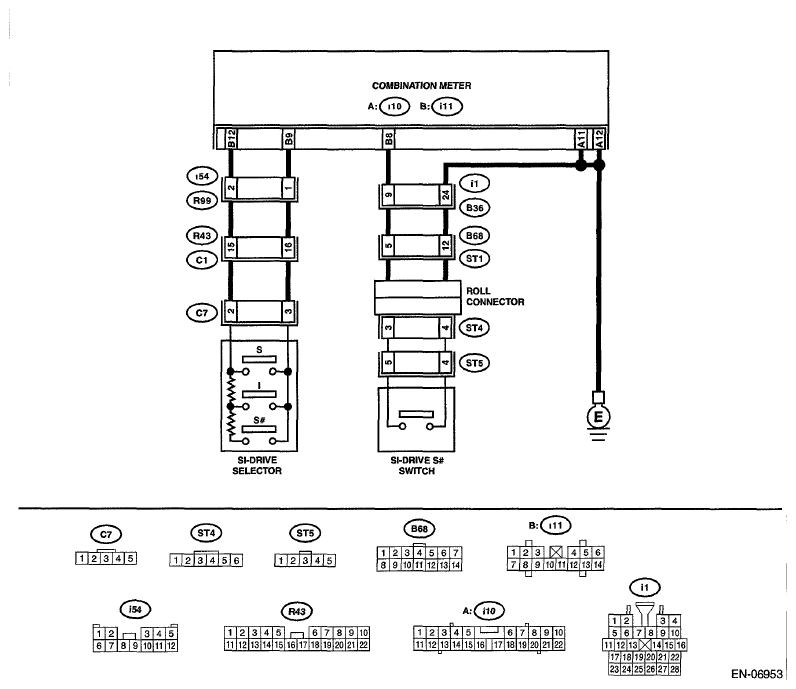

Fig 1: Combination Meter - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE

Step	Check	Yes	No
1 CHECK SI-DRIVE SELECTOR.  Disconnect the connector from the multi-information display meter. Measure the resistance between connectors when the SI-DRIVE selector is operated. Connector & terminal  (i11) No. 9 - (i11) No. 12:	Does the resistance change as shown below? S#: 2.14 - 3.2 kΩ I: 0.8 - 1.2 kΩ S: Less than 10 Ω	Go to step 2.	Go to step 5.
2 CHECK SI-DRIVE S# SWITCH.  Hold down the SI-DRIVE S# switch on the steering wheel. Measure the resistance of harness between the multi-information display meter connector and chassis ground. Connector & terminal  (i11) No. 8 - Chassis ground:	Is the resistance less than 10 Ω?	Go to step 3.	Go to step 6.
3 CHECK POOR CONTACT.  Check the following items. Cracked or improperly connected connector Broken connector pin Disconnection connector terminal	Is there any abnormal condition?	Correct the cause of trouble.	Go to step 4.
4 RECHECK FAULT.  Connect all connectors. Change the SI-DRIVE mode.	Is there any abnormal condition?	Replace the multi-information display meter. Refer to COMBINATION METER .	The circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector may be the cause.
5 CHECK SI-DRIVE SELECTOR HARNESS AND CONNECTOR.  Check the following items. Short or open circuit in the harness Improperly connected or loose terminal in the SI-DRIVE selector connector Improperly connected or loose terminal in coupling connector	Is there any abnormal condition?	Correct the cause of trouble.	Go to step 7.
6 CHECK SI-DRIVE S# SWITCH HARNESS AND CONNECTOR.  Check the following items. Short or open circuit in the harness Improperly connected or loose terminal in steering roll connector Improperly connected or loose terminal in coupling connector	Is there any abnormal condition?	Correct the cause of trouble.	Go to step 7.
7 RECHECK FAULT.  Connect all connectors. Change the SI-DRIVE mode.	Is there any abnormal condition?	Replace the SI-DRIVE selector or SI-DRIVE S# switch. Refer to SI-DRIVE (SUBARU INTELLIGENT DRIVE) SELECTOR . Refer to SI-DRIVE (SUBARU INTELLIGENT DRIVE) S# SWITCH .	The circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector may be the cause.
