ON Charge Pipe: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil charge pipe with a new O-ring.
    NOTE: Use new bolts.

    Tightening torque: 38 N.m (3.9 kgf-m, 28.0 ft-lb)

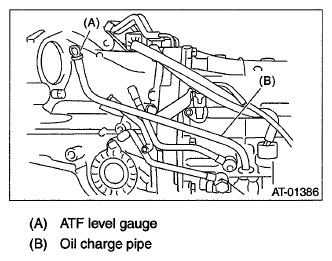

    Fig 1: Identifying ATF Level Gauge And Oil Charge Pipe
    G06337682Courtesy of SUBARU OF AMERICA, INC.
  2. Install the intercooler. (Turbo model) Refer to INSTALLATION , Intercooler.
  3. Install the air intake chamber. (Non-turbo model) Refer to INSTALLATION , Air Intake Chamber.
