Starter Motor Circuit

STARTER MOTOR CIRCUIT

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode, and Inspection Mode Preparation For the Inspection Mode

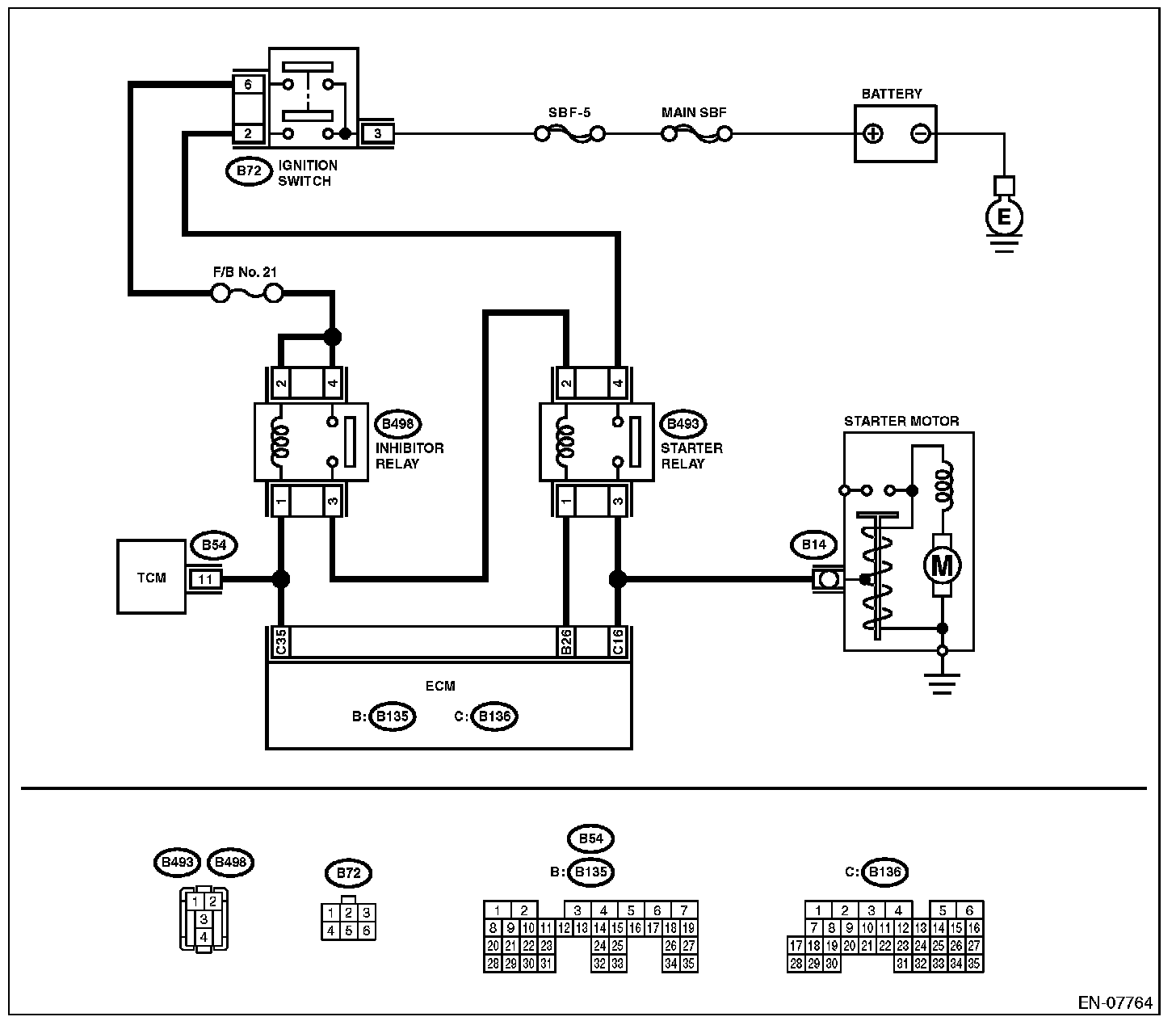

WIRING DIAGRAM:

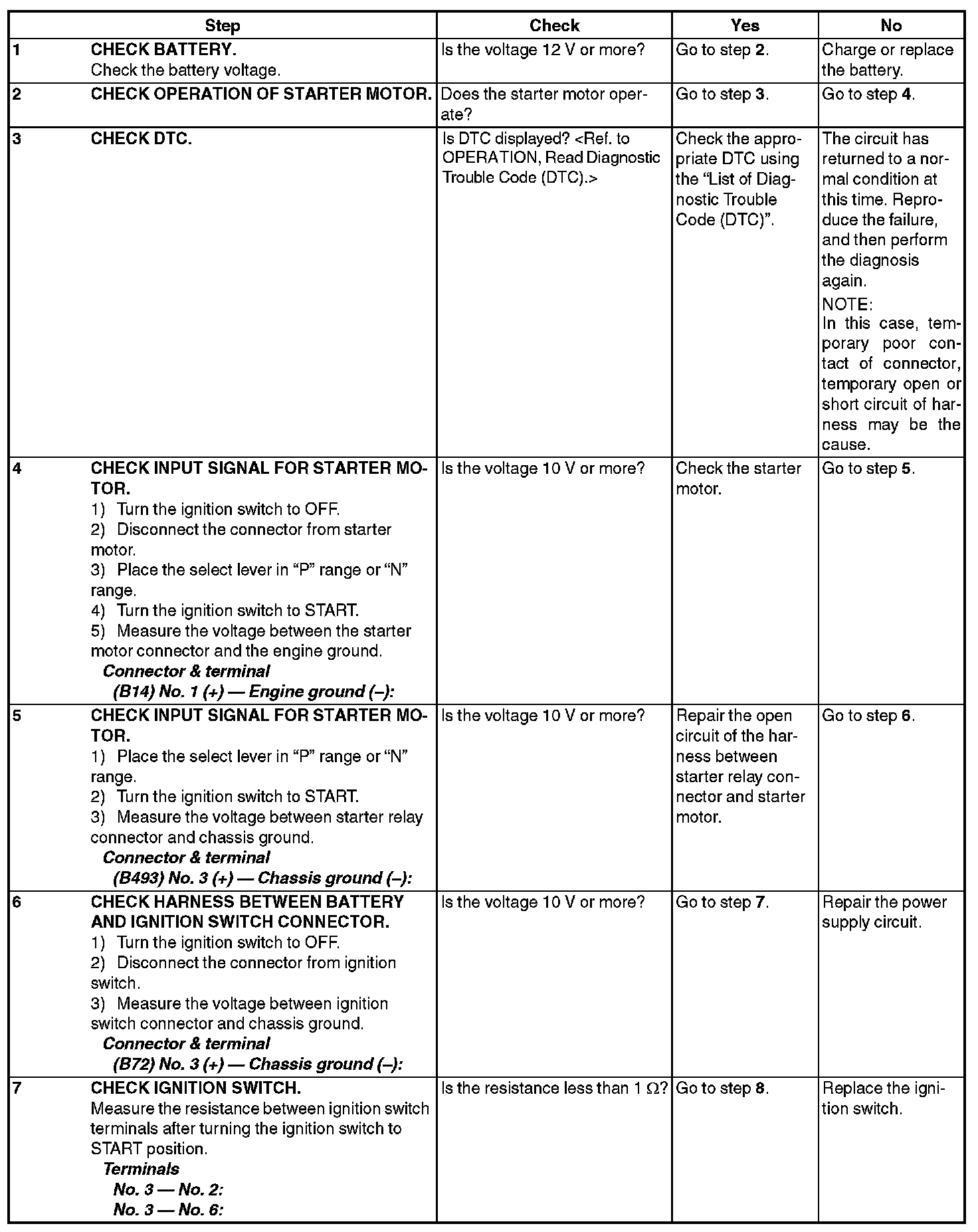

Step 1-7:

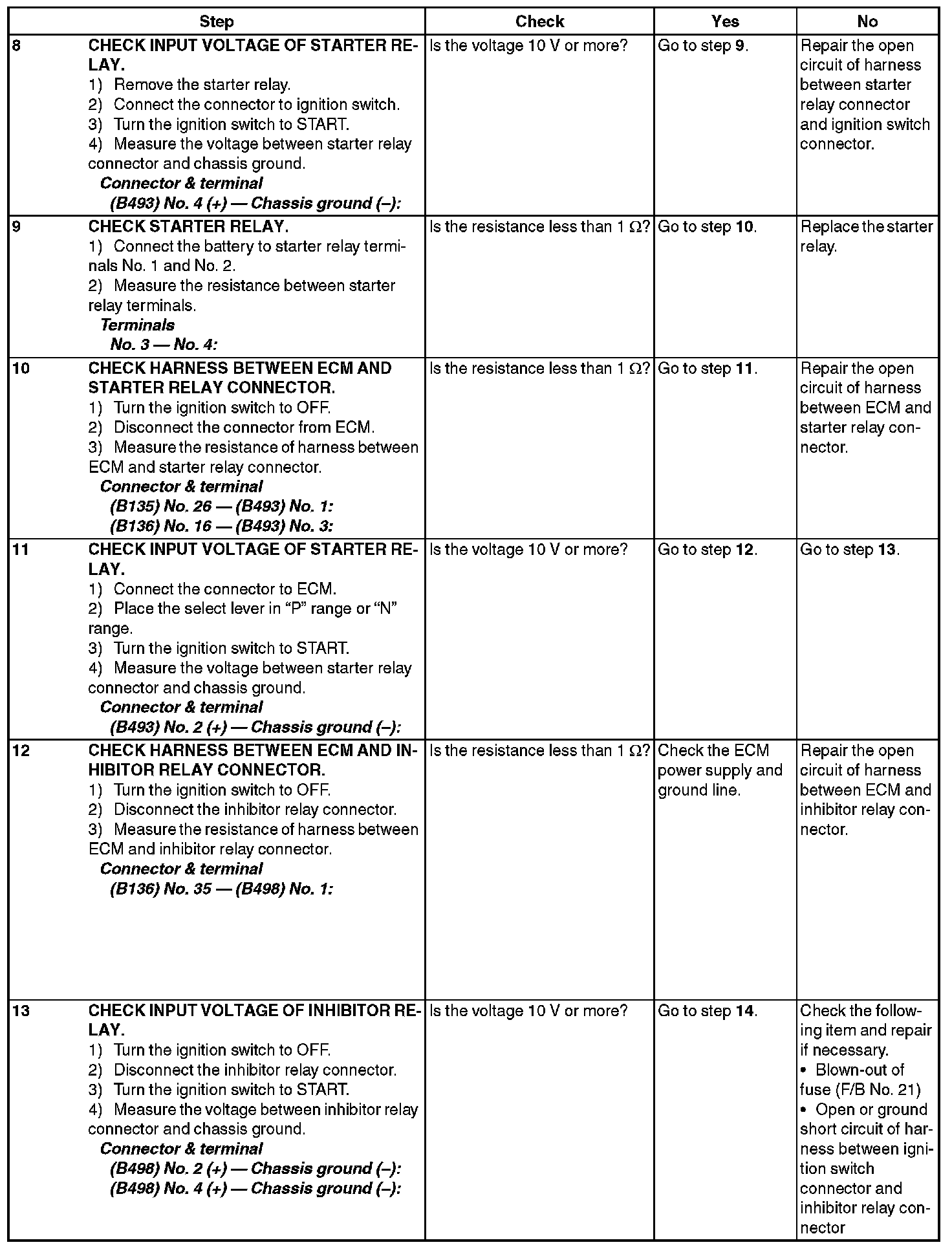

Step 8-13:

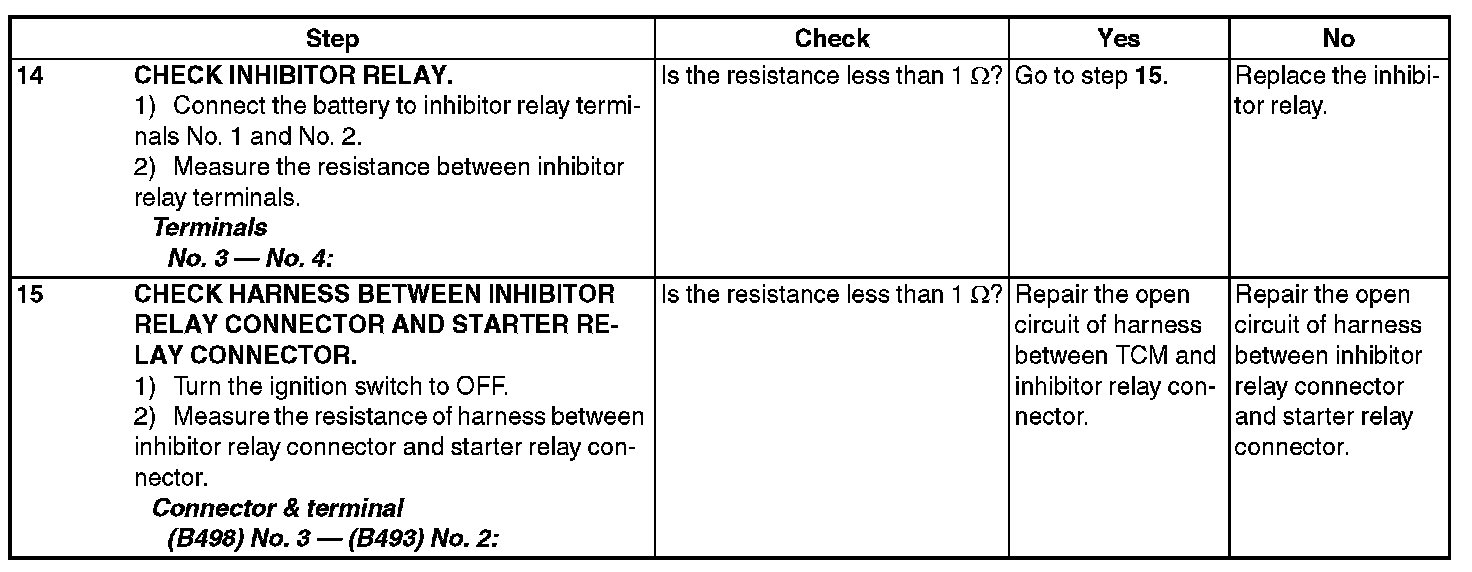

Step 14-15:
