Engine Lubrication
COMPONENT
^

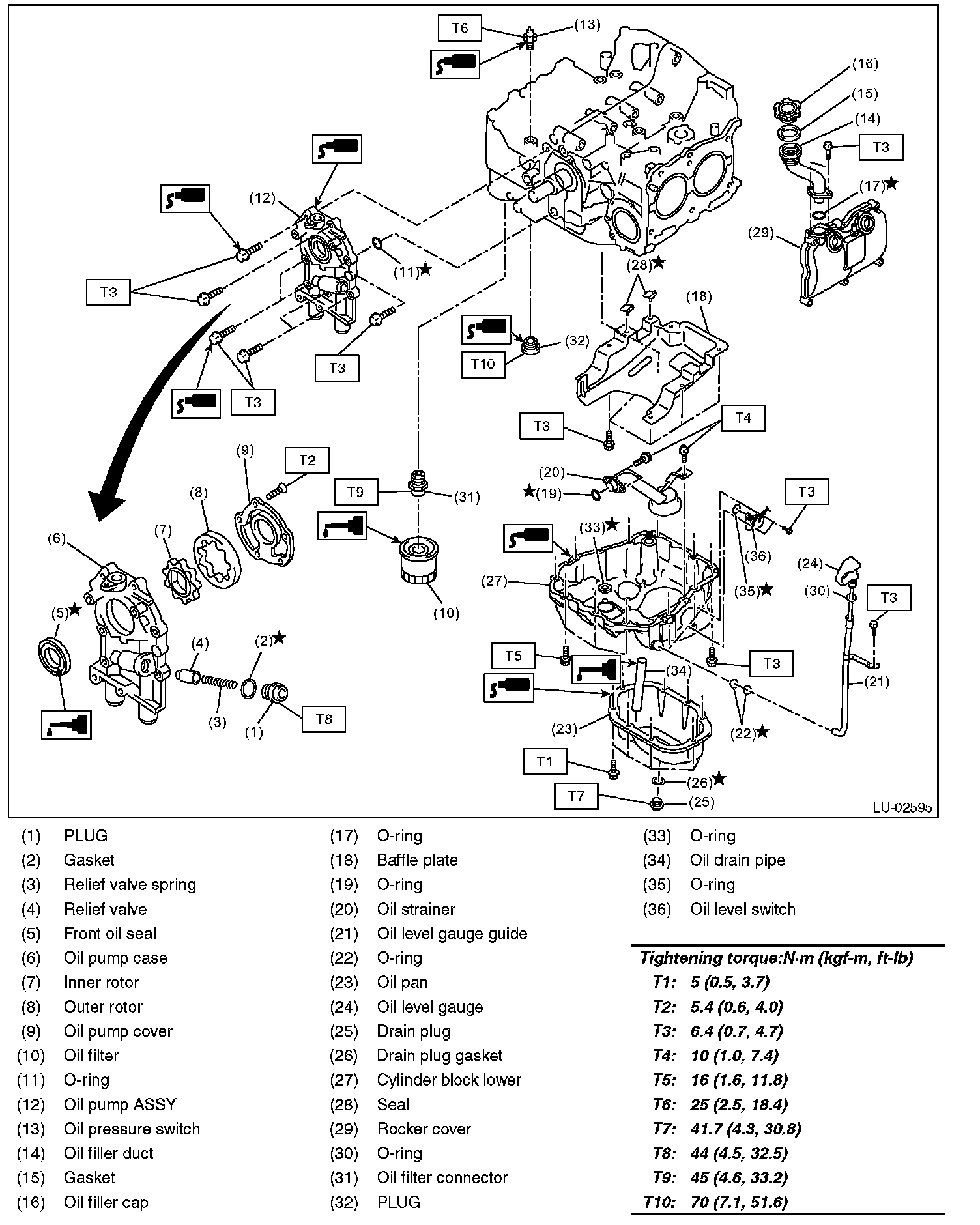

2.5 L non-turbo model
2.5 L non-turbo model:
^

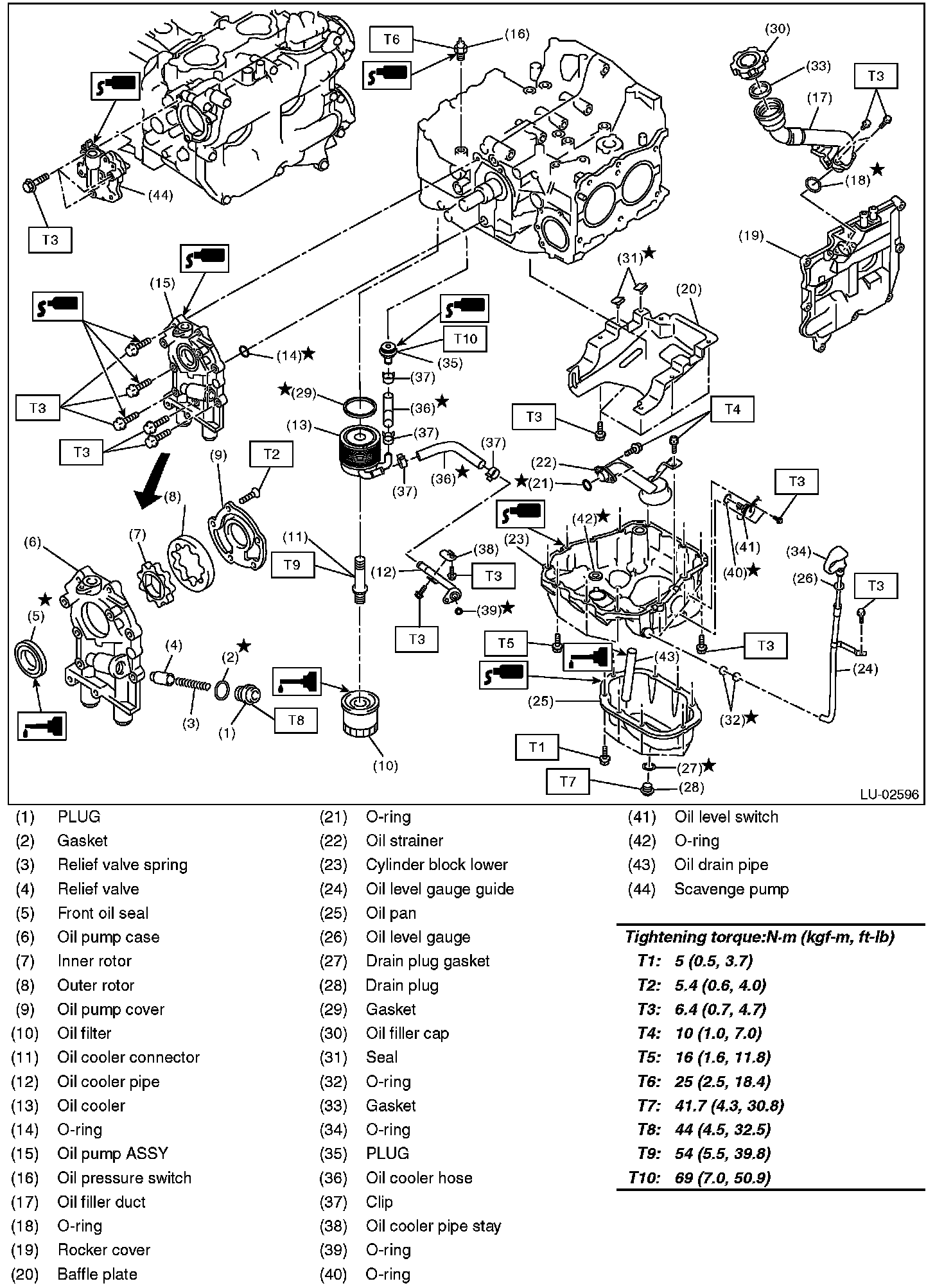

Turbo model
2.5L turbo model:
