Cylinder Block

CYLINDER BLOCK

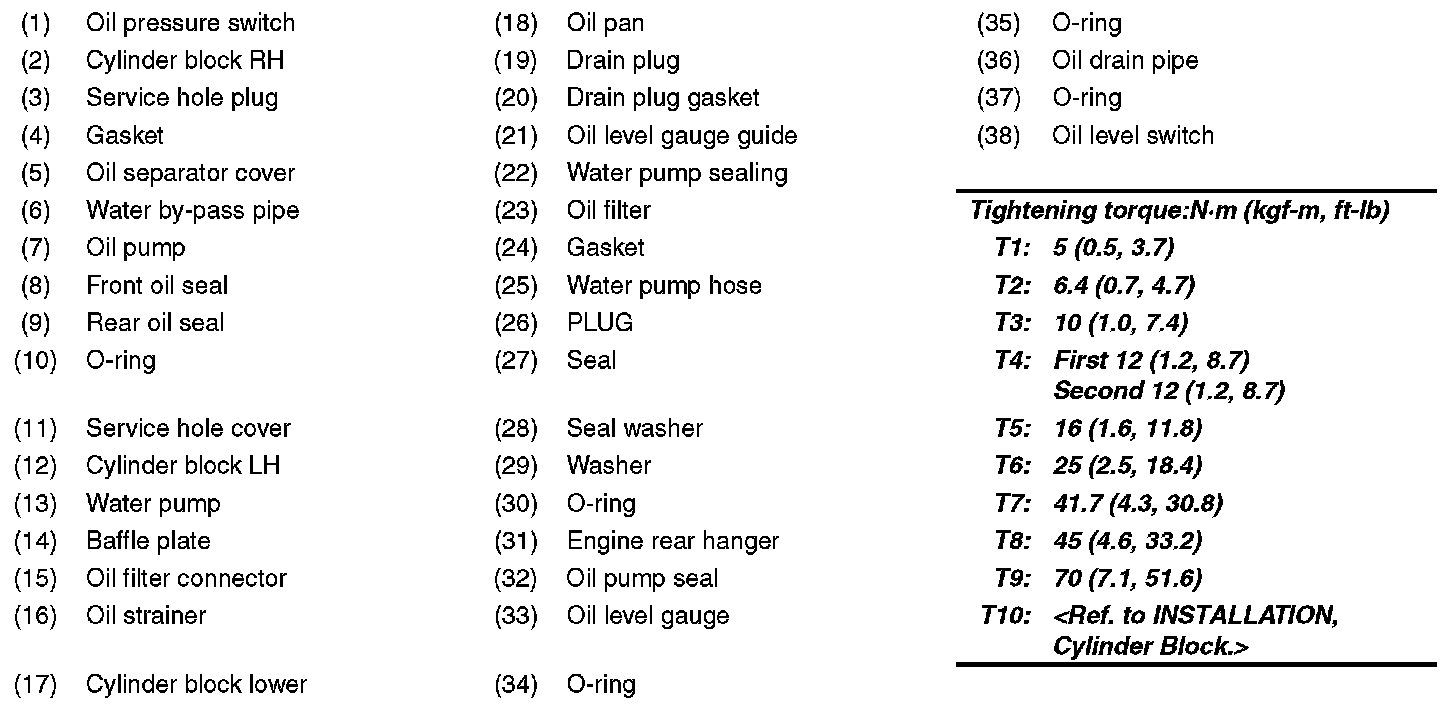

Cylinder Block Components (Part 1):

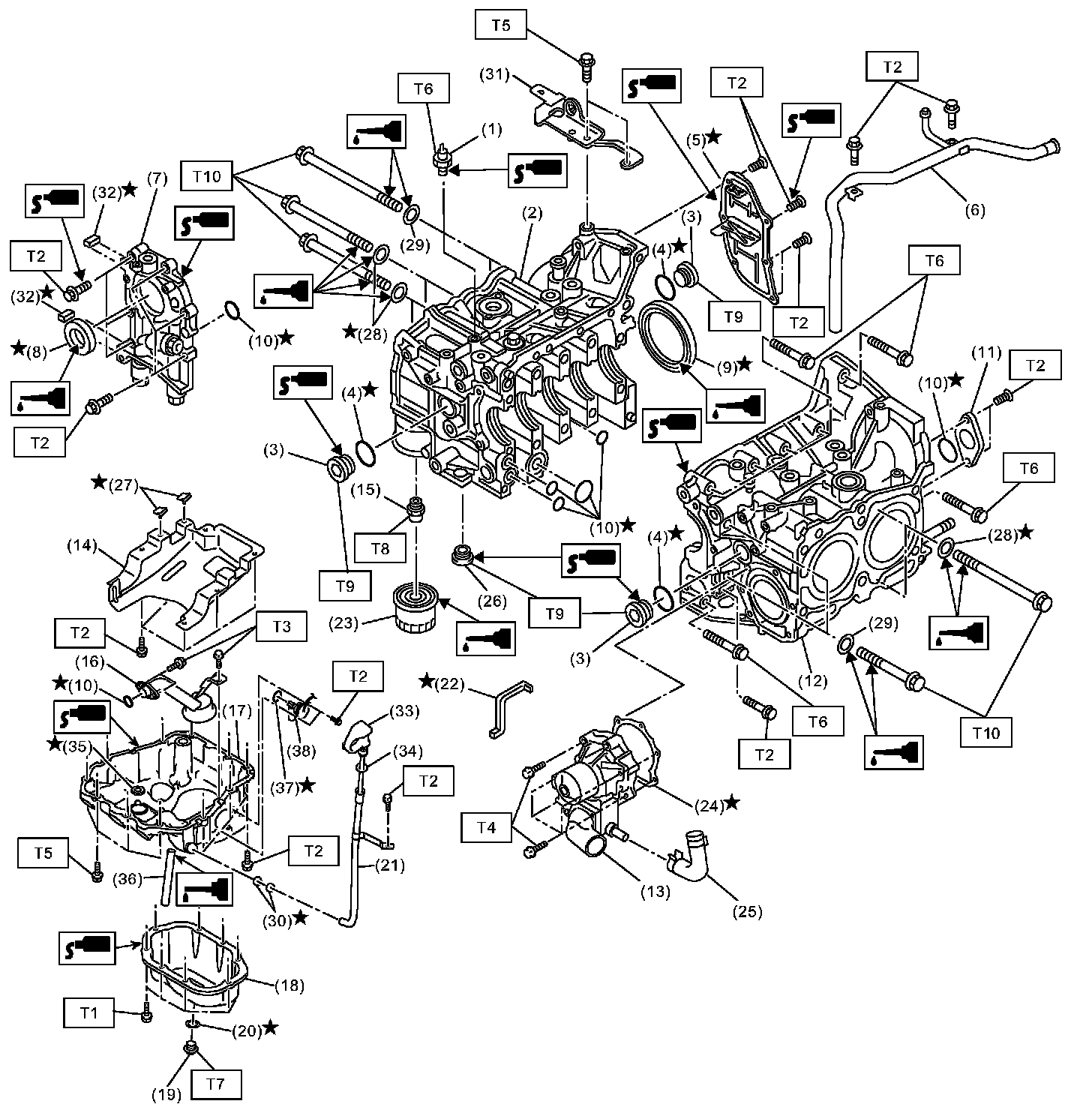

Cylinder Block Components (Part 2):
