Front Suspension

SPECIFICATION

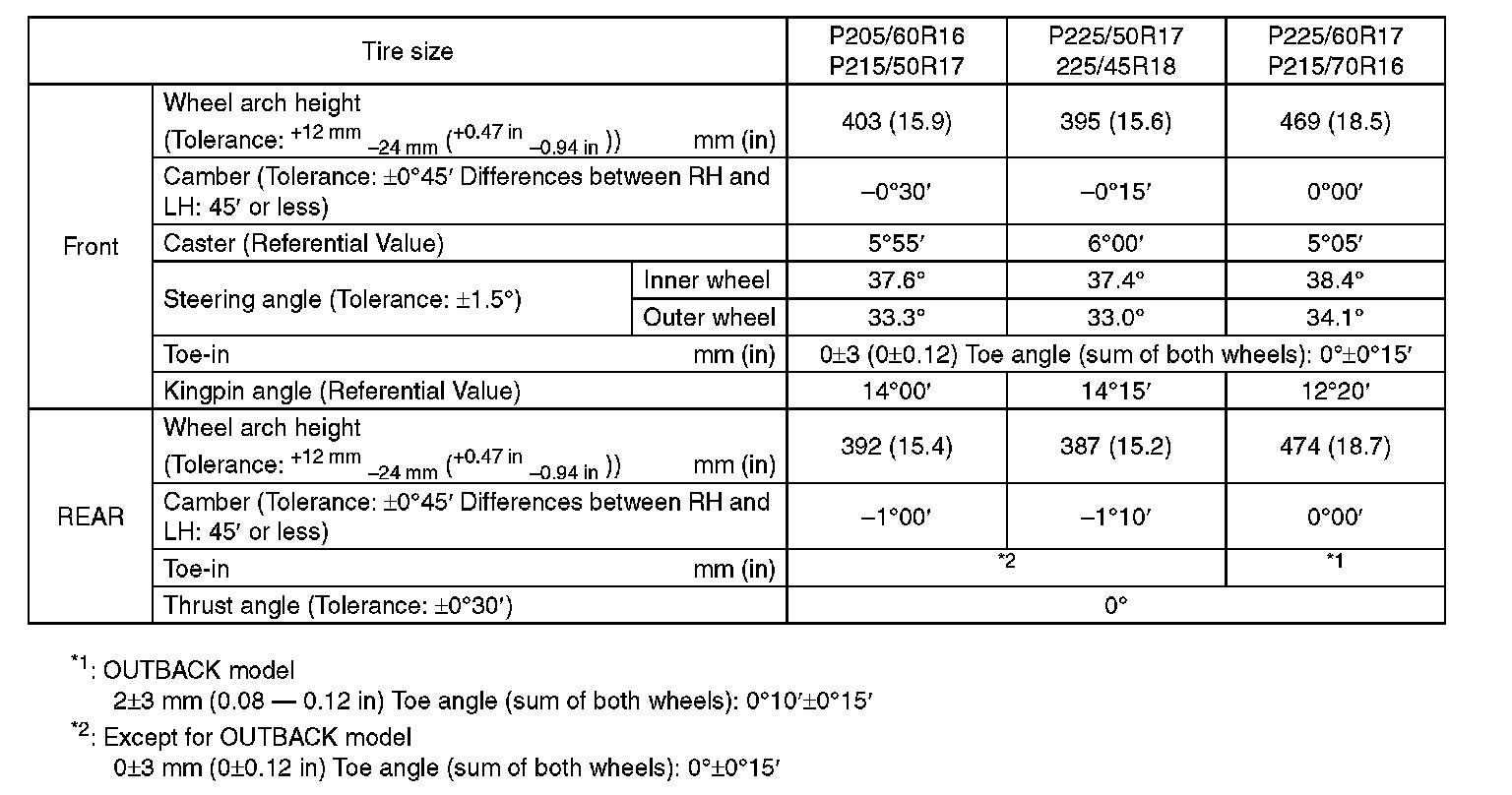

Wheel Alignment Specifications:

NOTE:

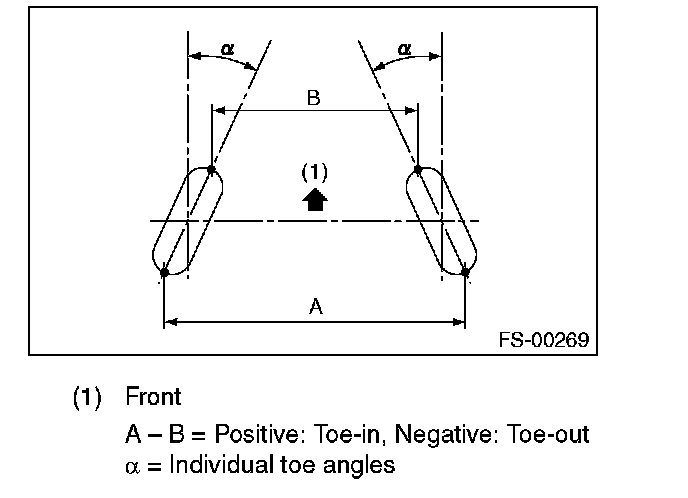

^ Front and rear toe-in and front camber can be adjusted. Adjust if the toe-in or camber tolerance exceeds specifications.
^ For other items indicated in the specifications table, there is no adjustment mechanism. If other items exceed specifications, check the suspension parts and connections for deformation, and replace the parts if defective.

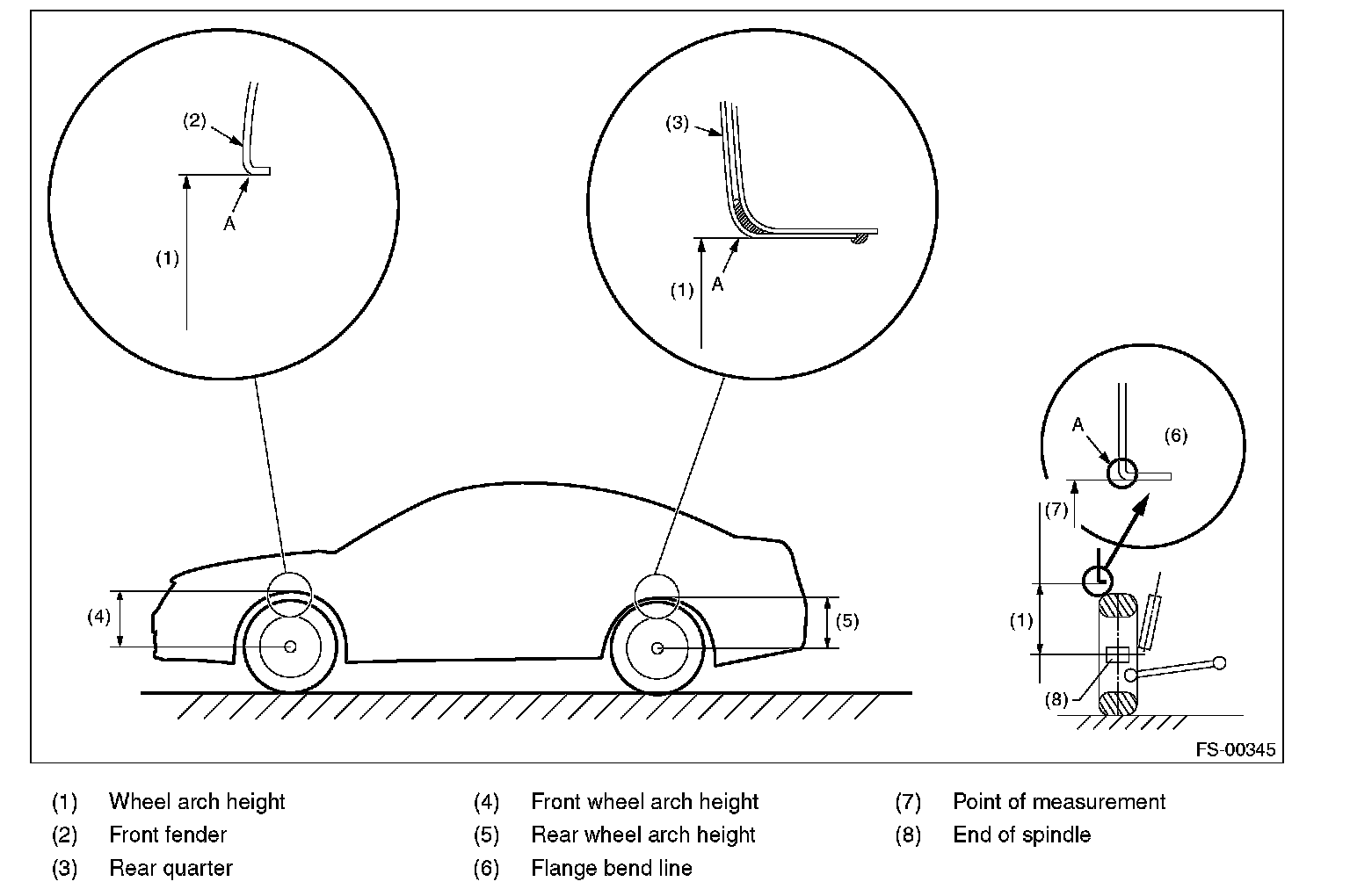

Wheel Arch Height Inspection:

Wheel Arch Height Specifications:
