Engine

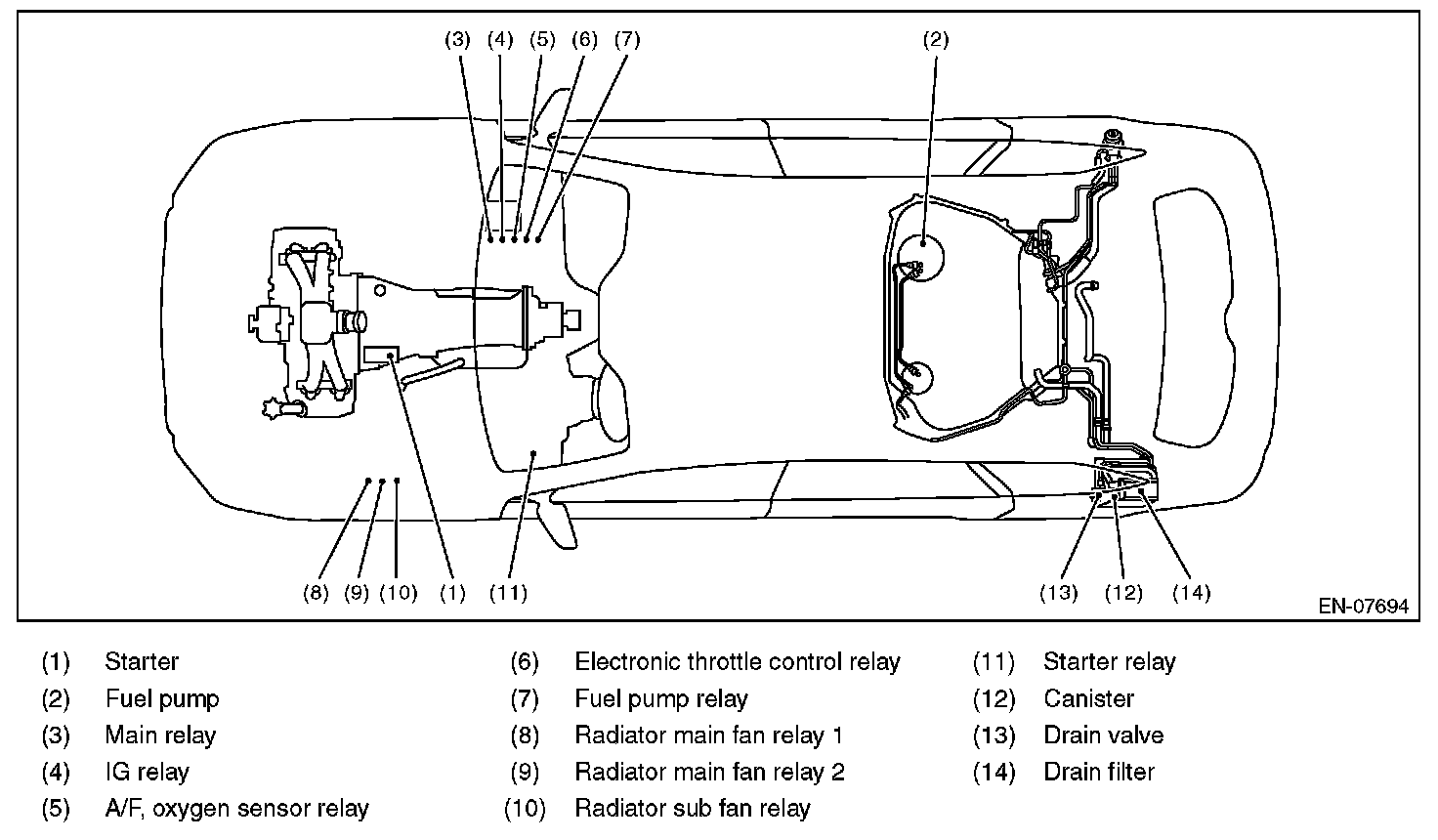

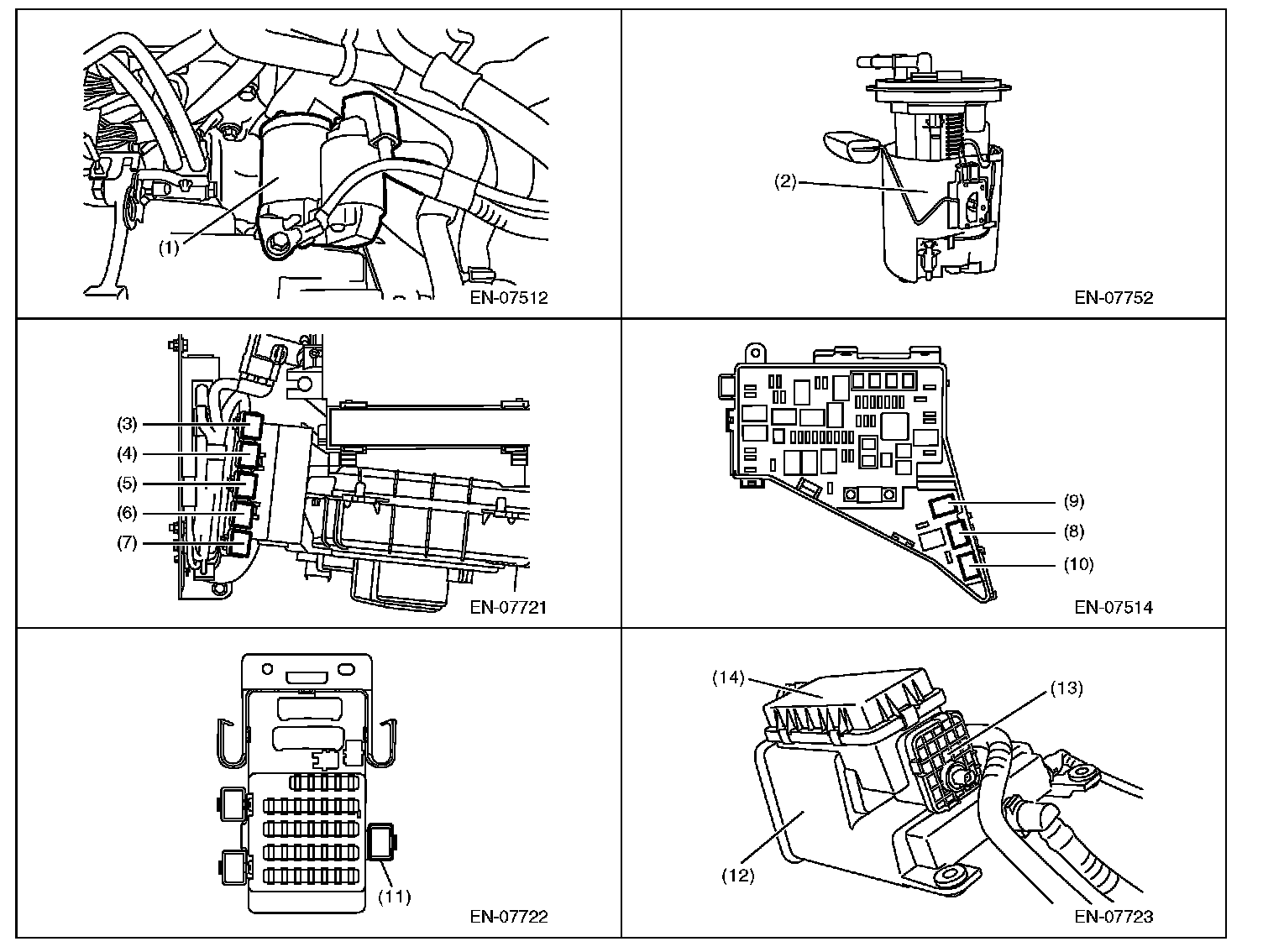

Electrical Component Location

CONTROL MODULE

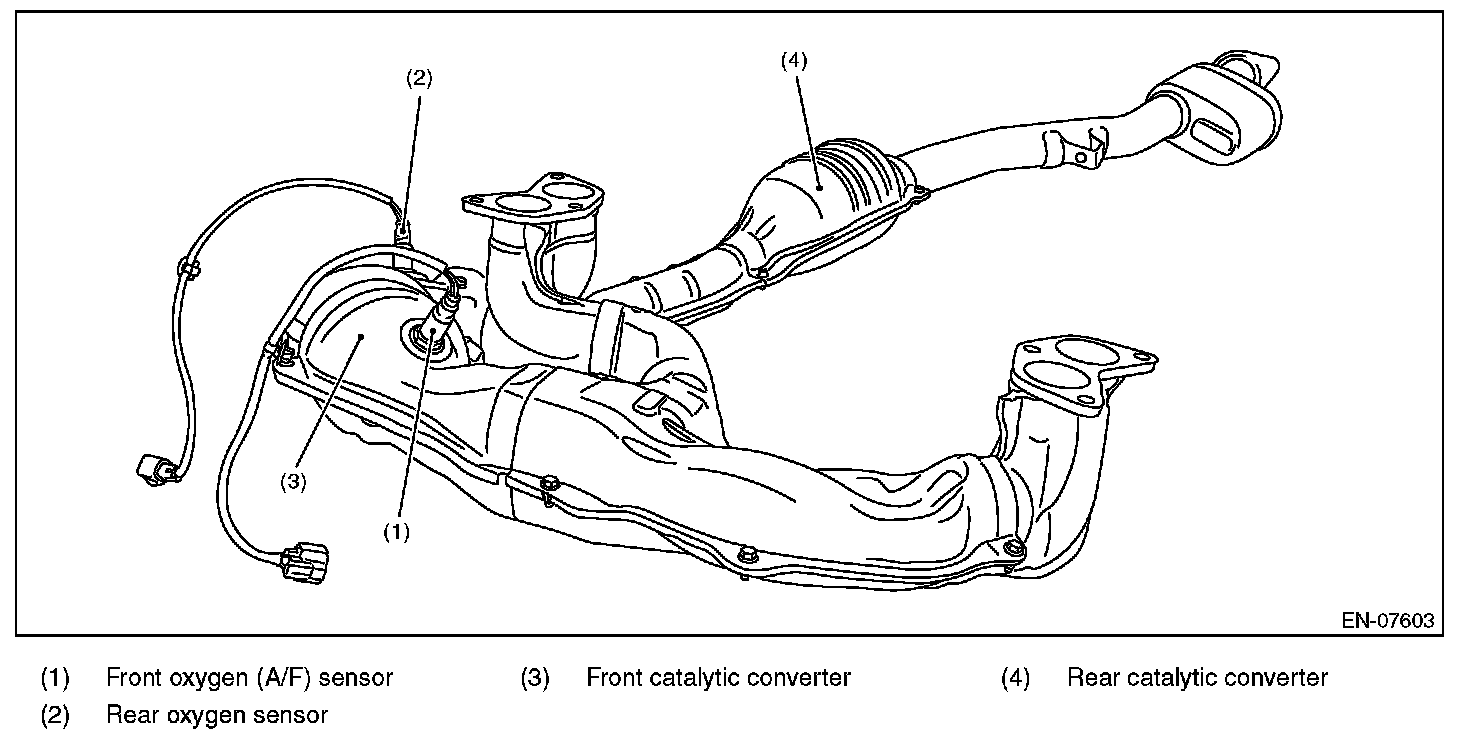

SENSOR

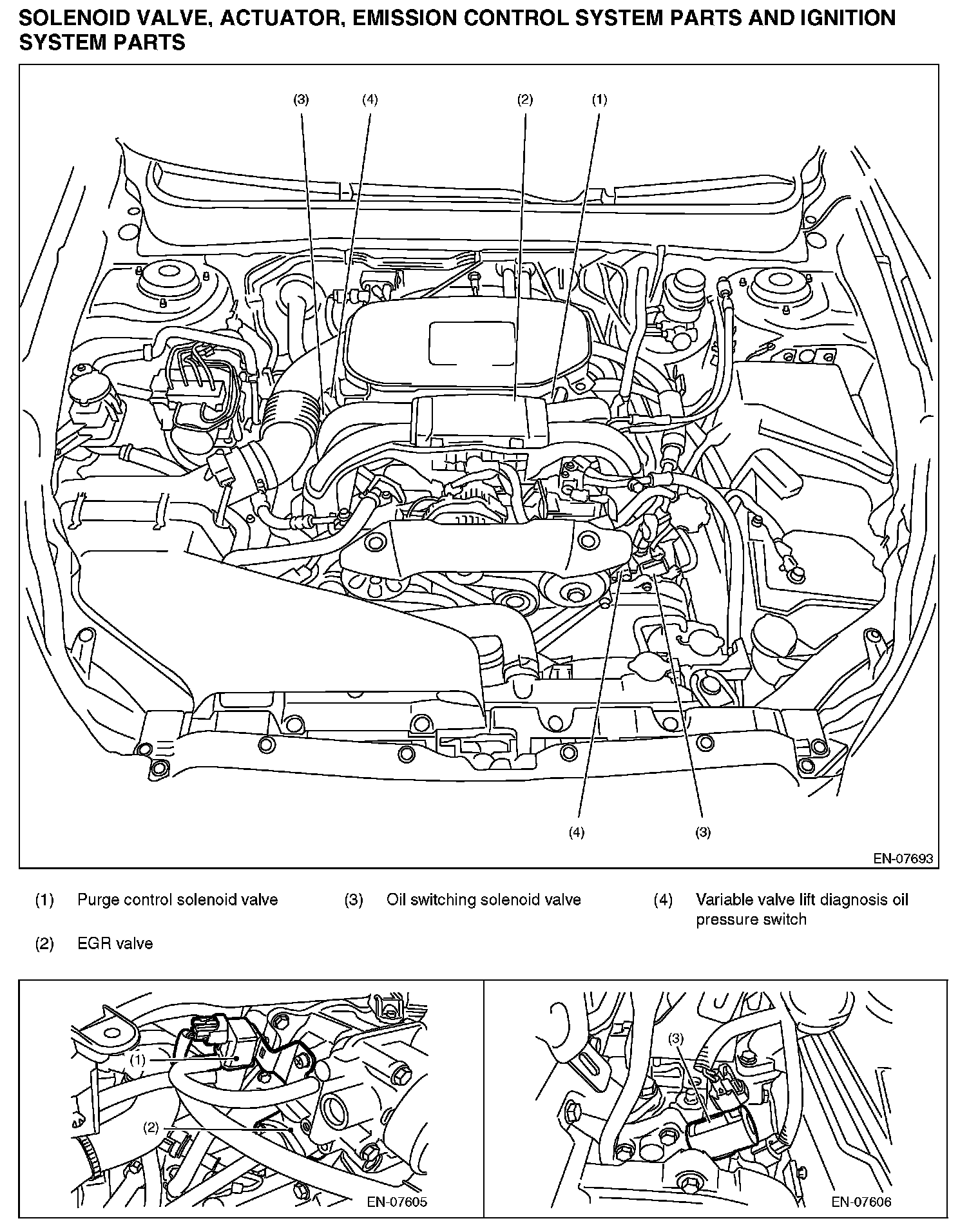

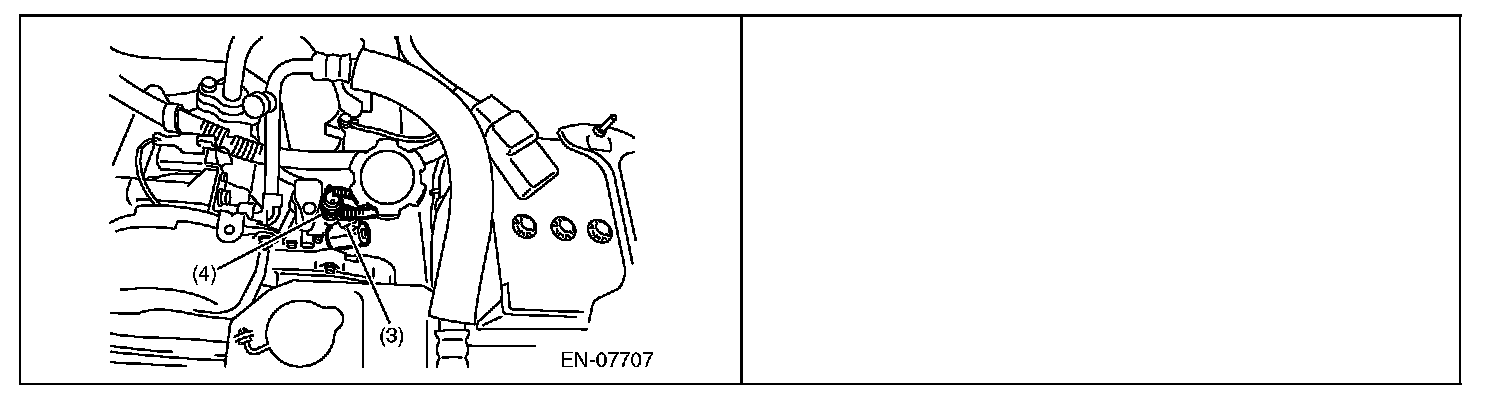

SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS

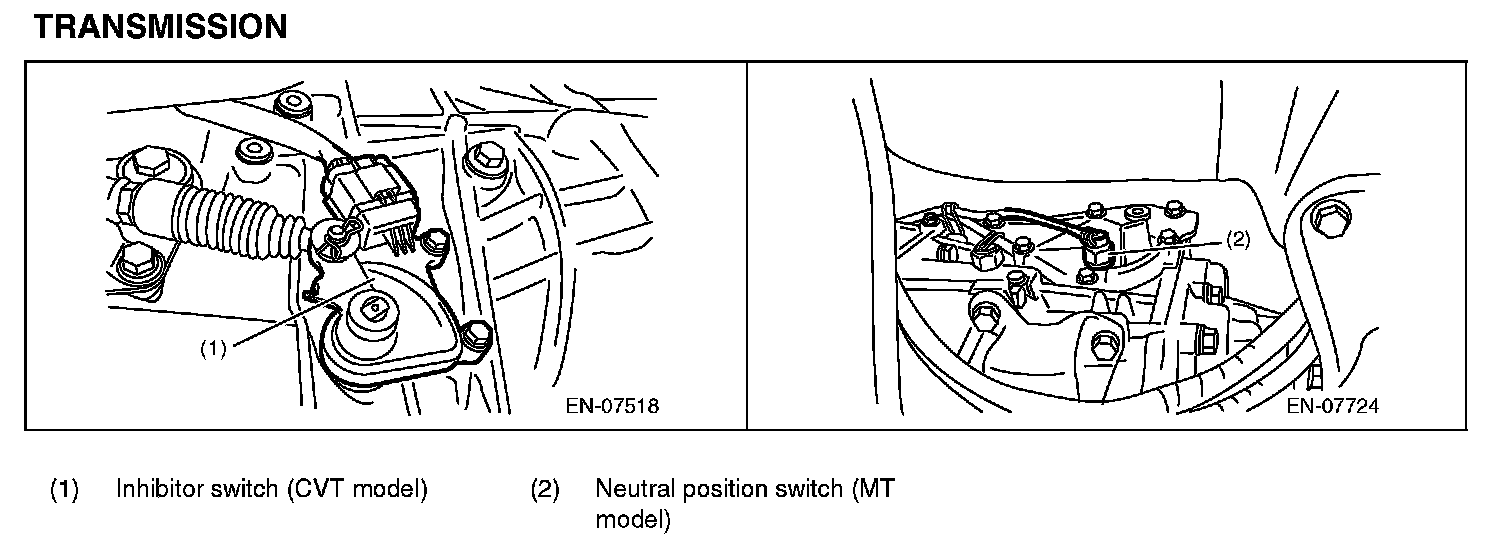

TRANSMISSION
