Body Control Diagnostic Module: Locations

Electrical Component Location

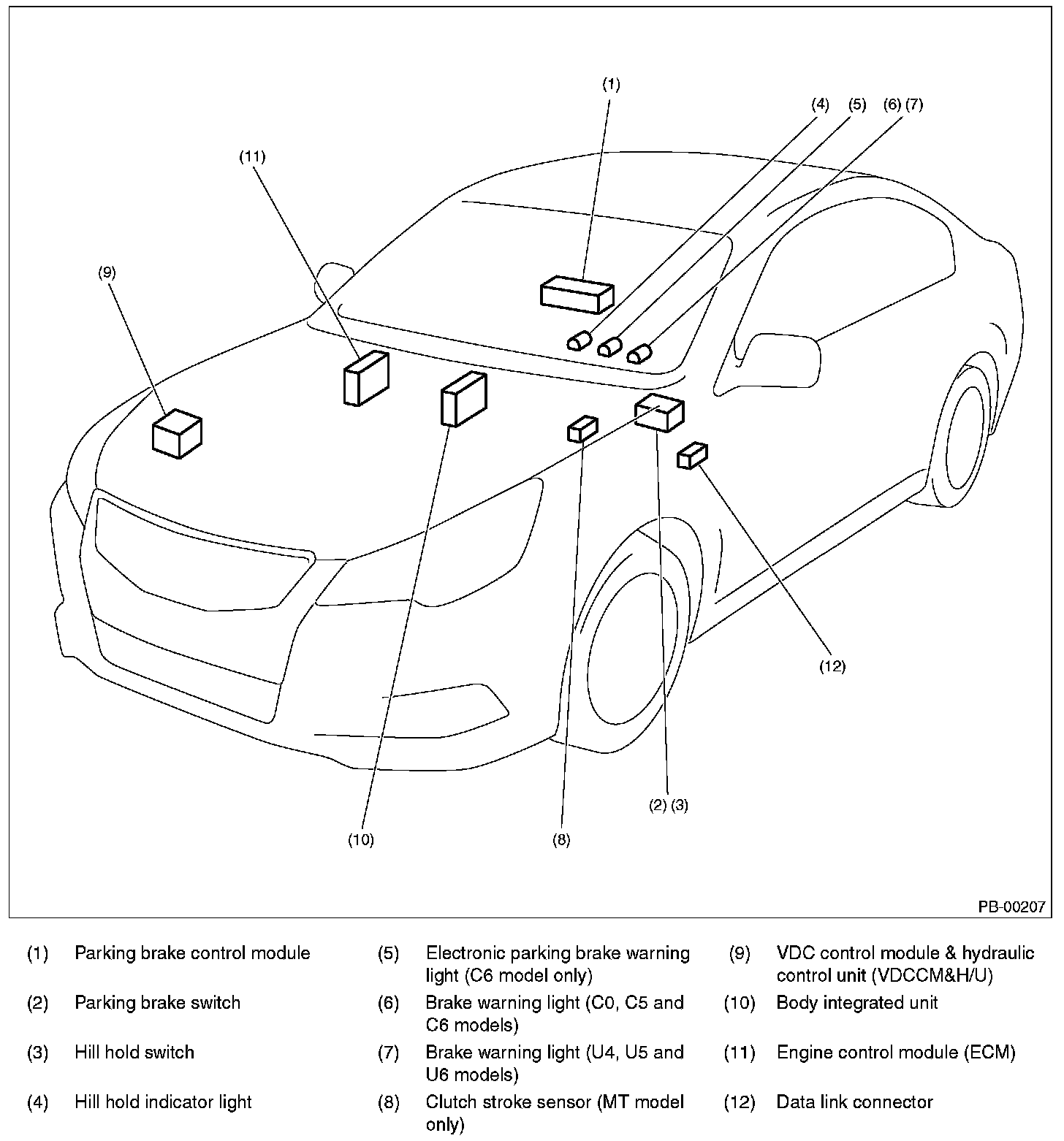

Electrical Component Location (Part 1):

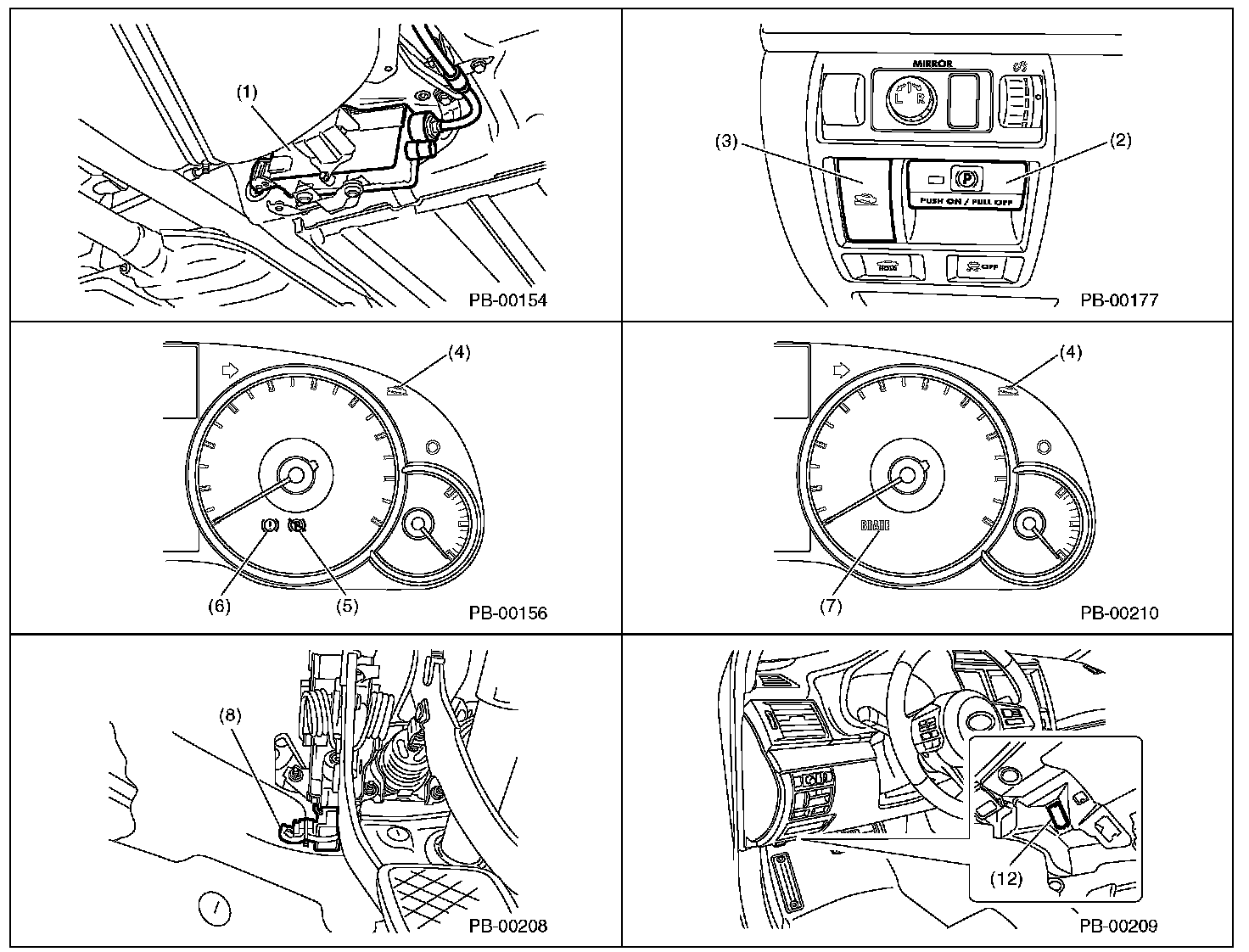

Electrical Component Location (Part 2):
