Engine Harness

ENGINE HARNESS

Engine harness assembly diagram 1

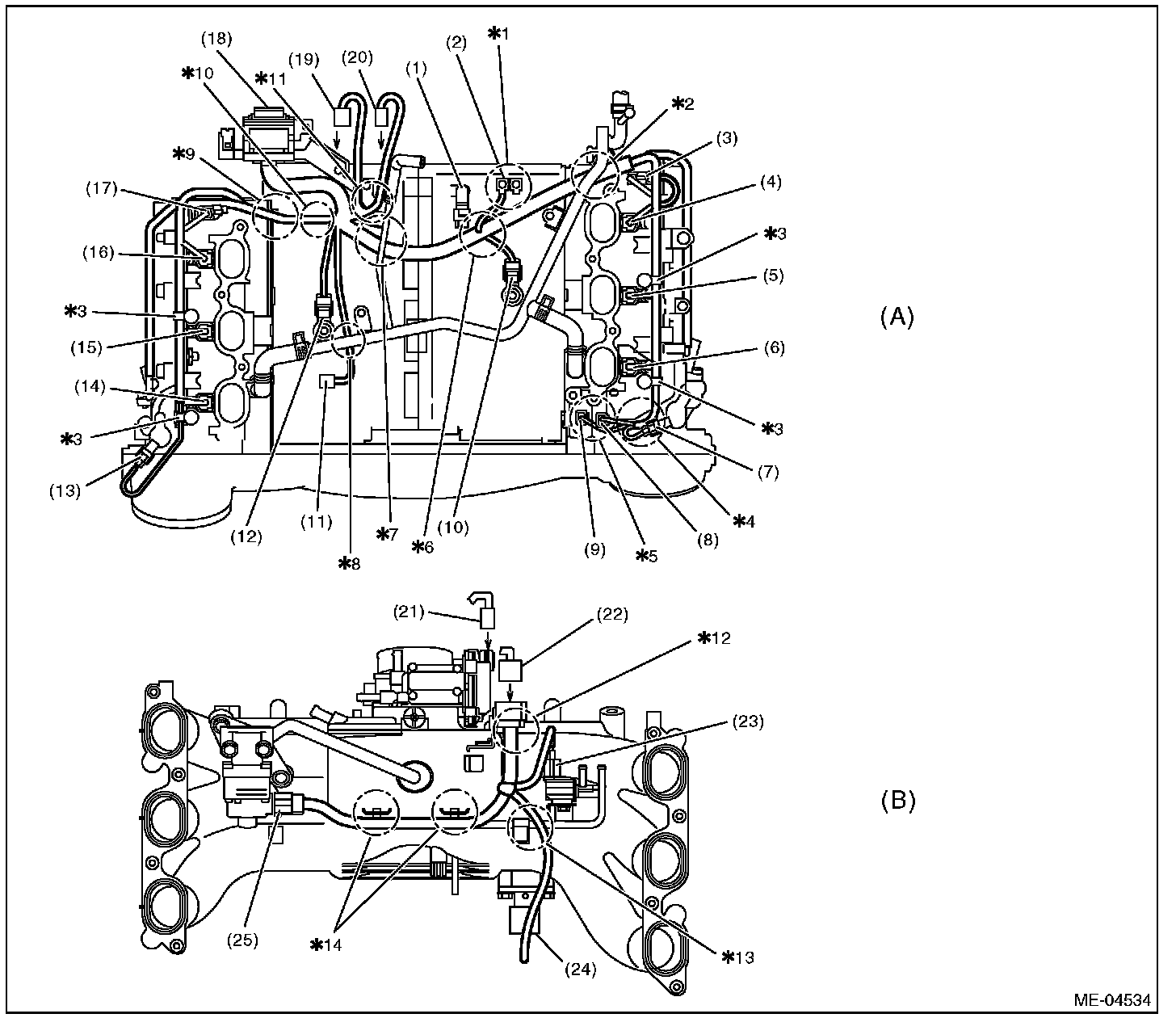

Engine harness assembly diagram 1 (Part 1):

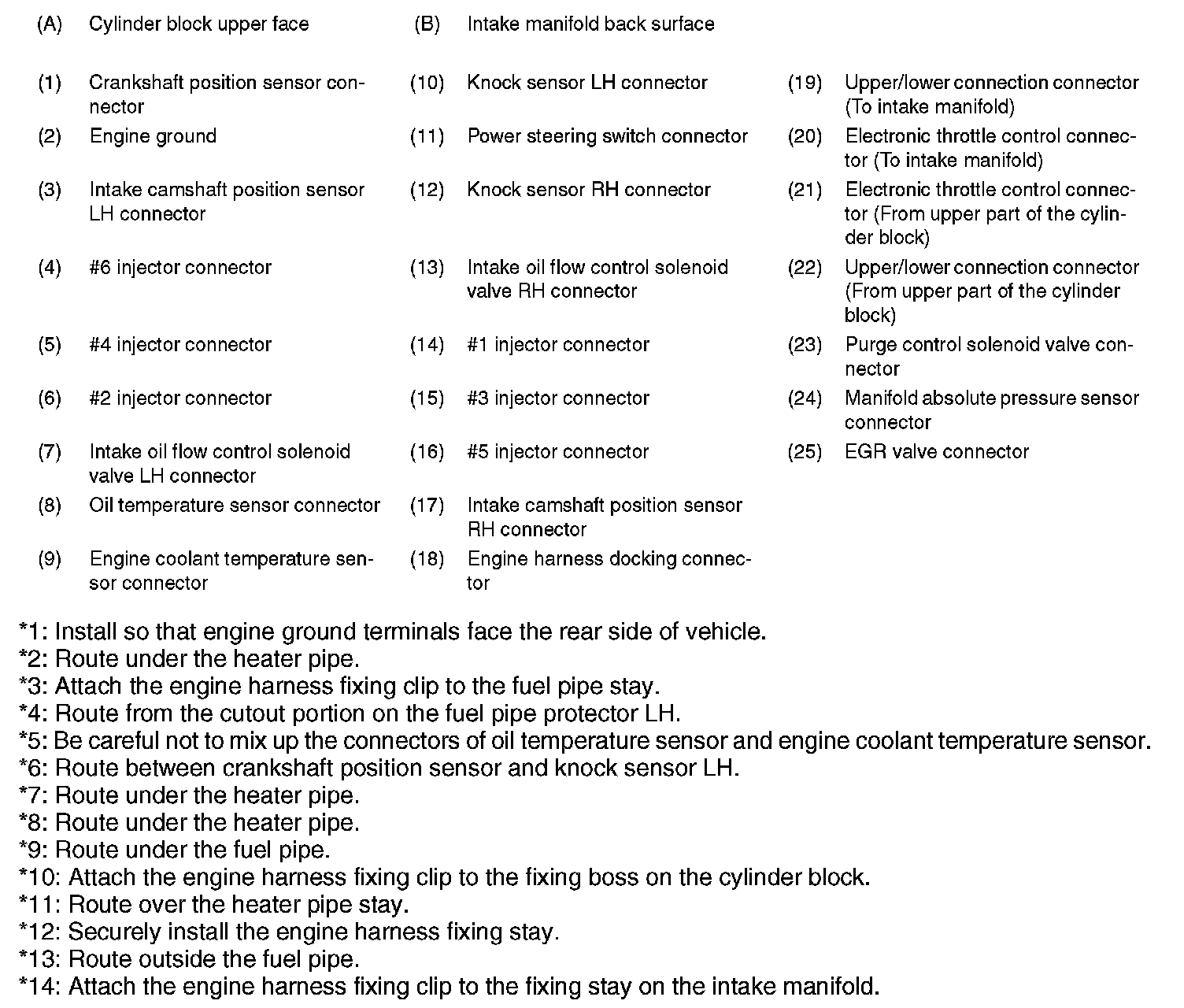

Engine harness assembly diagram 1 (Part 2):





Engine harness assembly diagram 2

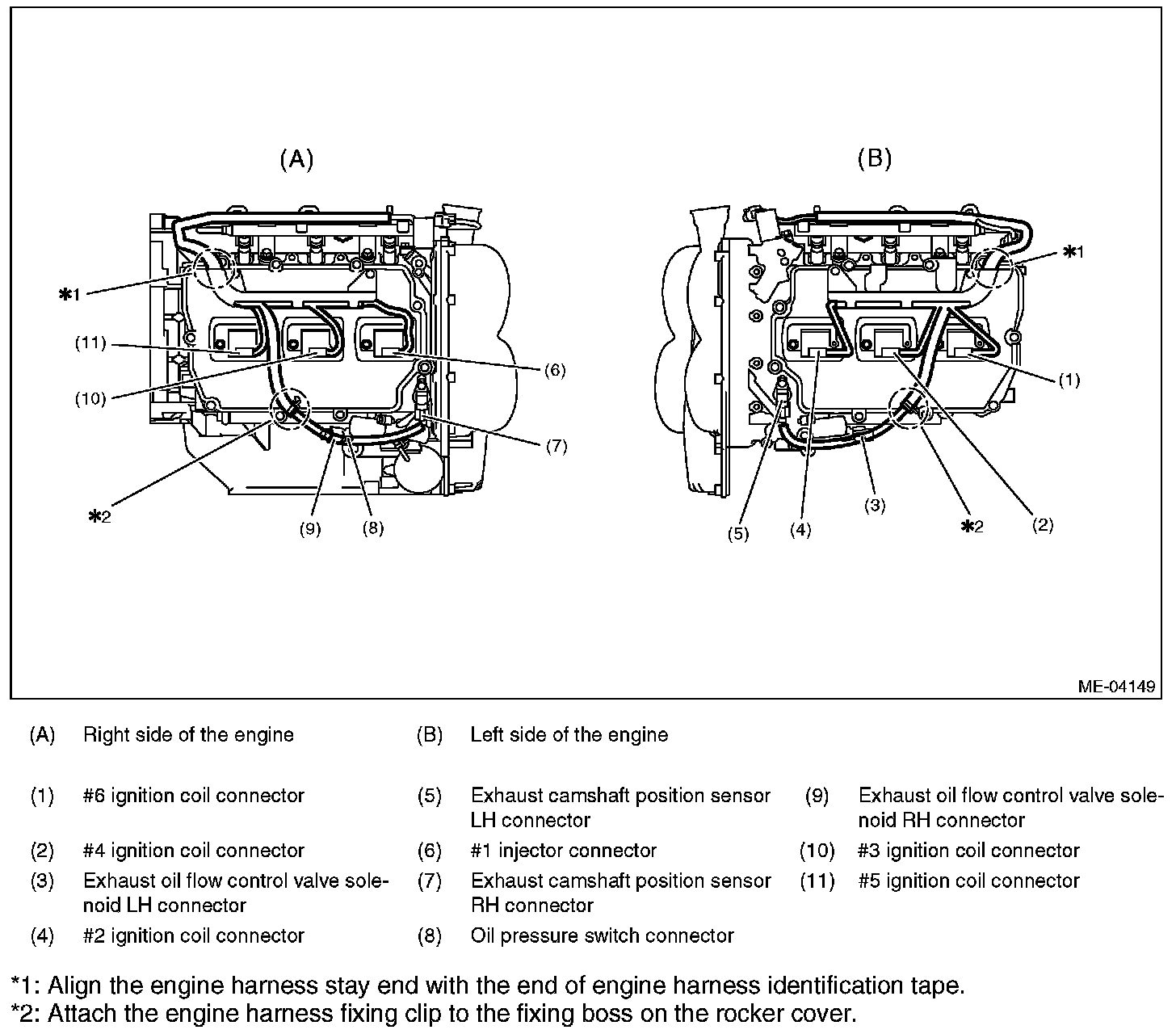

Engine harness assembly diagram 2:
