Exhaust System

COMPONENT

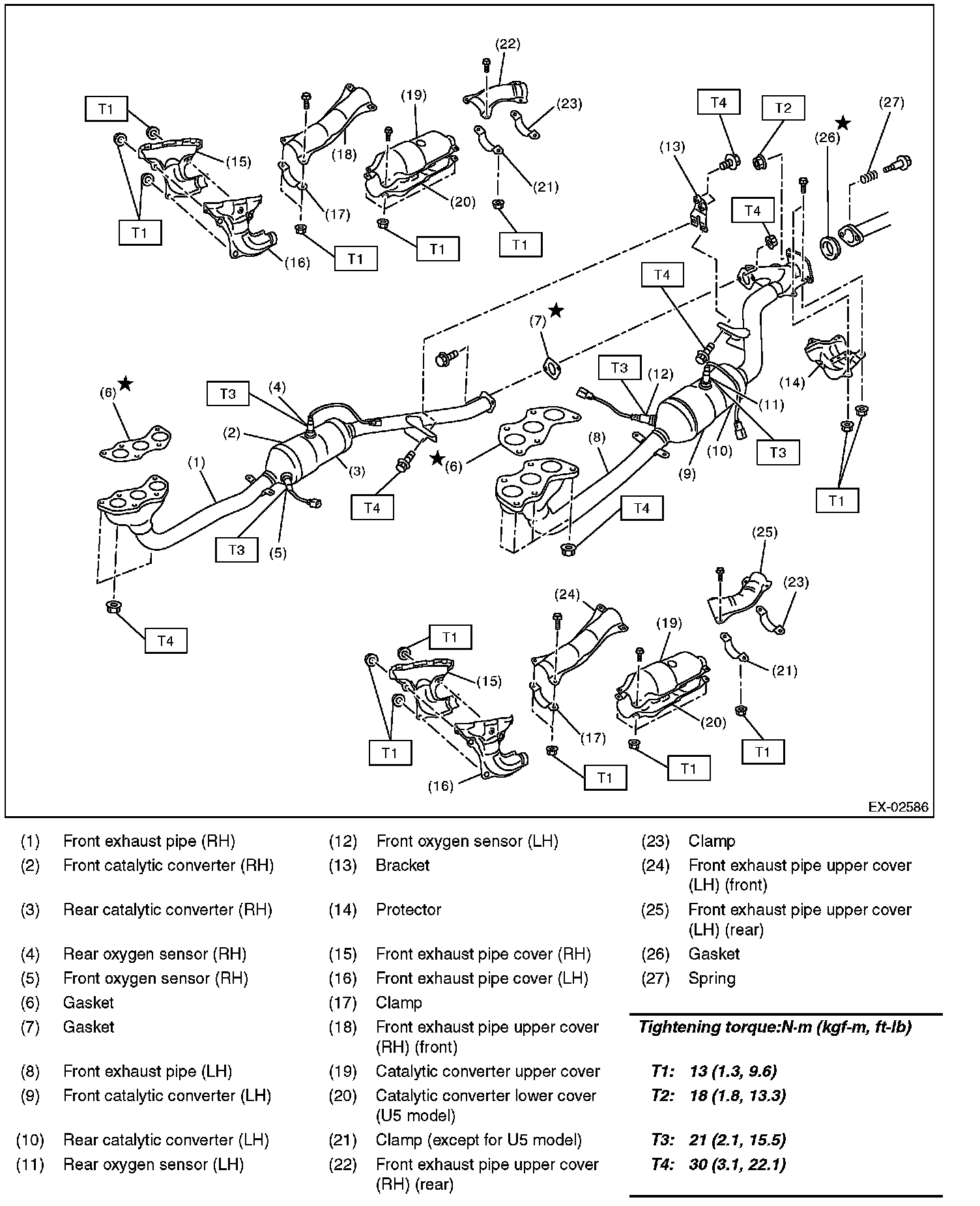

FRONT EXHAUST PIPE

Front Exhaust Pipe:

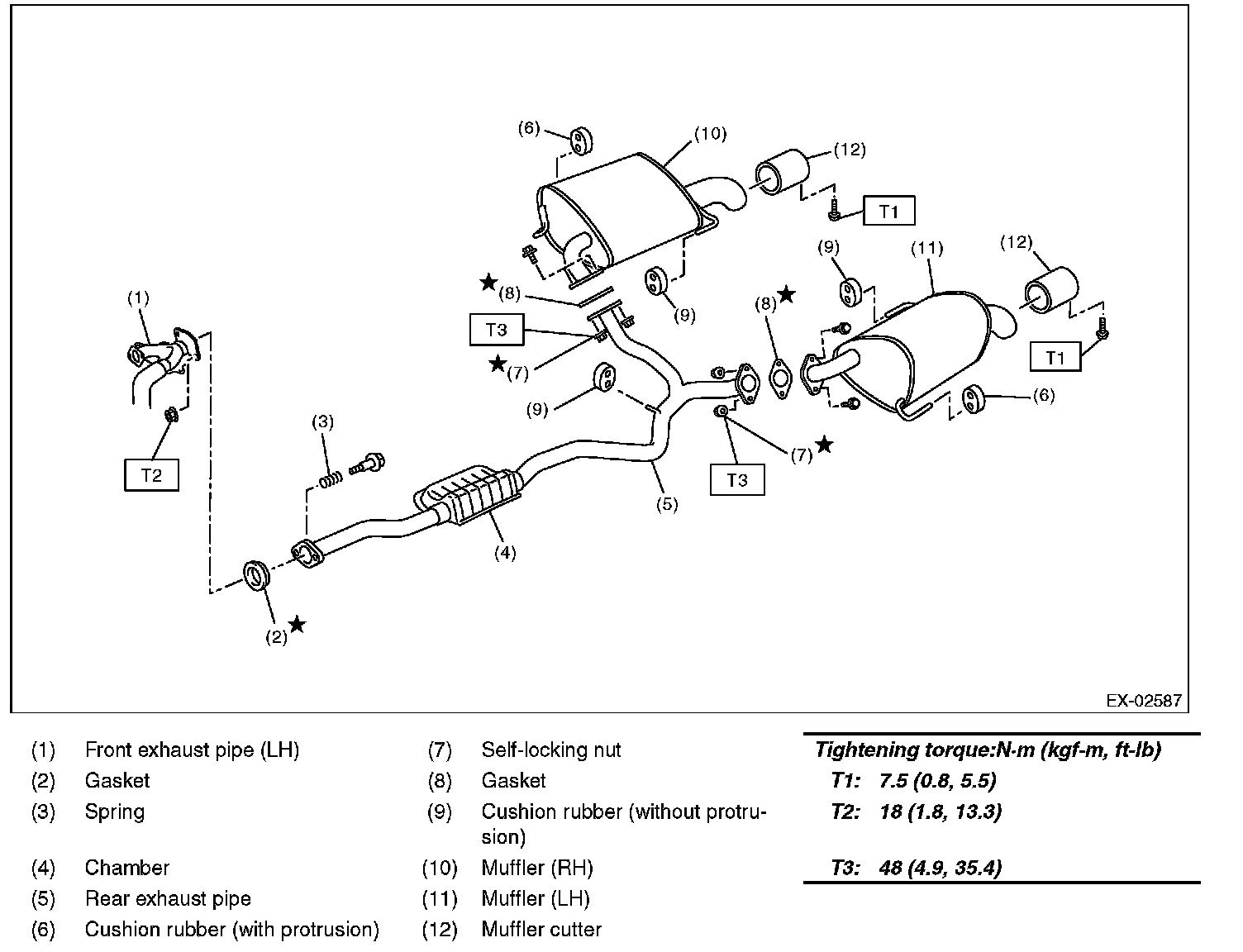

REAR EXHAUST PIPE AND MUFFLER

Rear Exhaust Pipe and Muffler:
