Engine

Electrical Component Location

LOCATION

1. CONTROL MODULE

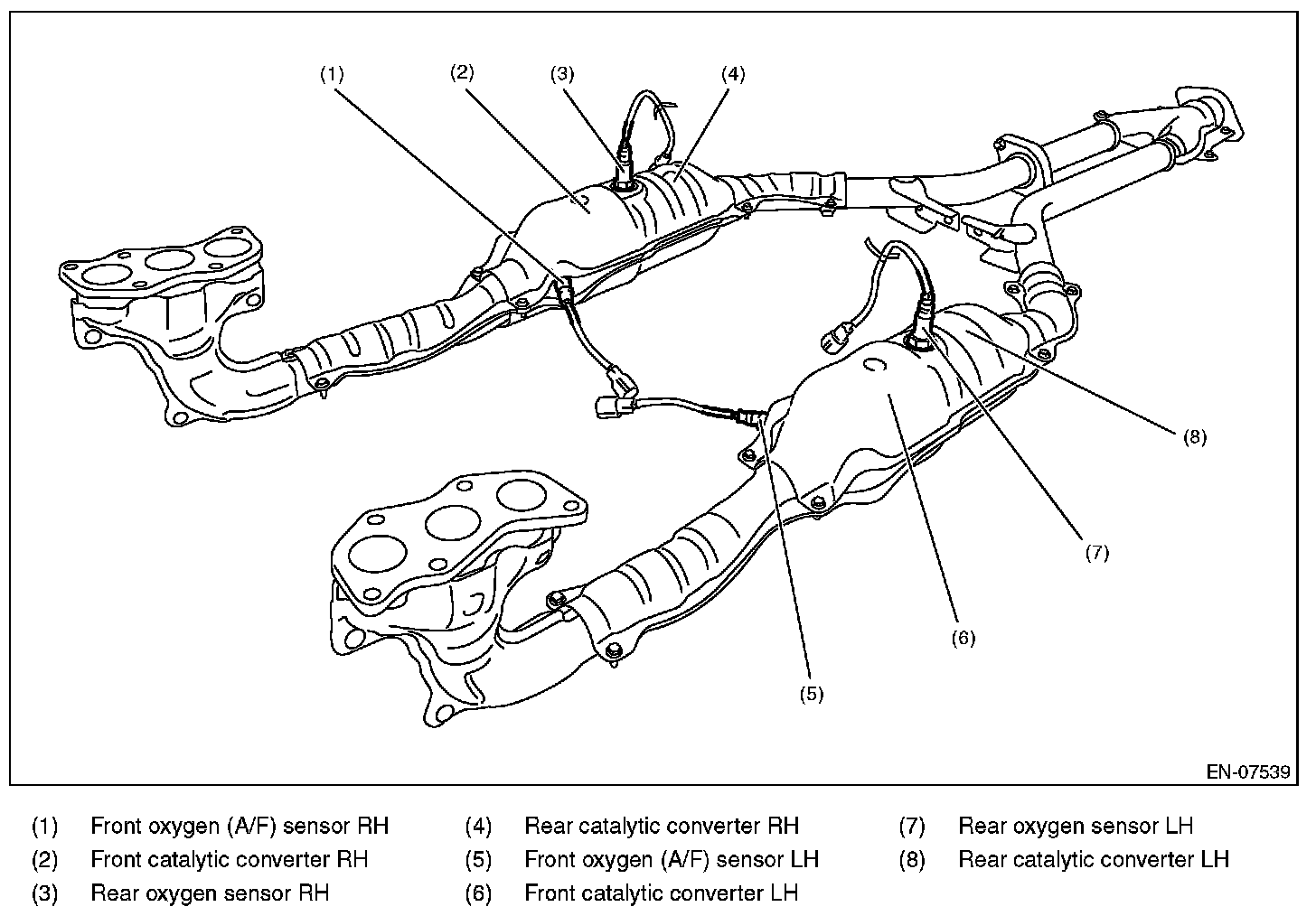

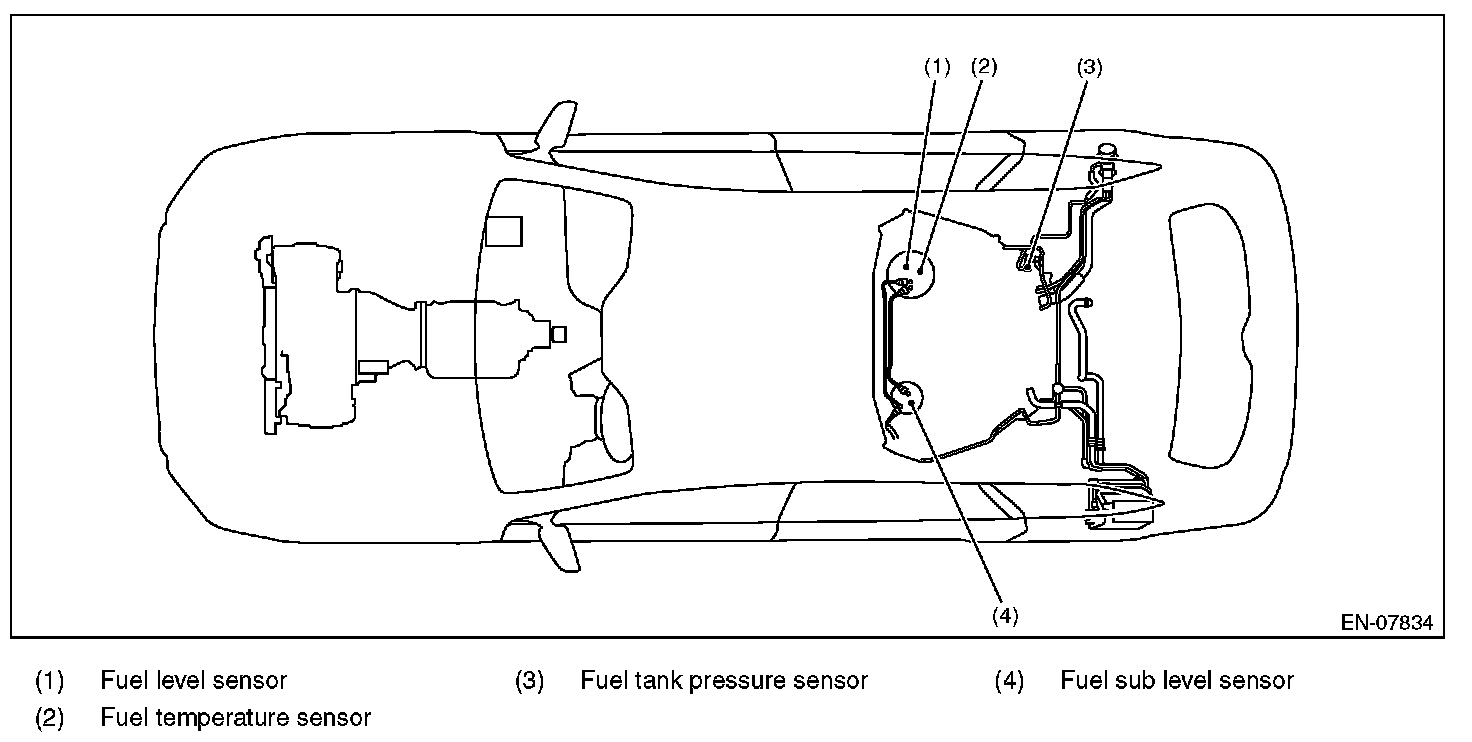

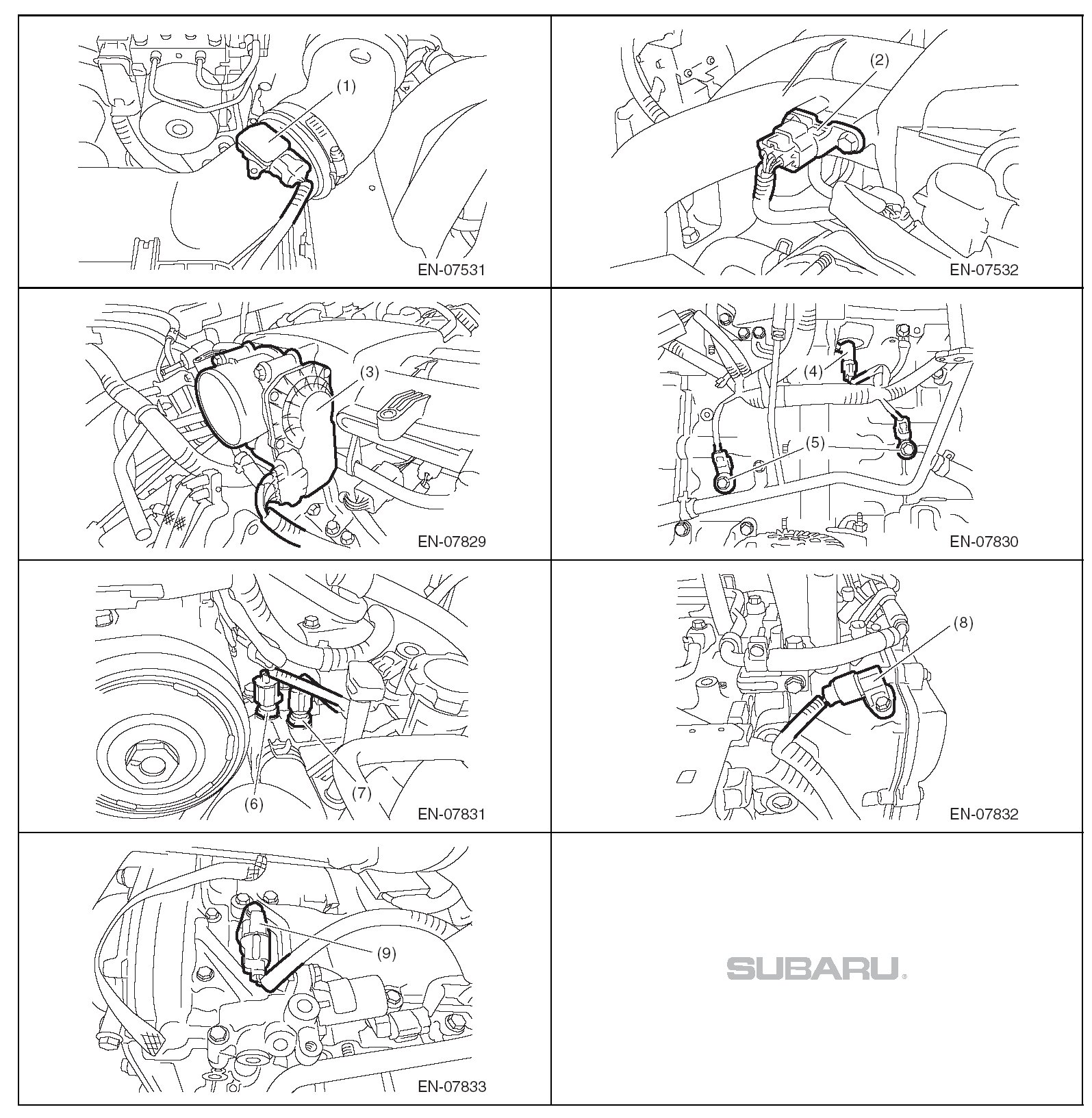

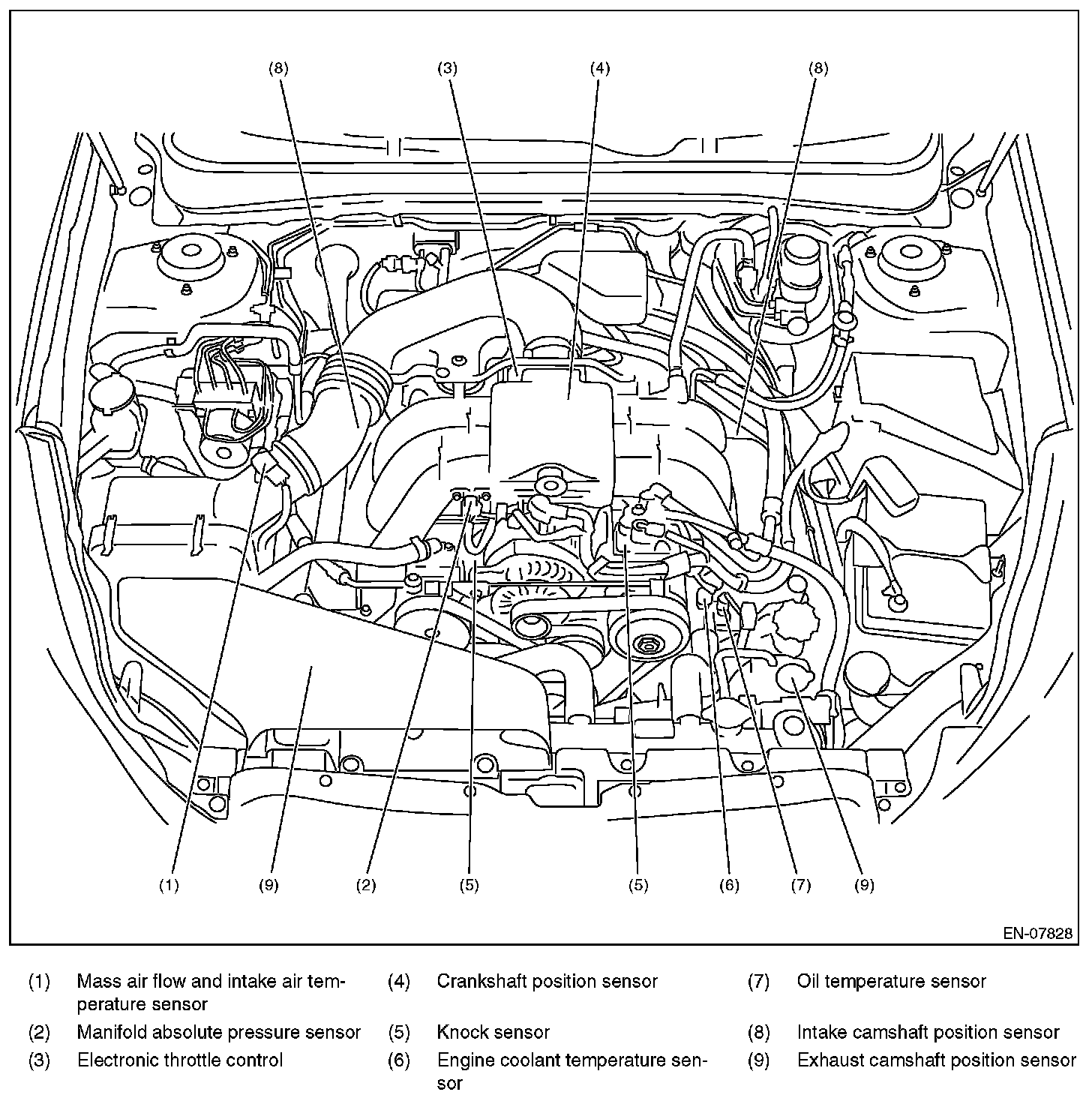

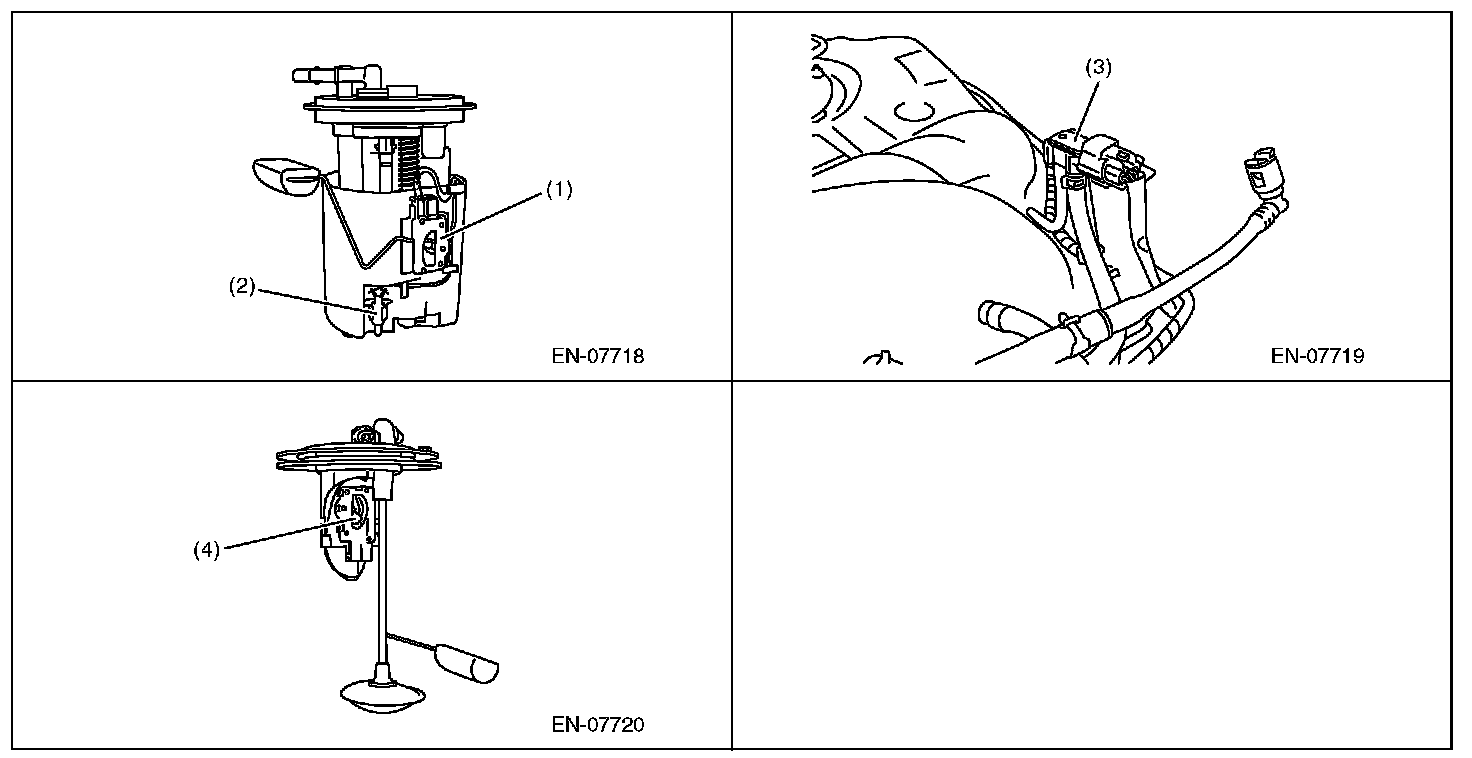

2. SENSOR

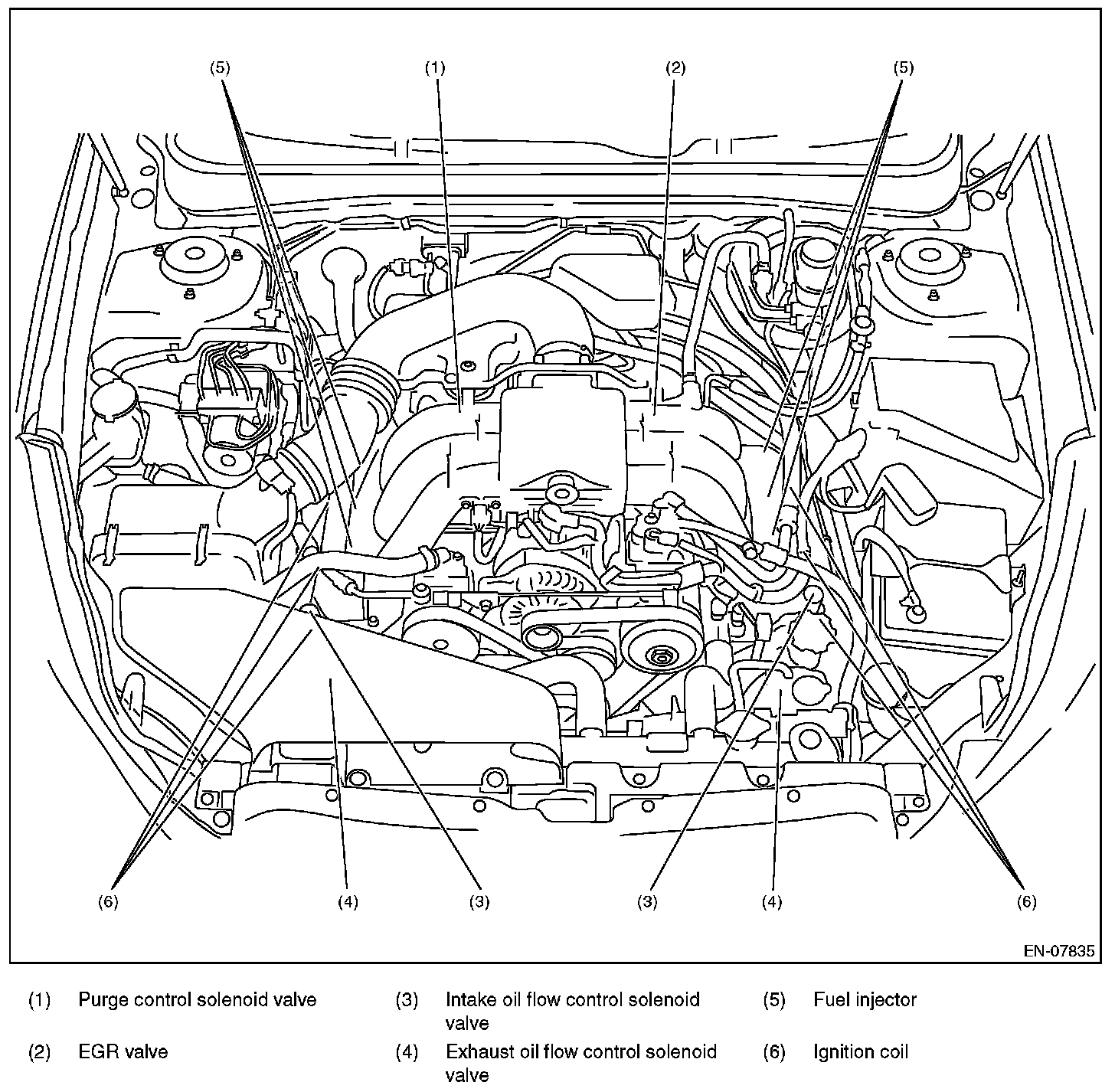

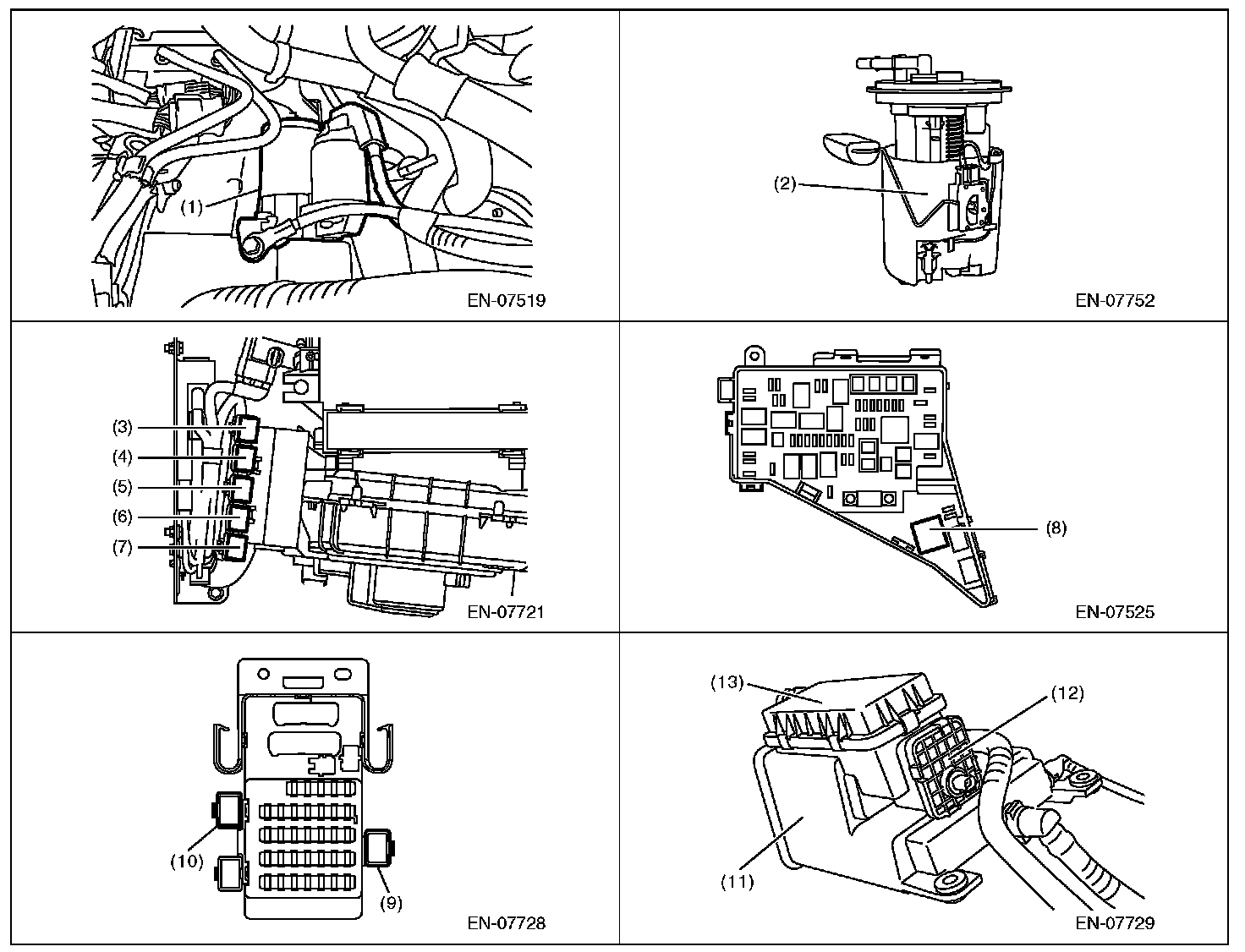

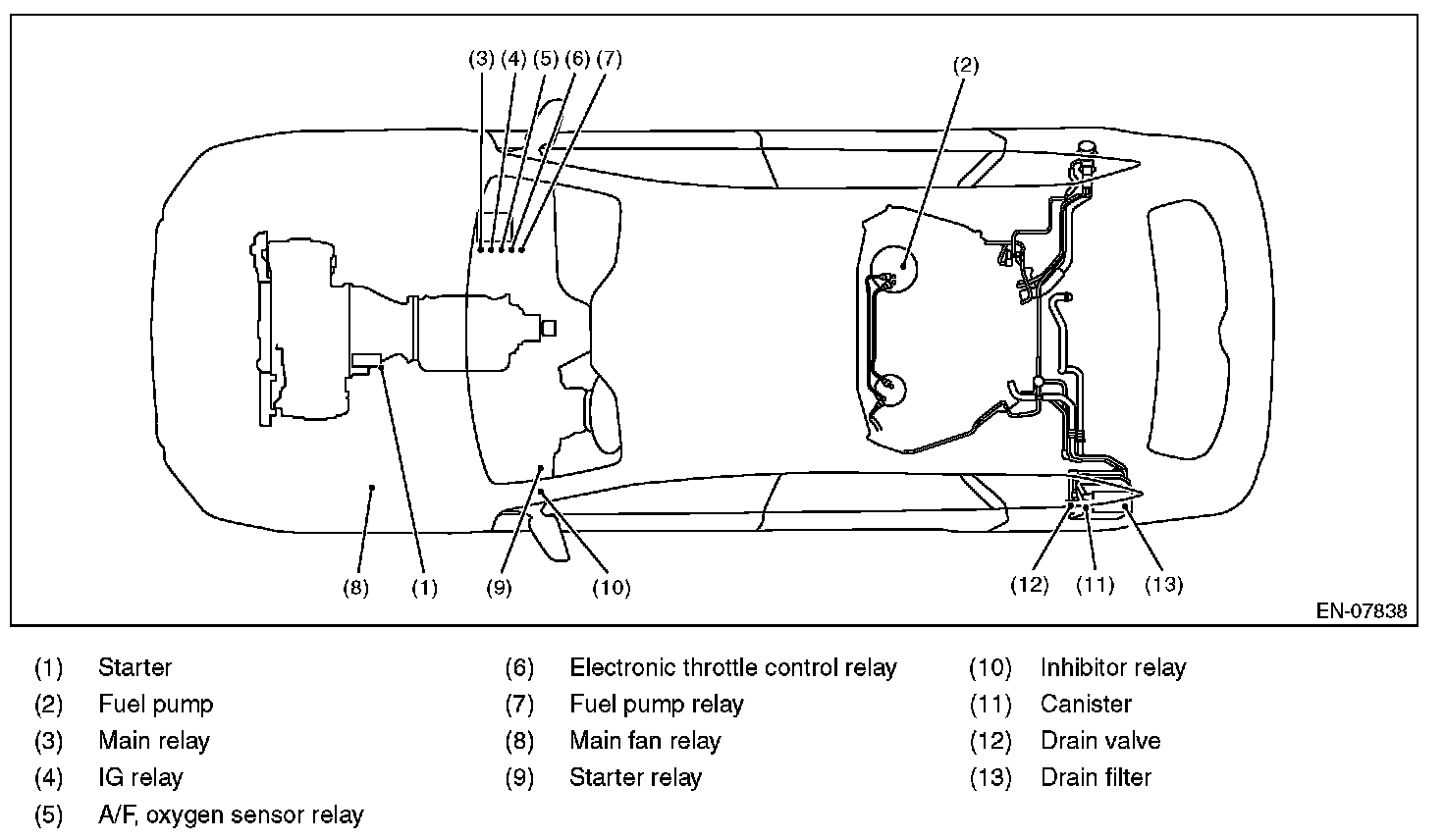

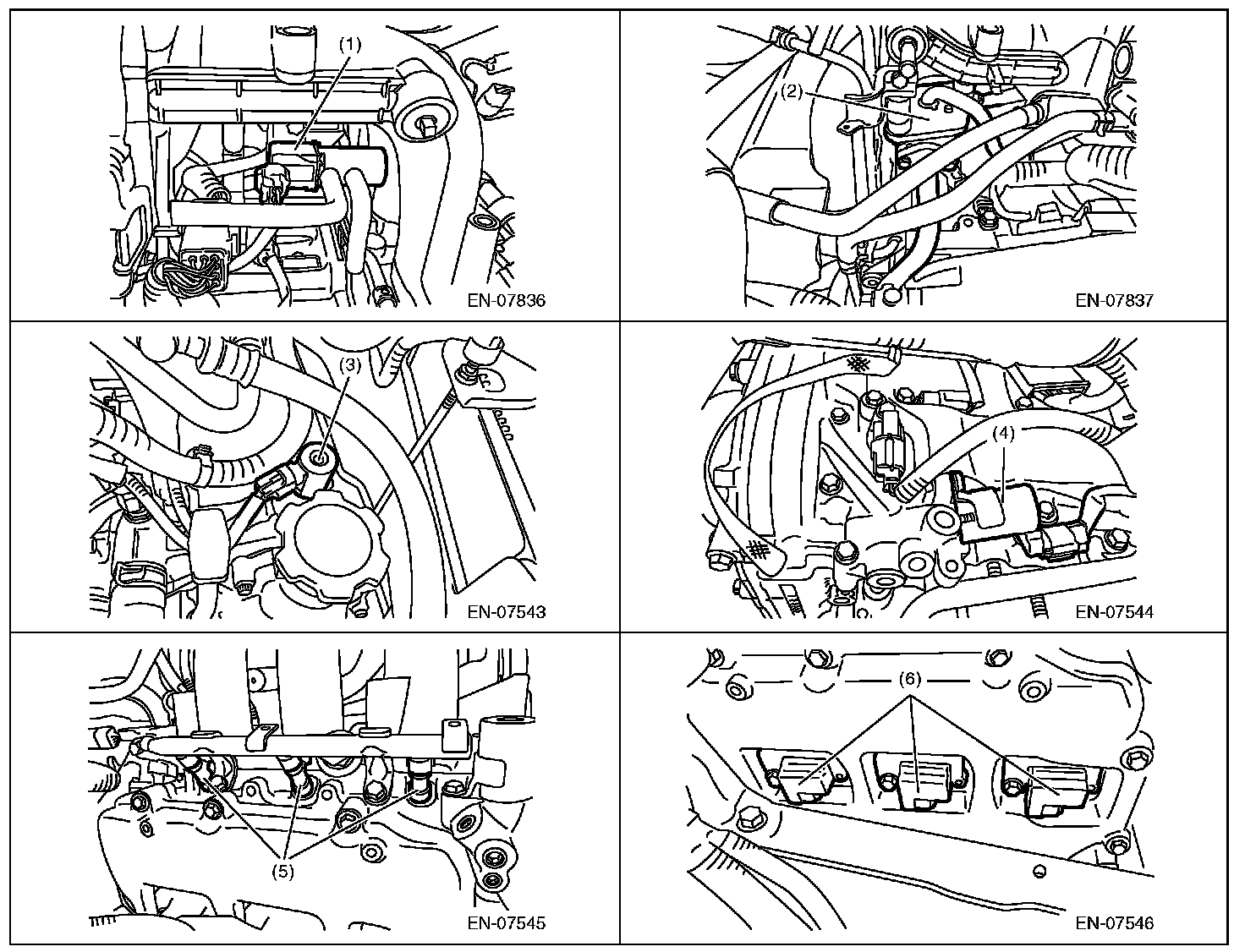

3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
