Transmission Control Module (TCM) I/O Signal

Transmission Control Module (TCM) I/O Signal

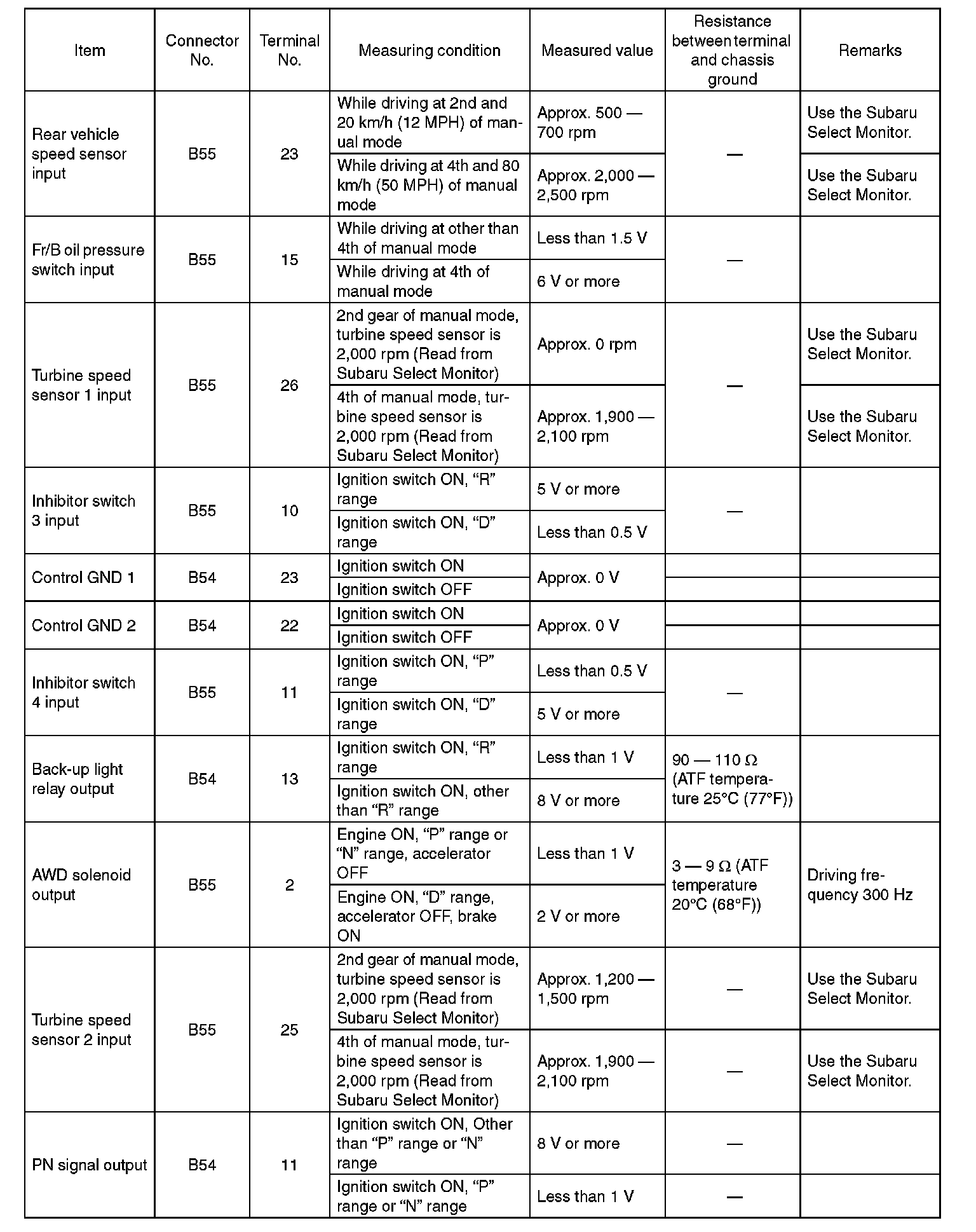

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 1):





NOTE:
Measure after warming up.

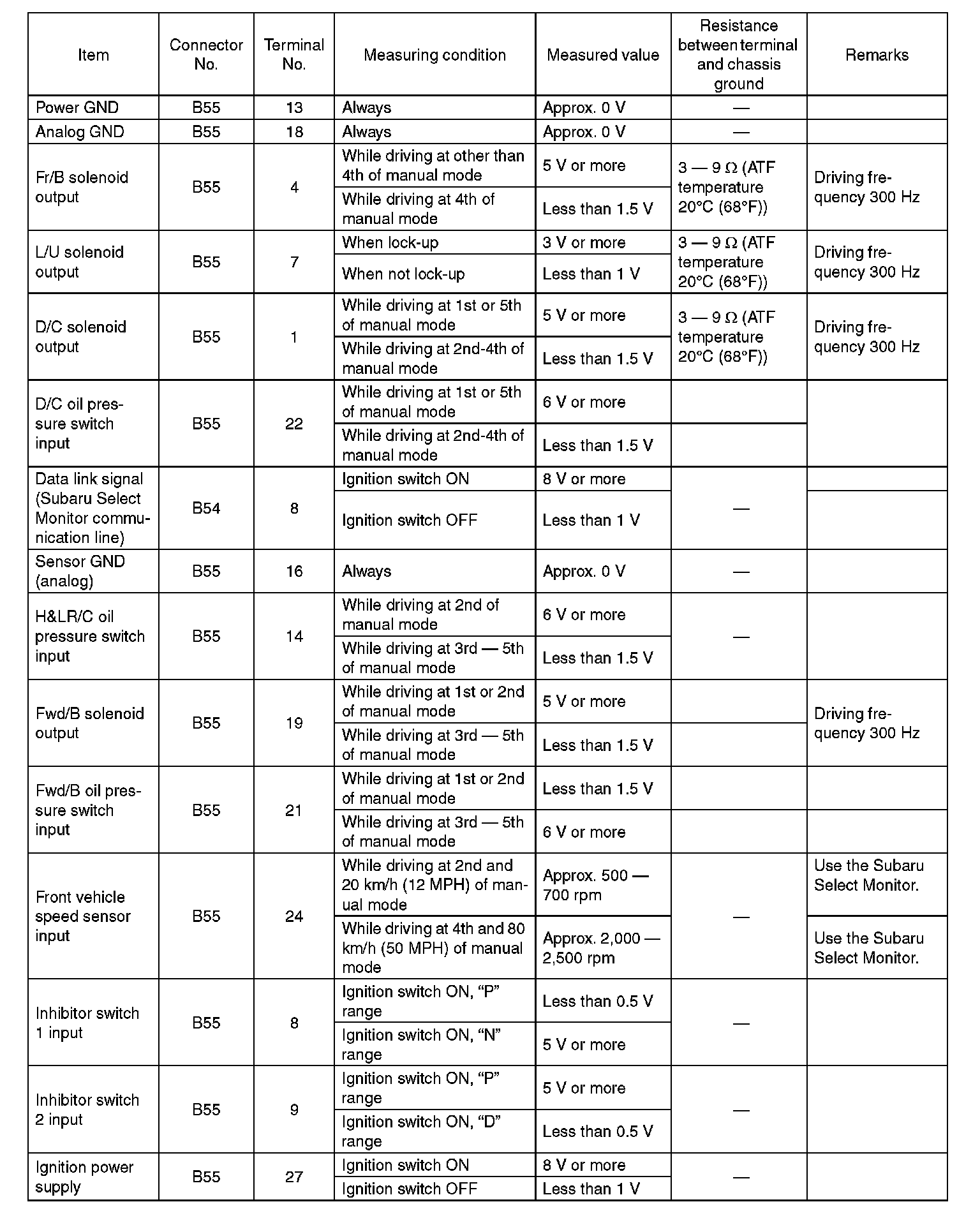

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 2):

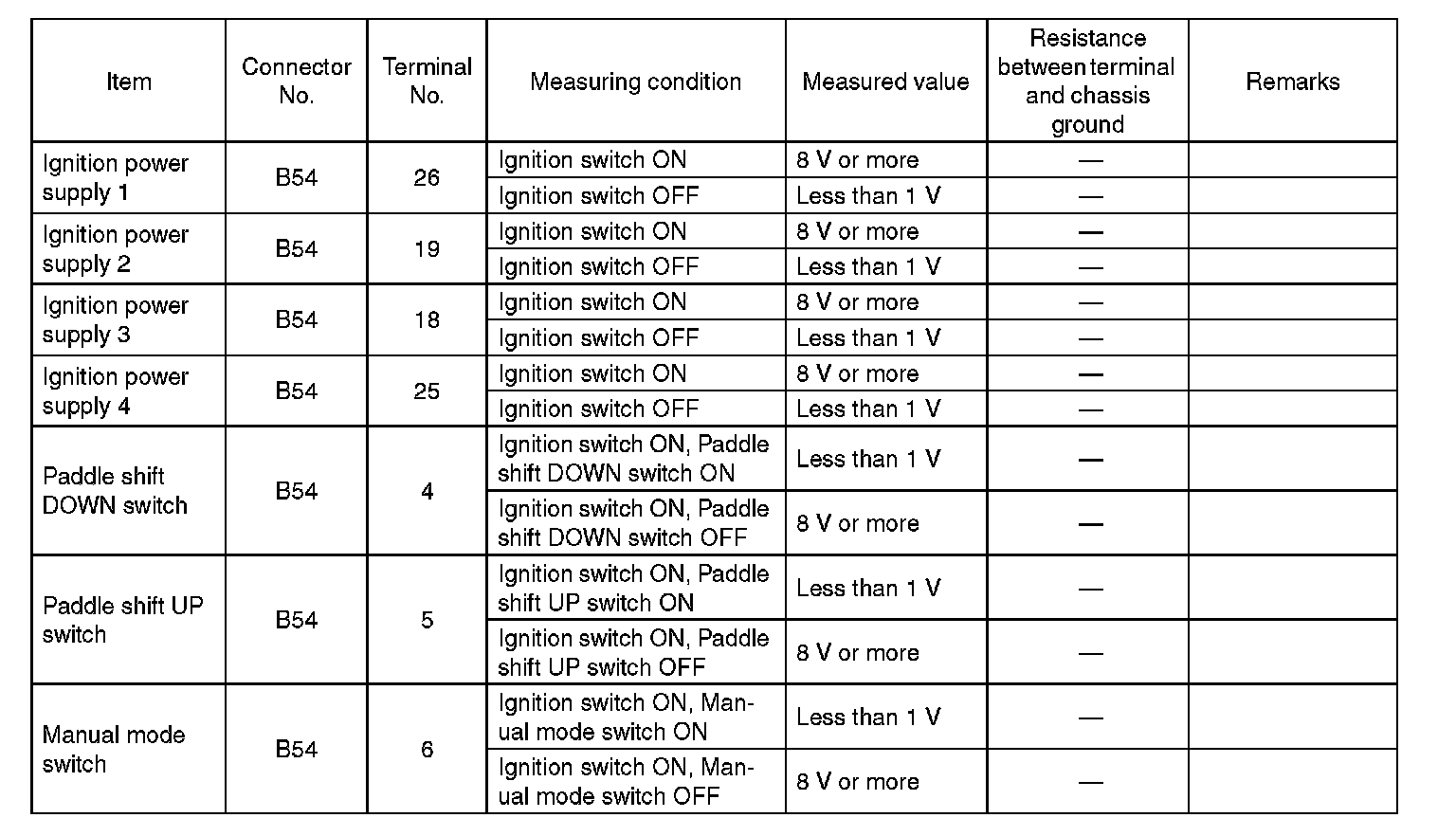

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 3):

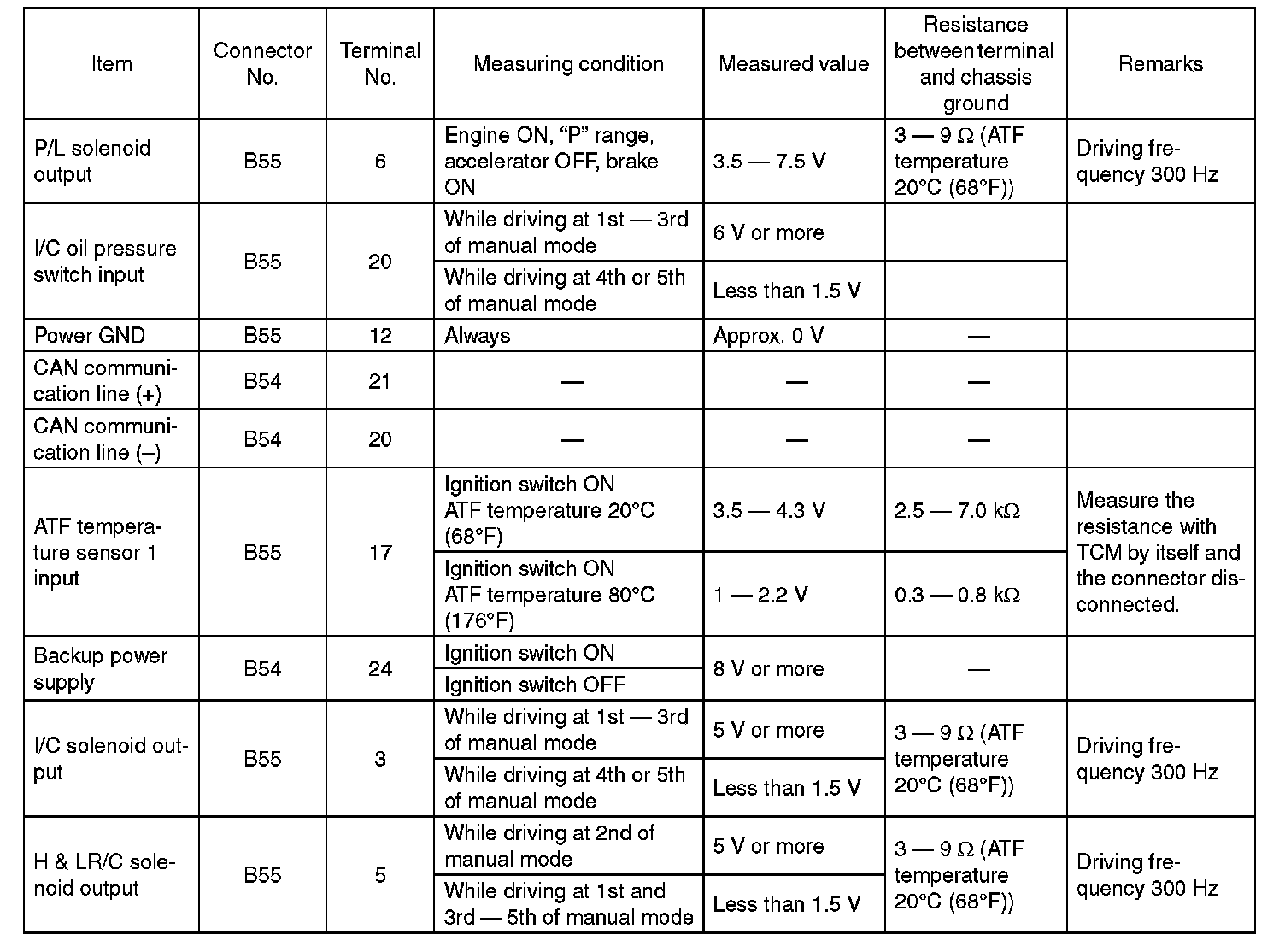

Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 4):




Transmission Control Module (TCM) I/O Signal Electrical Specification (Part 5):
