Fuel Filler Pipe

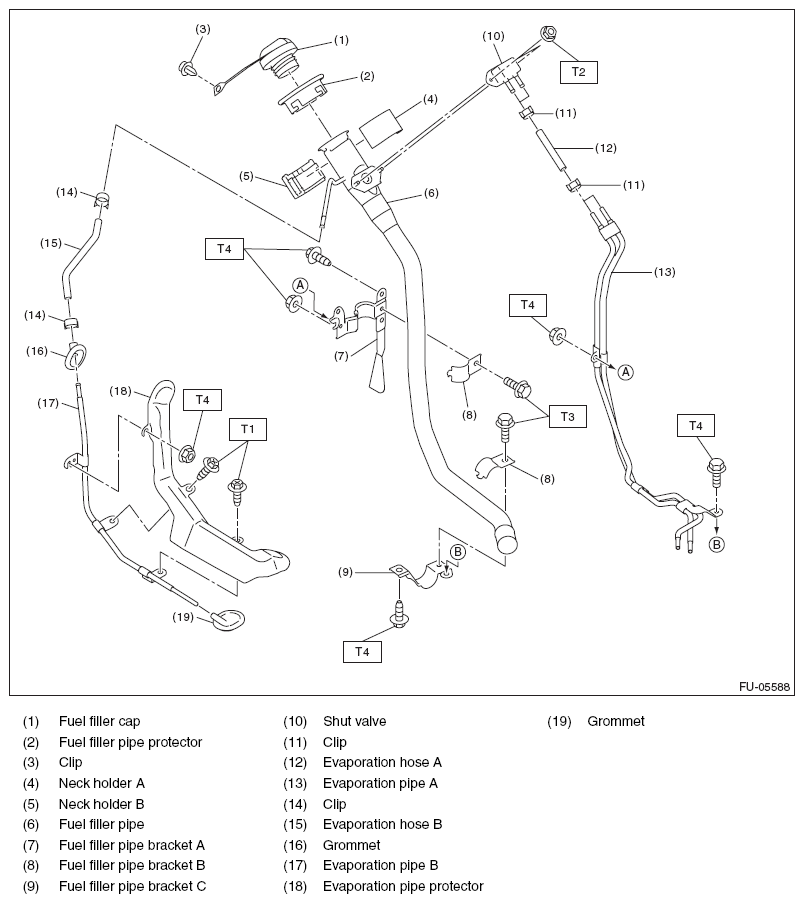

Fig 1: Exploded View Of Fuel Filler Pipe With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1 (0.1, 0.7)

T2: 4.5 (0.5, 3.3)

T3: 7.35 (0.7, 5.4)

T4: 7.5 (0.8, 5.5)
