Keyless Entry System

Keyless Entry System

ELECTRICAL SPECIFICATION

1. KEYLESS ENTRY CONTROL MODULE
- Model without tire pressure monitoring system

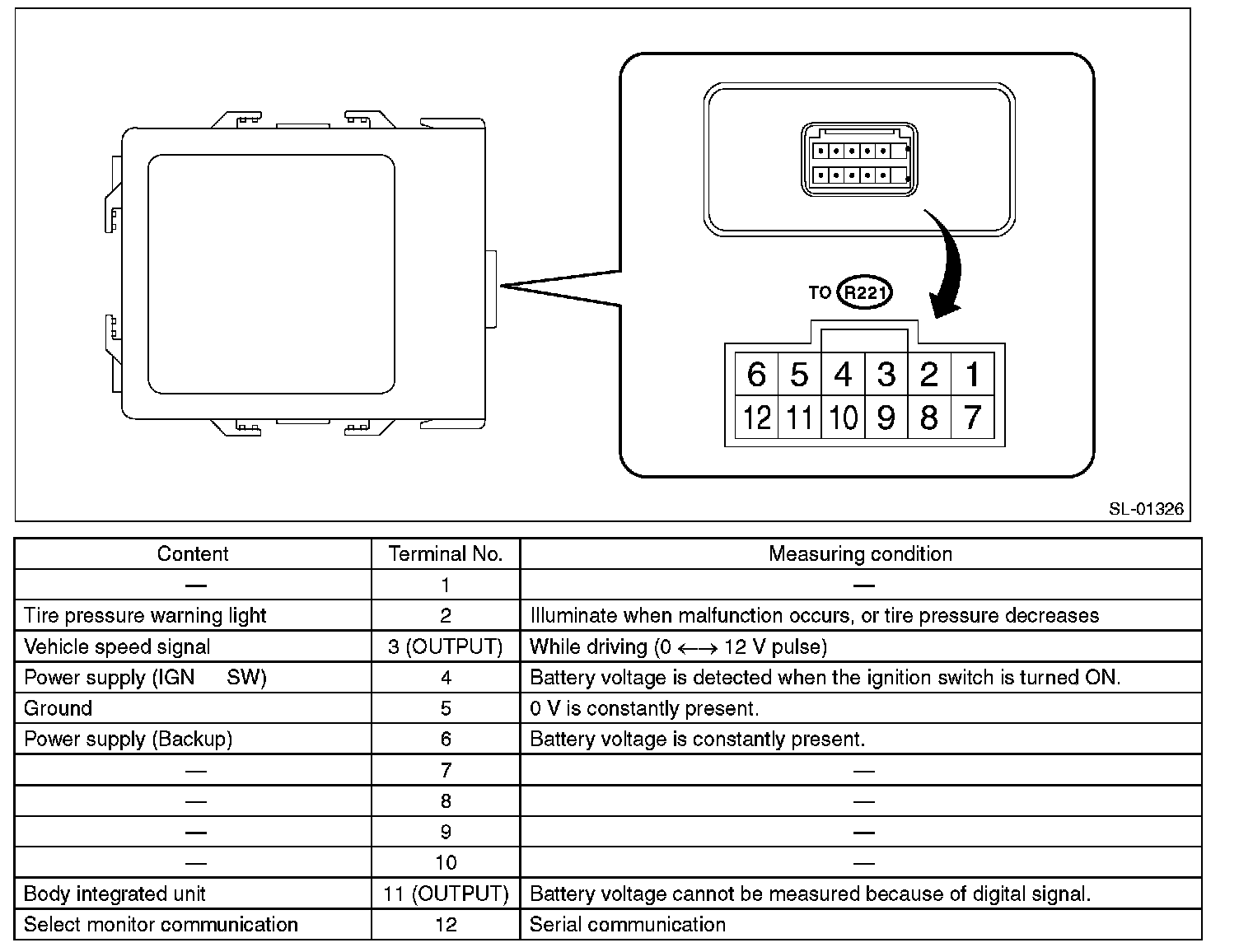

- Model with tire pressure monitoring system

2. BODY INTEGRATED UNIT
Refer to the Control Module I/O Signal of the BODY CONTROL SYSTEM (DIAGNOSIS). Control Module I/O Signal
