Cruise Control Switch: Testing and Inspection

Cruise Control Command Switch

INSPECTION

1. Disconnect the cruise control command switch connector.

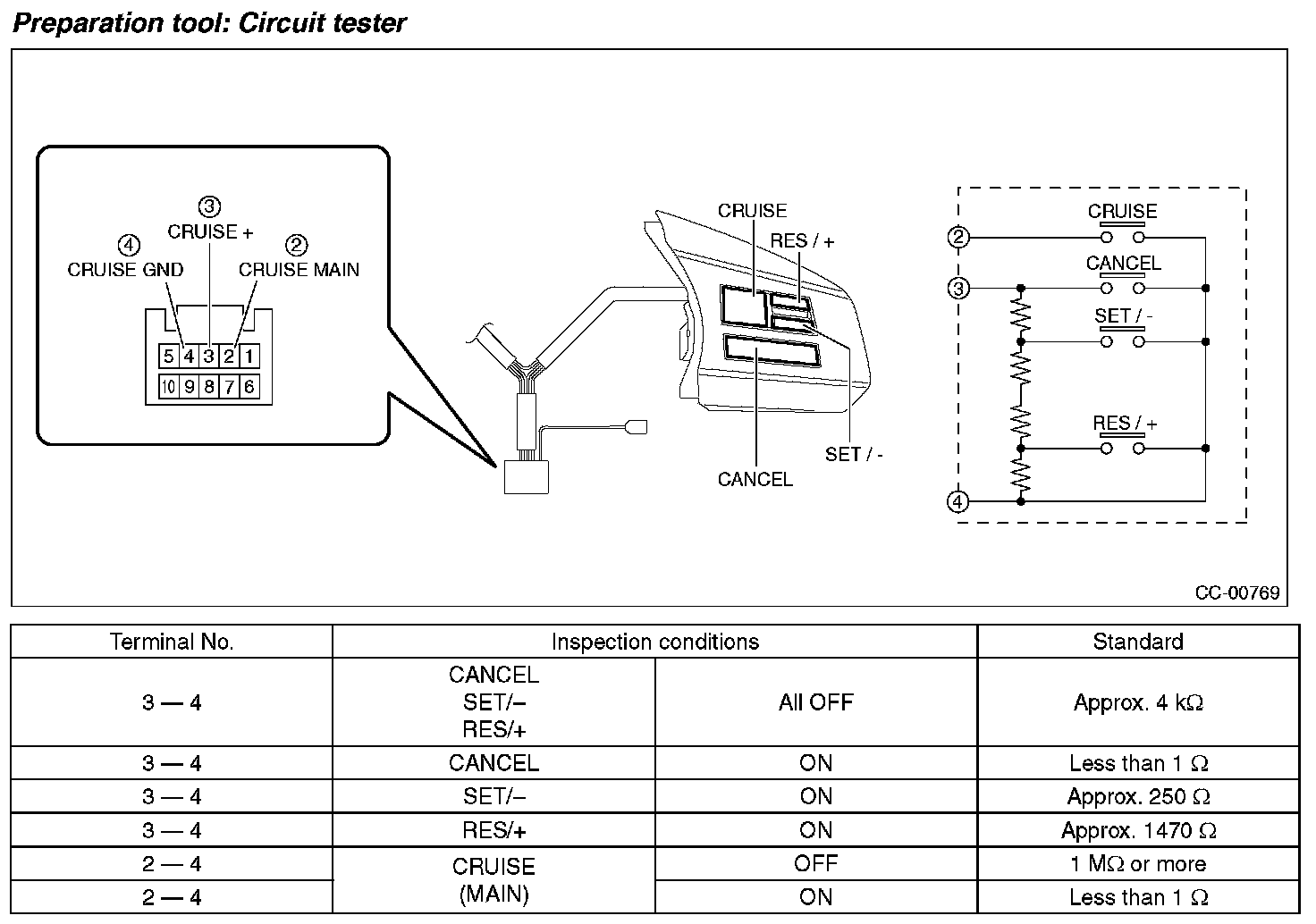

2. Check the resistance between cruise control command switch terminals.

Preparation tool: Circuit tester

3. Replace the cruise control command switch if the inspection result is not within the standard value.
