Locks

General Description

COMPONENT

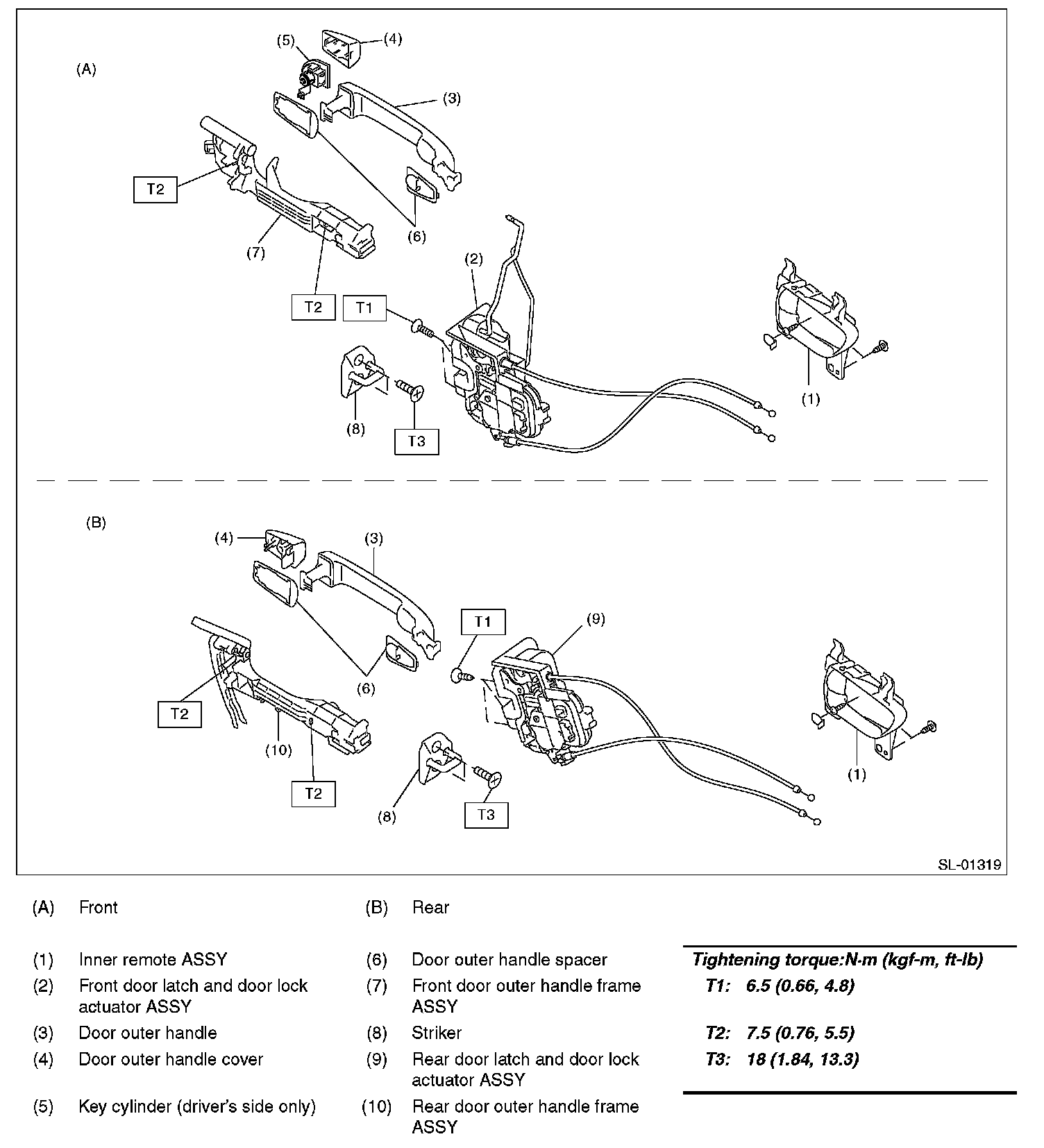

1. DOOR LOCK ASSEMBLY

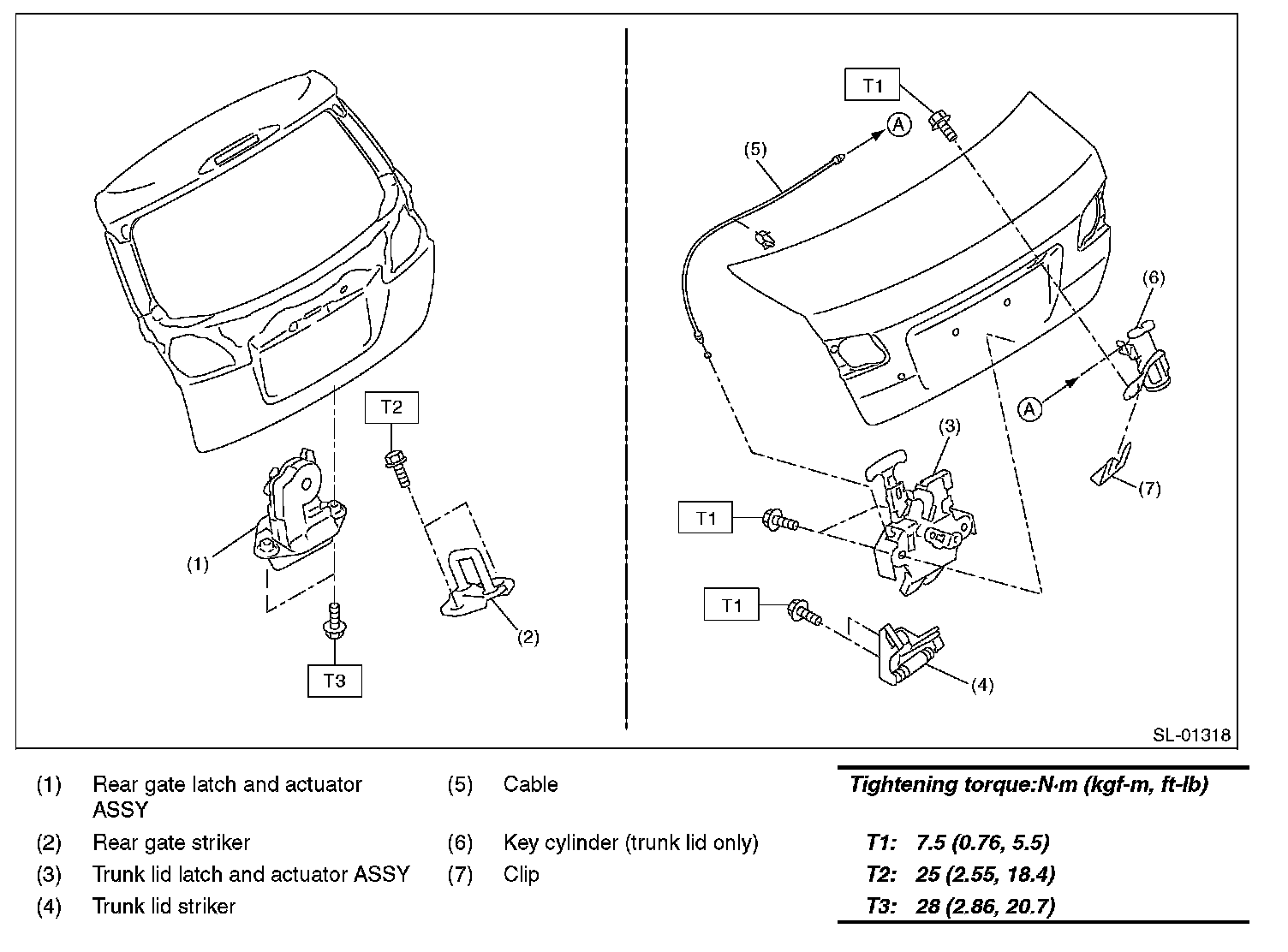

2. REAR GATE LOCK AND TRUNK LID LOCK

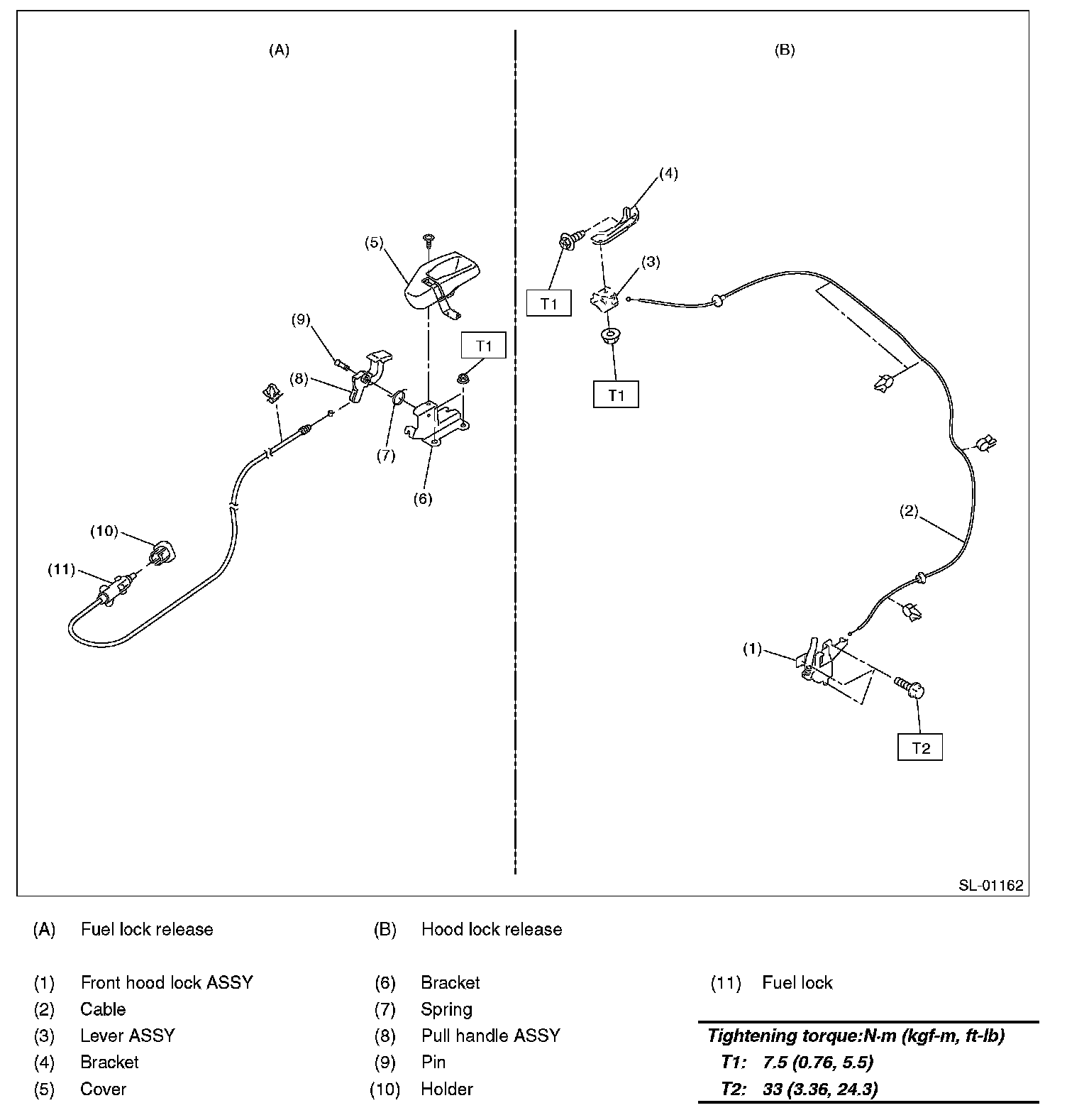

3. FRONT HOOD LOCK AND REMOTE OPENERS

4. KEYLESS ENTRY SYSTEM

5. SECURITY SYSTEM
