Control Assembly: Testing and Inspection

Control Panel

INSPECTION

BLOWER SWITCH (MANUAL A/C MODEL)
1. Remove the control panel.

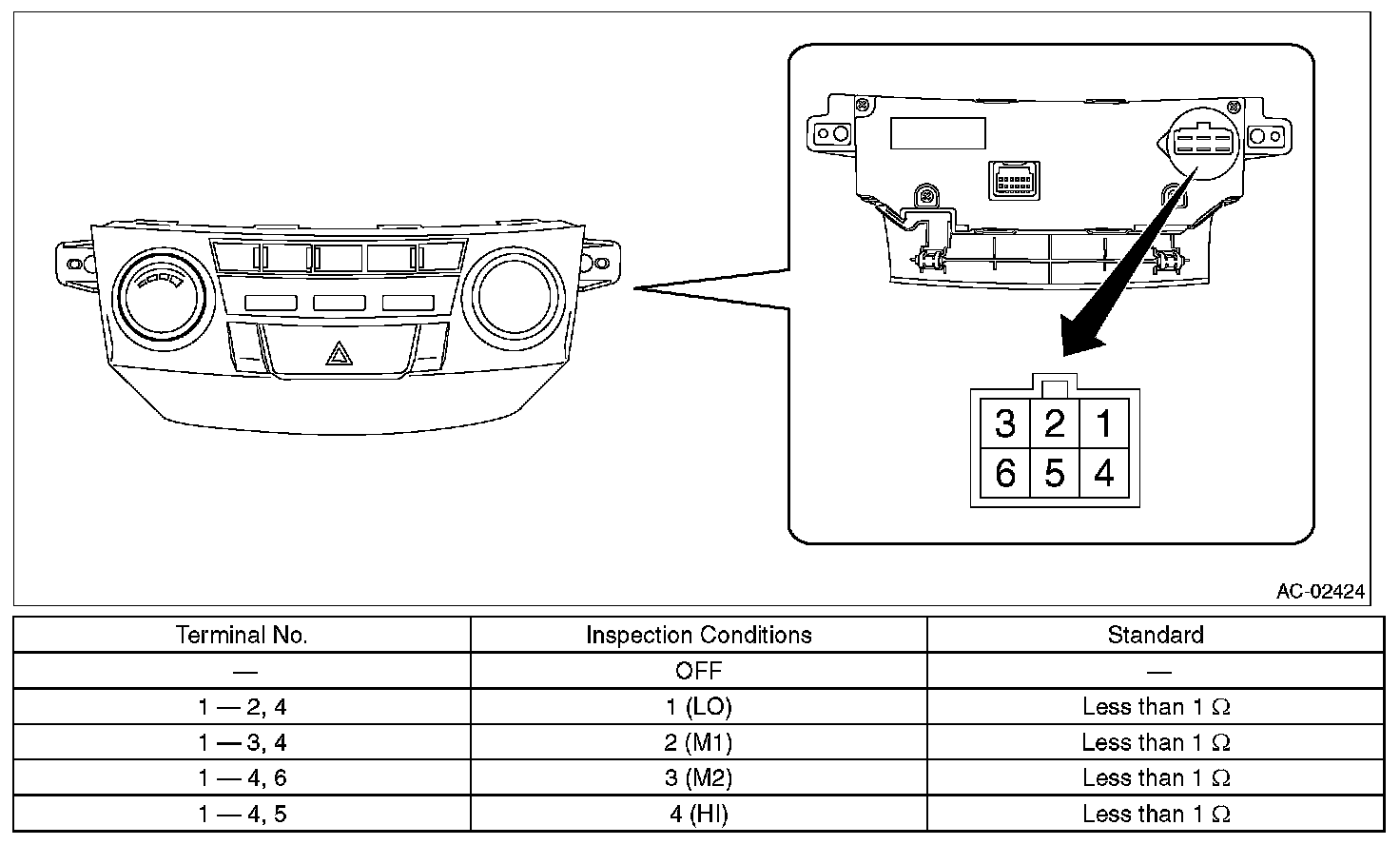

2. Check the resistance between blower switch terminals.

Preparation tool: Circuit tester

3. Replace the control panel if the inspection result is not within the standard value.
