Exploded Views

General Description

COMPONENT

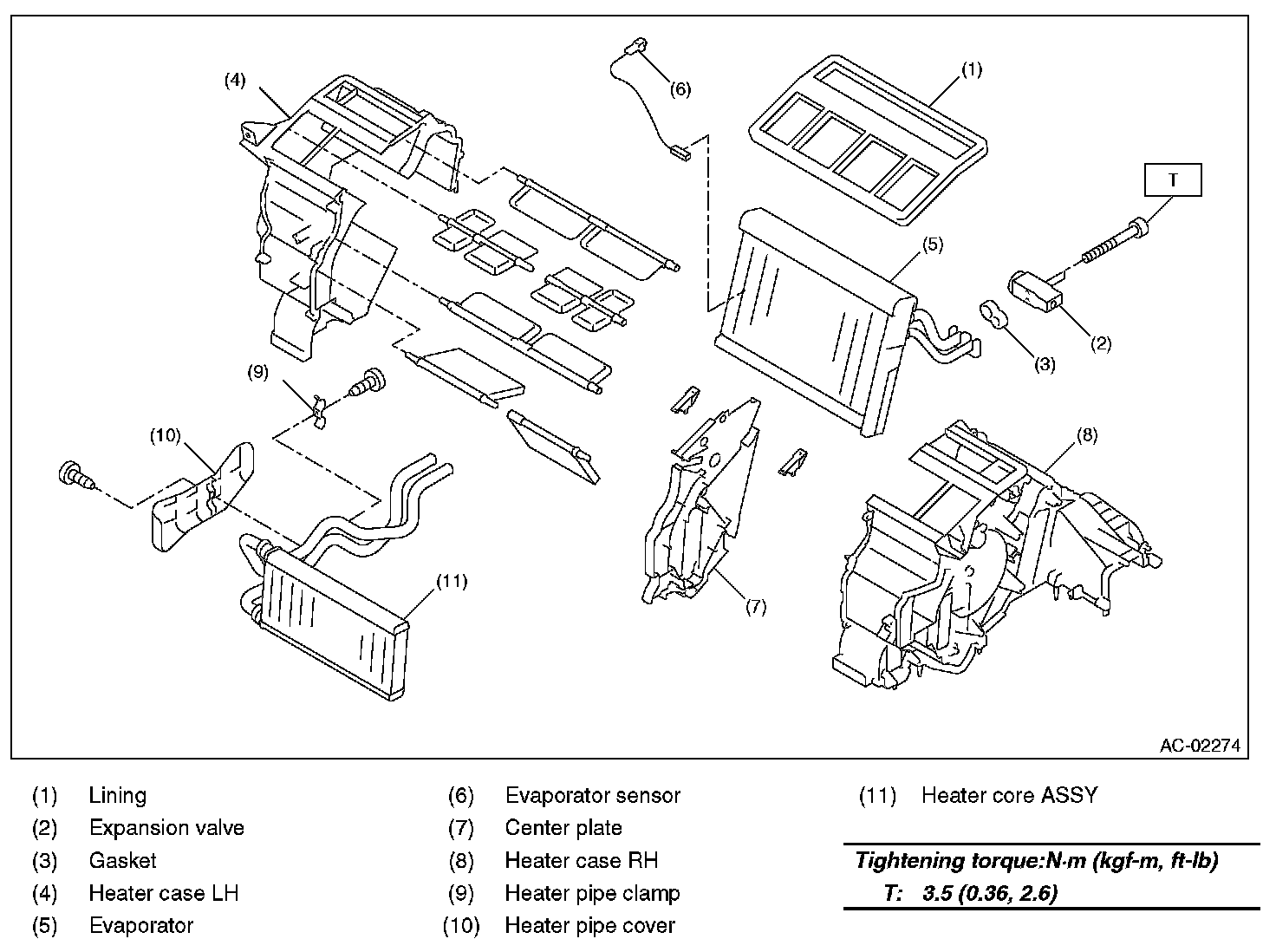

1. HEATER COOLING UNIT

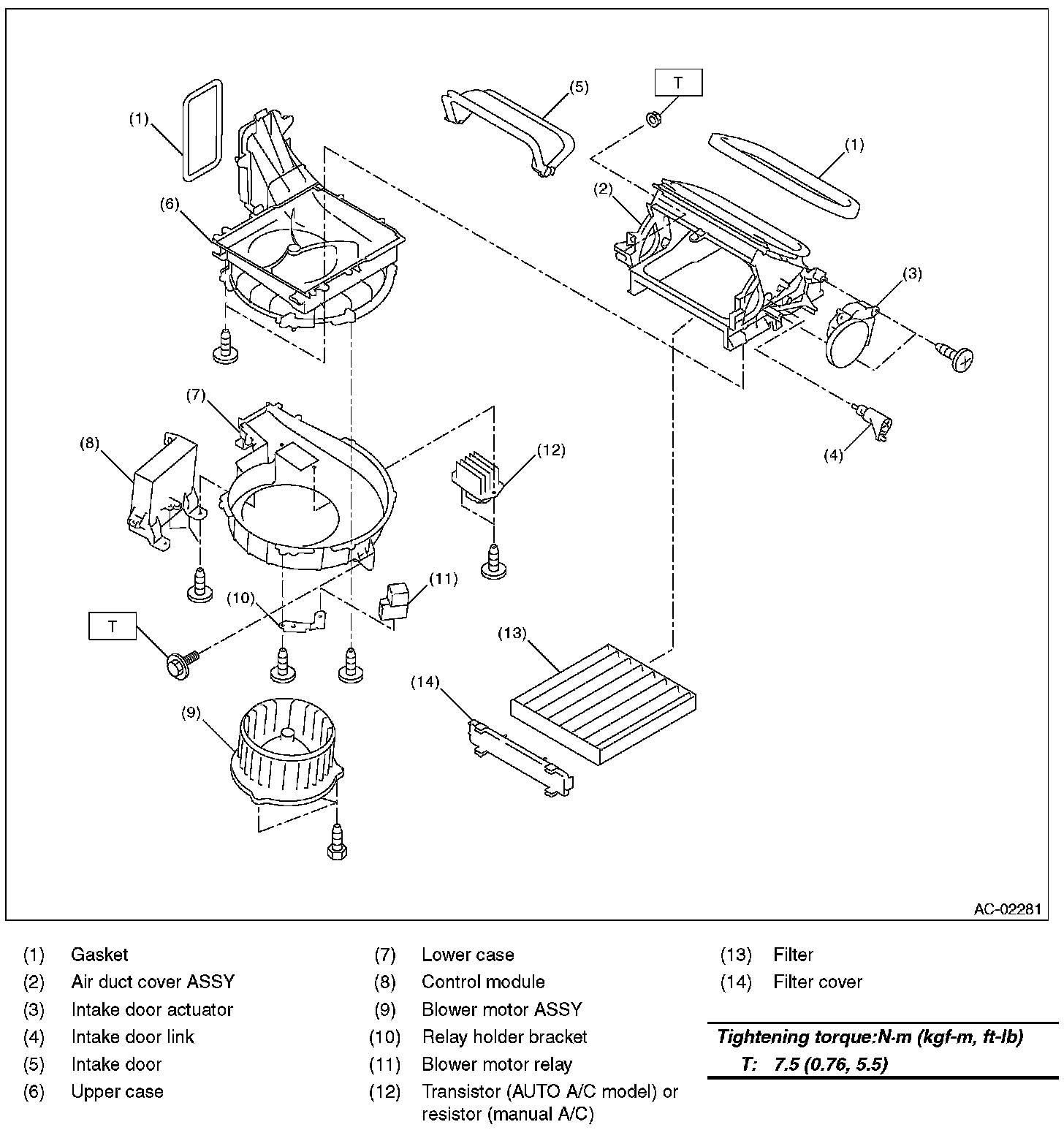

2. BLOWER MOTOR UNIT

3. CONTROL MODULE

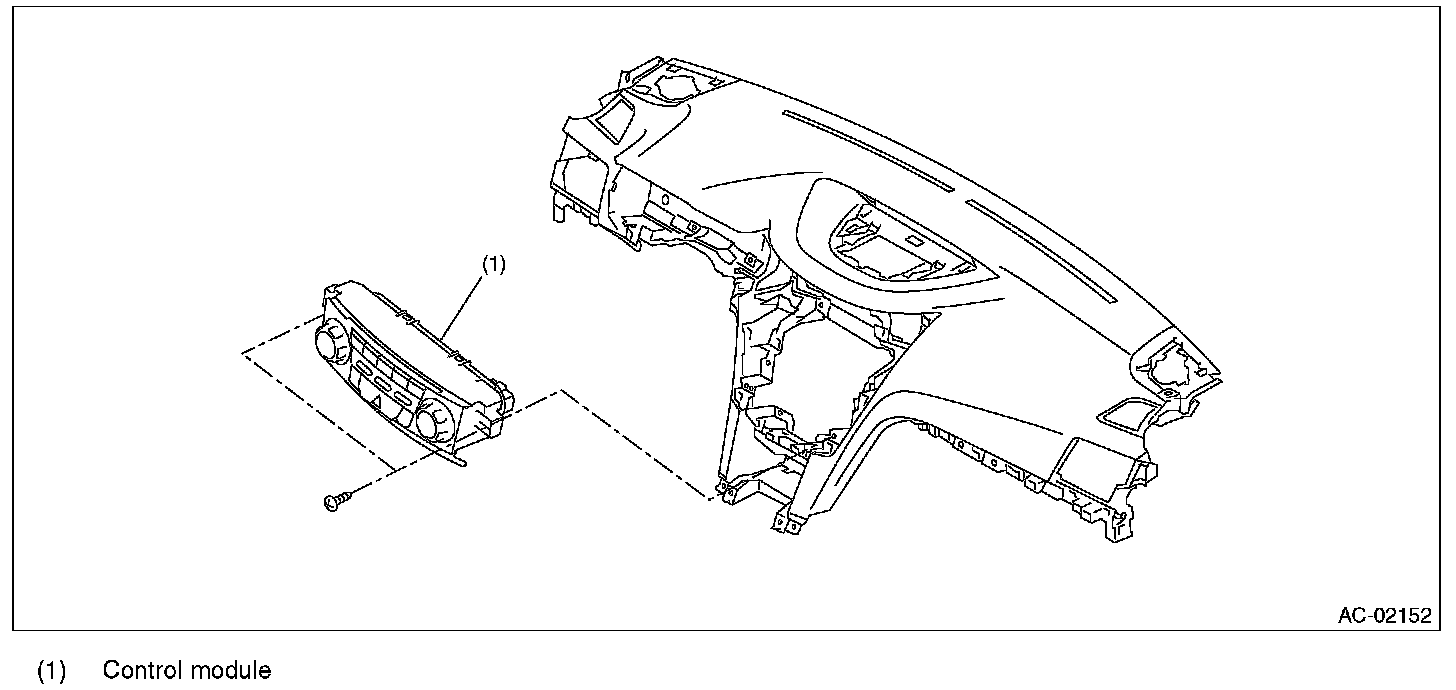

- AUTO A/C MODEL

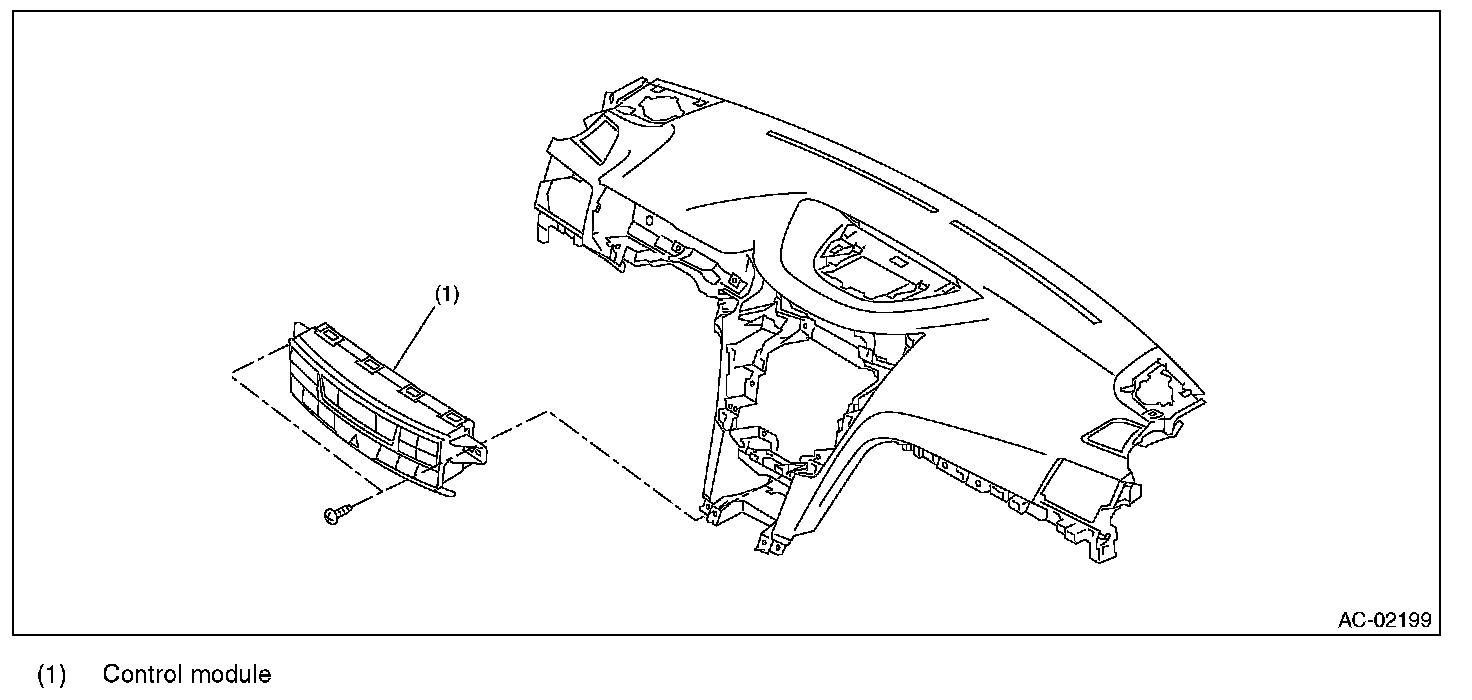

- MANUAL A/C MODEL

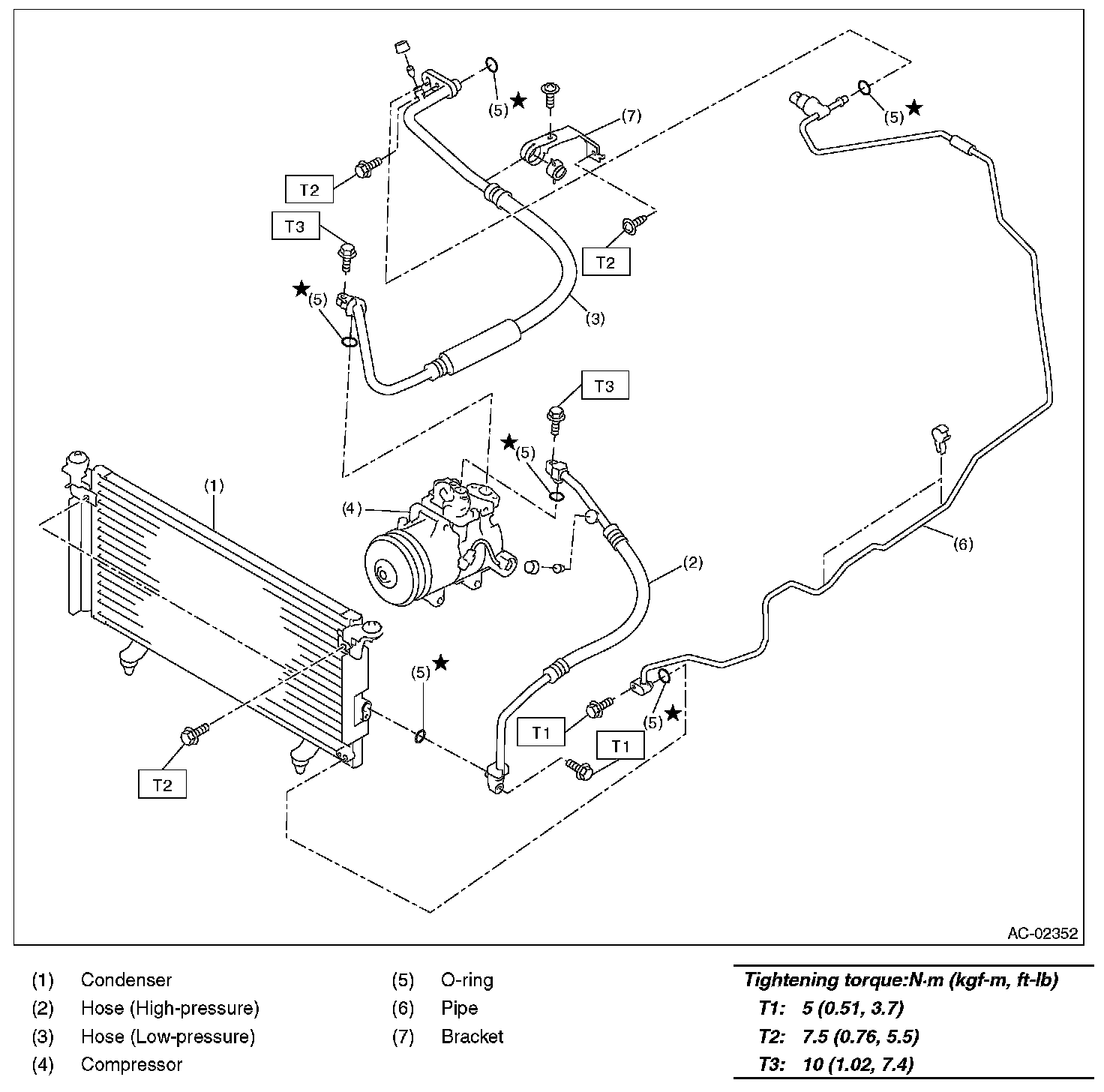

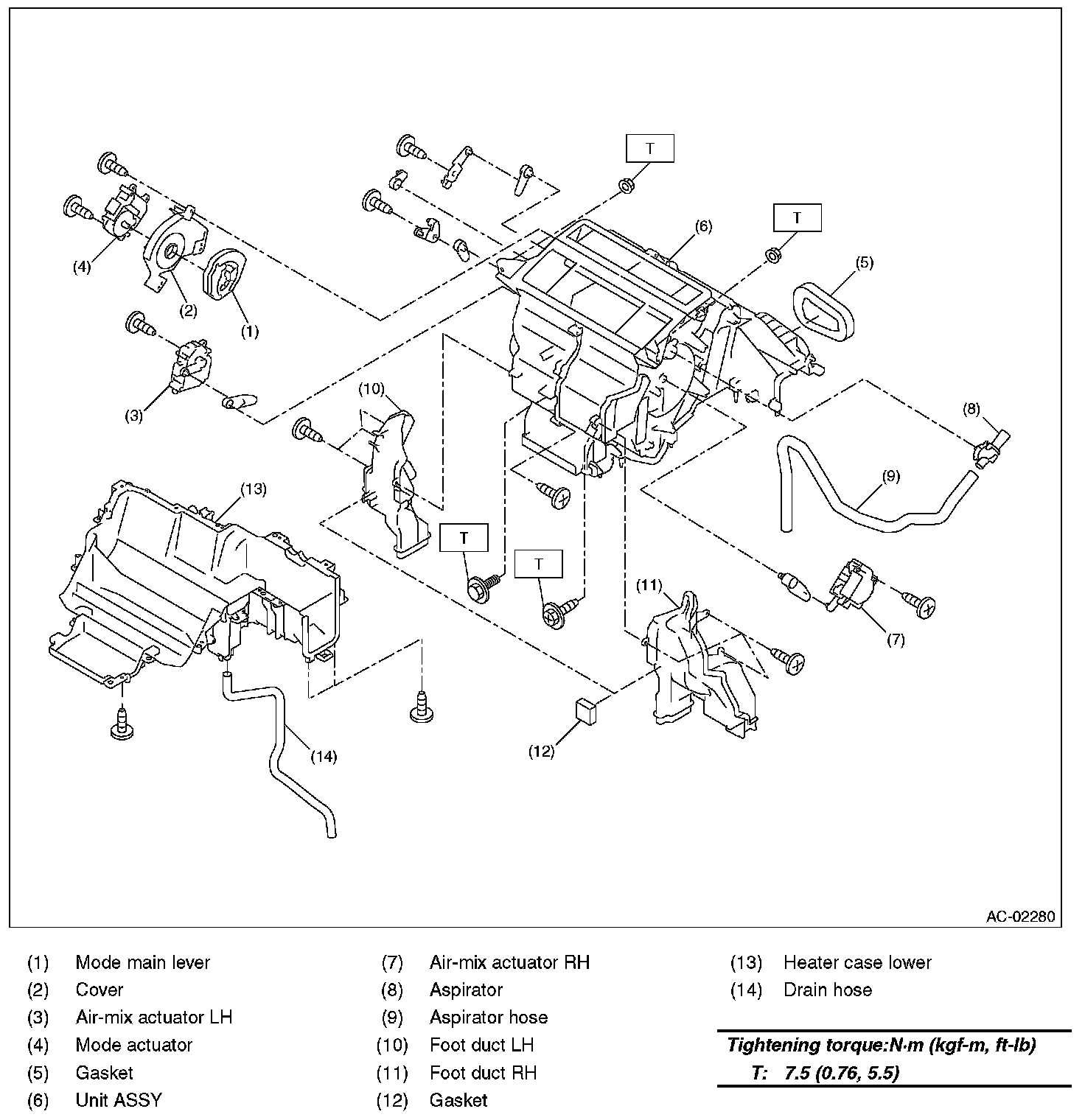

4. AIR CONDITIONING UNIT

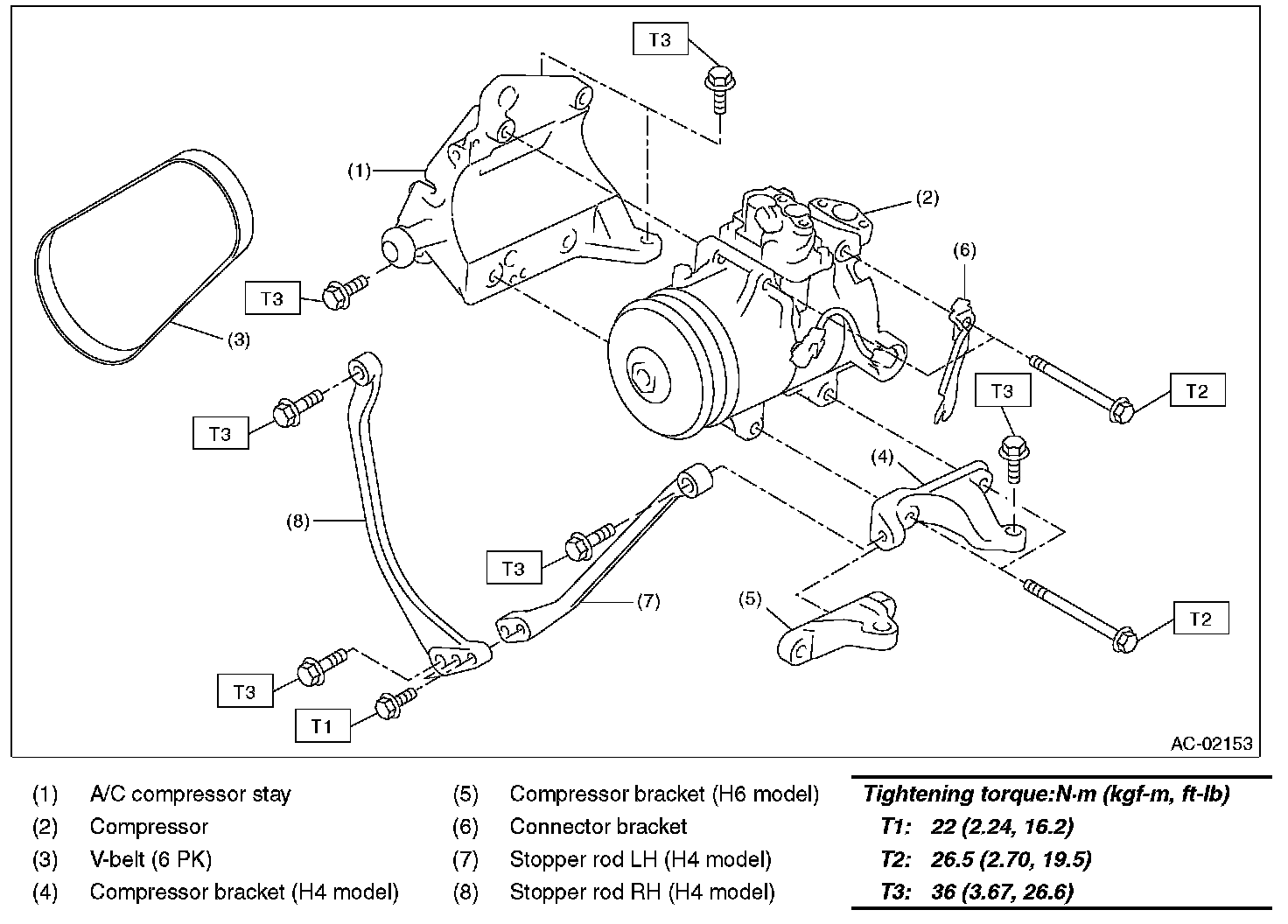

5. COMPRESSOR

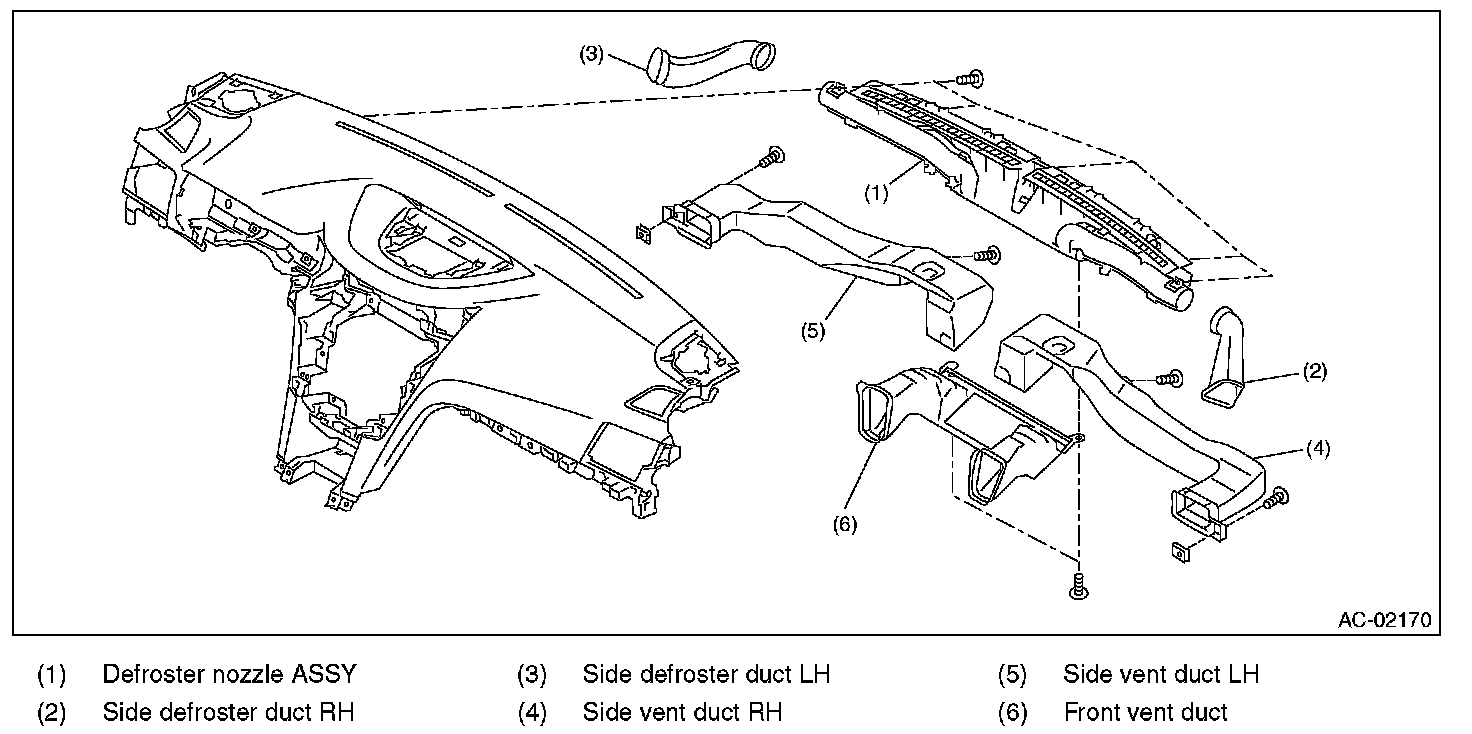

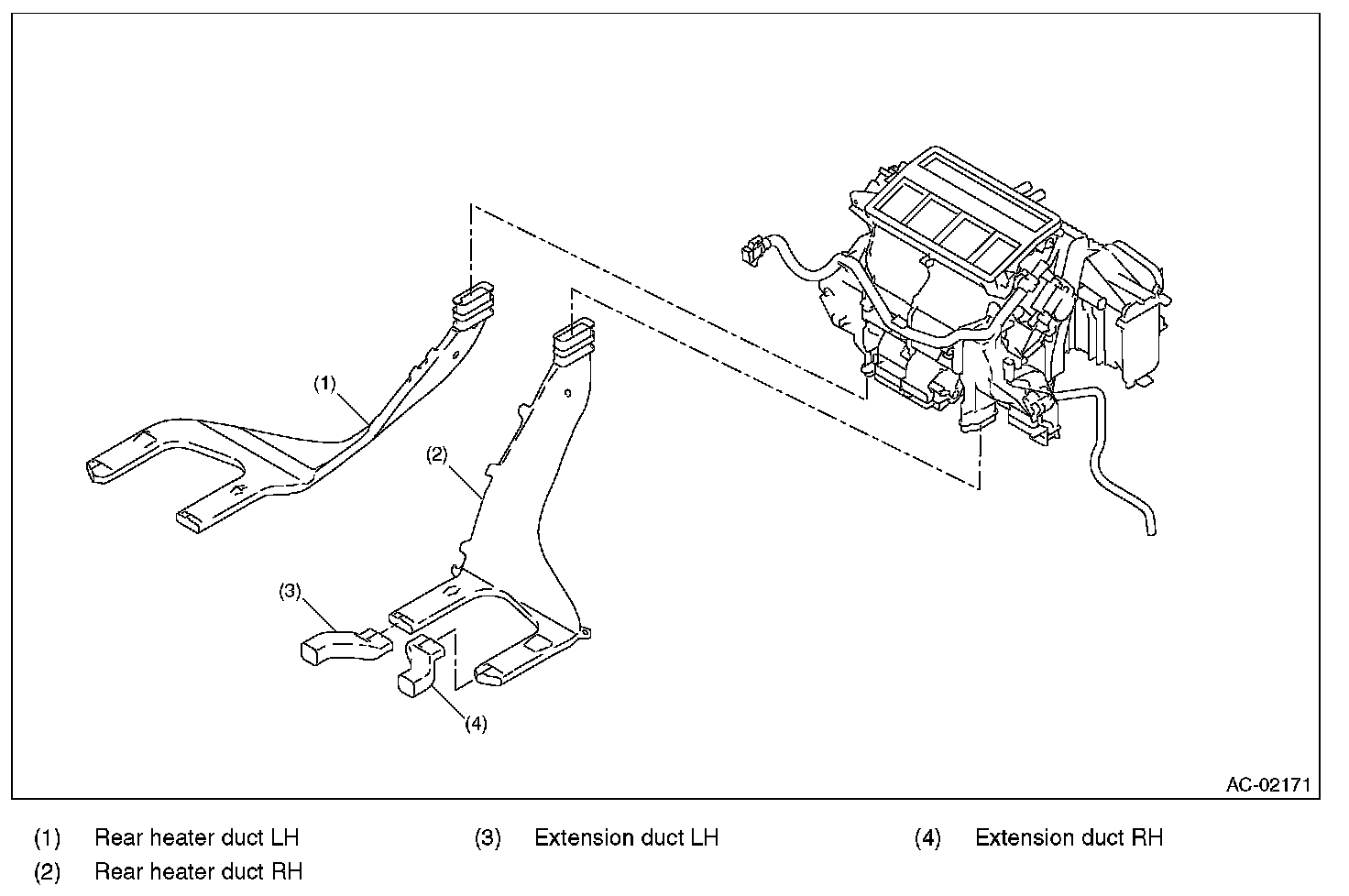

6. HEATER DUCT
