Fuel Sub Level Sensor

Fuel Sub Level Sensor

INSPECTION

1. Check that the fuel sub level sensor has no damage.

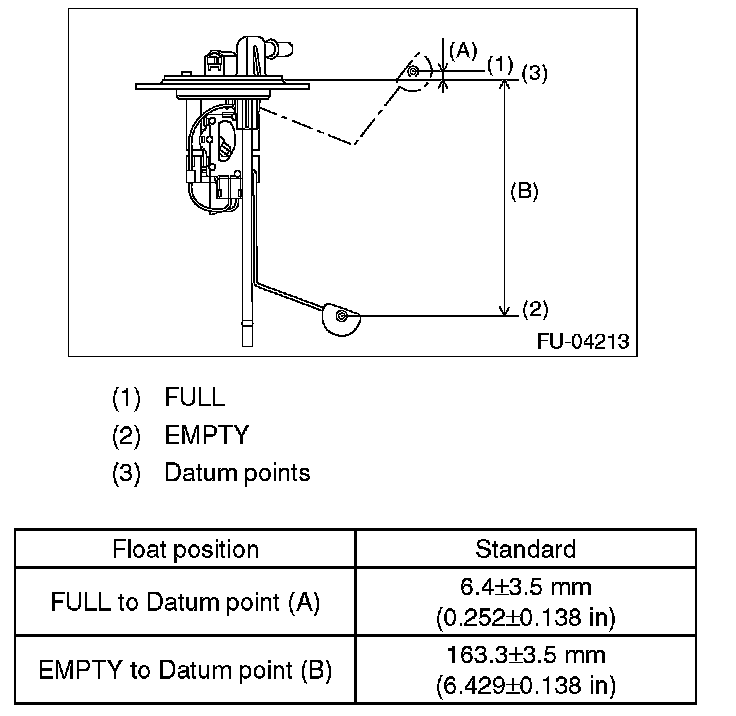

2. Measure the fuel sub level sensor float position.

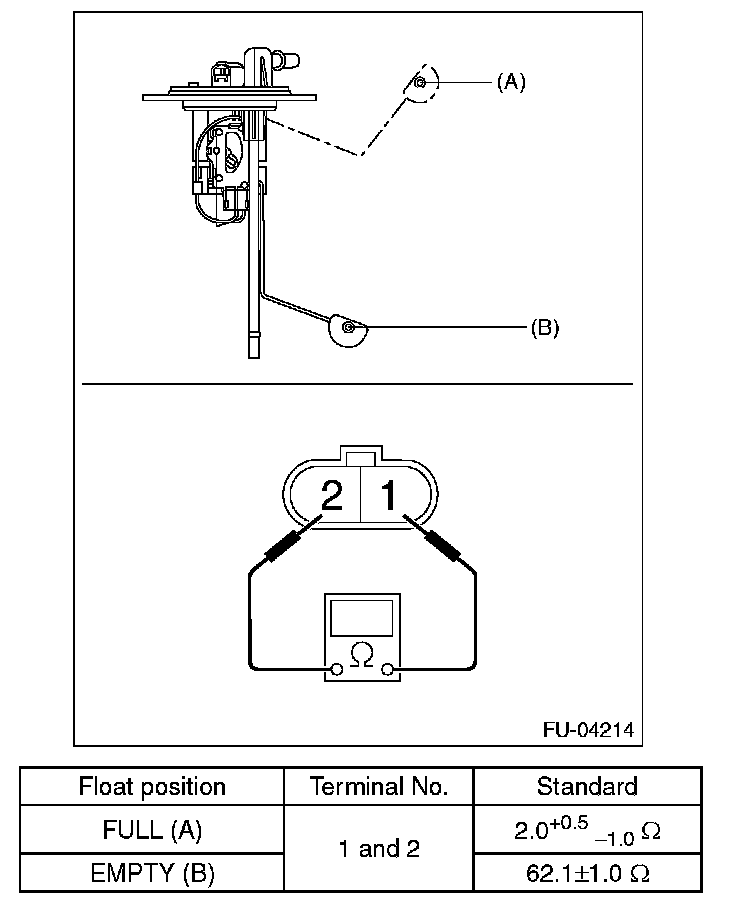

3. Measure the resistance between fuel sub level sensor terminals.
